ABB EA1940 Control and Automation Board - IS2 Enclosures
Part Number: EA1940
Quick Summary
ABB EA1940 is a control and automation board for IS2 enclosures used in industrial automation panels. Engineers often face mounting incompatibilities and delays when back plates and tracks are not preassembled. It ships with a CE Declaration of Conformity IS2, RoHS compliance and REACH information, plus ETIM and eClass classifications to simplify procurement. Designed as a pre-assembled mounting kit with oversized mounting plates, it's built from galvanized steel to improve durability and save installation time. By standardizing mounting geometry and material quality, the EA1940 reduces panel changeouts and supports scalable automation projects across production lines.
Product Information
Extended Description

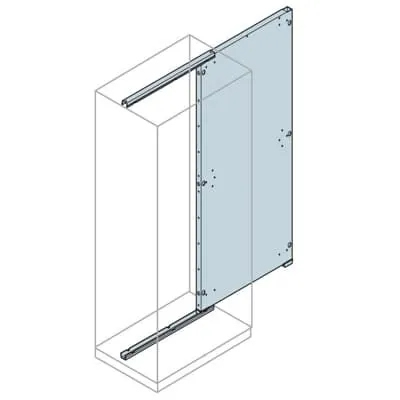

EA1940 ABB: Oversized back plates+tracks 1800x400mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
2. Oversized mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
400 mm
Product Net Height
1700 mm
Product Net Depth / Length
400 mm
Product Net Weight
19.320 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
19.320 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Oversized back plates and tracks (1800x400 mm) ship as a pre-assembled mounting kit, reducing on-site fabrication and accelerating panel builds. This directly improves installation speed and consistency, allowing wiring and component mounting to proceed with fewer retries and alignment errors in IS2 enclosures. The galvanized steel construction delivers robust mechanical stability in vibration-prone automation environments, extending service life and lowering maintenance costs. The kit includes two oversized mounting plates, enabling rapid retrofit or new-build deployments with minimal field adjustment. With reference depths of 400, 500, 600, 800, and 1000 mm, the EA1940 adapts to a wide range of IS2 enclosure configurations, simplifying project scoping and procurement. Compliance with RoHS, REACH, and CE declarations helps satisfy regulatory requirements while reducing risk for regulated industries. The combination of pre-assembled hardware and modular depth options supports scalable automation programs and faster time-to-value for data-driven manufacturing.
Get a Quick Quote for a ABB EA1940
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA1940?
Enquire Now
FAQs
Begin by aligning the oversized back plates to the IS2 enclosure mounting feet, then secure the two pre-assembled mounting plates with the standard fasteners. The kit supports reference depths of 400, 500, 600, 800 and 1000 mm, enabling quick alignment with existing frame dimensions. Verify RoHS/REACH compliance and install CE documentation as part of the build for audit readiness.
Core specs include a 400 mm product width, 1700 mm product height, and a 400 mm depth, with an overall weight of 19.320 kg. The mounting plates are produced from galvanized steel and the kit is offered as pre-assembled with two oversized mounting plates. It is designed for IS2 enclosures and supports automated control and distribution board applications.
Yes. The EA1940 is specifically designed for IS2 Enclosures used in automation, including control and automation boards. Its oversized mounting plates and pre-assembled kit format streamline installation in manufacturing panels, while the galvanized steel construction provides durability in harsh environments. It aligns with ETIM 8/9 classifications and eClass 27400639 for procurement consistency.
The EA1940 includes a CE Declaration of Conformity IS2, RoHS information with a RoHS date of 20250108, and a REACH declaration with a REACH date of 20250108. It is categorized as WEEE non-scope for disposal, and ETIM/eClass classifications are provided to support regulatory and sourcing processes.
The pre-assembled mounting kit reduces installation time and field fabrication, lowering labor costs during panel assembly and retrofits. Its galvanized steel construction offers long-term durability against corrosion and vibration, reducing maintenance cycles. The modular depth options enable scalable deployments across multiple line configurations, accelerating project timelines and improving overall equipment effectiveness (OEE).
