ABB EA1960 Control and Automation Board - IS2 Enclosures
Part Number: EA1960
Quick Summary
ABB EA1960 is a control and automation board kit designed for IS2 enclosures in automation environments. Engineers often contend with oversized back plates and painstaking mounting steps, which can slow panel builds and increase downtime. This pre-assembled mounting kit addresses those challenges by providing oversized mounting plates and ready-to-install tracks that align quickly and stay true under vibration. The solution aligns with CE conformity, RoHS compliance, and REACH declarations, while ETIM and eClass classifications support supplier and component traceability. By combining durable galvanized steel with a streamlined installation workflow, it delivers predictable lead times, lower labor costs, and improved long-term reliability for control and automation panels.
Product Information
Extended Description

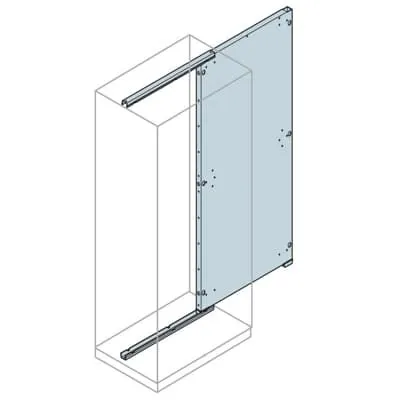

EA1960 ABB: Oversized back plates+tracks 1800x600mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
2. Oversized mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
593 mm
Product Net Height
1698 mm
Product Net Depth / Length
45 mm
Product Net Weight
27.340 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
27.900 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
IS2 enclosure compatibility ensures the EA1960 integrates cleanly with standard automation panels, reducing field fit issues and rework. This compatibility translates to faster commissioning and fewer project delays in factory lines and process plants. The mounting kit comes with pre-assembled tracks and two oversized mounting plates, shortening on-site assembly time and reducing risk of misalignment. In practice, engineers can complete mounting in hours rather than days, lowering labor costs and accelerating time-to-first-production. The use of galvanized steel provides corrosion resistance and structural rigidity in harsh industrial environments, extending panel life and reducing maintenance cycles. Dimensional compatibility is optimized for 593 mm width, 1698 mm height, and 45 mm depth, with reference depths from 400 to 1000 mm to support flexible backplane configurations. Compliance and environmental data, including CE, RoHS, REACH declarations, and WEEE status, support regulatory audits and procurement workflows. Packaging and documentation, such as the IS2 Enclosures Technical Catalogue 2024 and installation reference 1STM604121R0006, facilitate smooth handover to maintenance teams and installers.
Get a Quick Quote for a ABB EA1960
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA1960?
Enquire Now
FAQs
The kit is specifically designed for IS2 enclosures and includes oversized mounting plates and pre-assembled tracks to streamline alignment, reducing on-site fitting time and alignment errors.
Product net width is 593 mm, net height 1698 mm, net depth 45 mm, with a net weight of 27.340 kg; reference depths range from 400 to 1000 mm and the reference height is 1800 mm.
The EA1960 carries CE Declaration of Conformity for IS2, RoHS information with a 20250108 date, and REACH declaration and date; ETIM EC000213 and eClass V11.1 27400639 also apply, along with WEEE status.
Pre-assembled mounting plates and tracks shorten installation time, reduce labor costs, improve mounting rigidity, and provide consistent assembly across panels, lowering maintenance and rework needs over the panel lifecycle.
Best suited for automation control panels in manufacturing and process industries requiring IS2 enclosures with robust mounting options, predictable lead times, and regulatory compliance.
