ABB EA2062 Other/Miscellaneous - CE Declaration RoHS Compliant
Part Number: EA2062
Quick Summary
ABB EA2062 mounting plates enable partial-height mounting for Control and Automation boards in IS2 automation enclosures. This kit addresses the common challenge of integrating multiple control modules within tight cabinet footprints by delivering pre-assembled, adjustable mounting plates. By using a galvanized steel sheet construction, it delivers reliable support in demanding industrial environments. The solution carries CE declarations of conformity, RoHS compliance, and REACH information, with SCIP registrations ensuring regulatory traceability. The EA2062 supports AM2 Cabinets and IP55-enabled IS2 enclosures, making it a practical choice for factory-floor control panels. For procurement teams, the kit reduces field assembly time, lowers mismatch risk, and simplifies spare parts planning while offering scalable mounting options for evolving control architectures.
Product Information
Extended Description

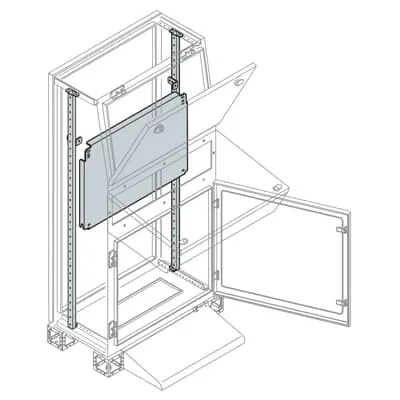

EA2062 ABB: Partial height mounting plate 600x200mm(WxH)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation | C2 Consolle - IP55
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
3. Partial mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
SCIP
e85798cf-f8d0-4145-a904-0ef409dc05e2 Italy (IT)
Simplified SCIP
4167b33f-eacf-4679-88a9-14b812ce0a39 Poland (PL) | a7253b15-6395-4439-8597-065f0ad2a370 Netherlands (NL) | a107aafe-13b9-4568-99d1-452f30547ebf Hungary (HU) | 7466040f-4840-4ad4-98ae-74c3e97085f3 Estonia (EE) | 1c9cbfe7-7b01-4686-9122-ef904c80946d Greece (GR) | 7244d1e2-fec0-4eca-be99-e5e4bc0e7f54 Portugal (PT) | 3d7e0892-07e4-45e1-8c88-f64baf63371b Bulgaria (BG) | e5c43b38-344d-4a76-9bfc-812429ba7728 Sweden (SE) | 7c213802-d265-4091-8db3-922af7ca8917 Poland (PL) | bac8a740-a53d-417c-9cb0-ff92eda77ef8 France (FR) | c0247374-be79-47d8-b868-4febda19f0ba Sweden (SE) | e5ca48ed-3c6b-40be-aba0-a2fedfc4eac1 Germany (DE) | 88471b16-8cf2-4c15-8cdb-dcede7c776f3 Germany (DE) | 5339e615-e5c1-4c2d-afb8-0cb9d4544c25 France (FR) | a3f9665f-8b6c-4f2b-92b6-5ce60bfdf9d3 Hungary (HU) | 6b6aa521-2f77-4e8f-aa16-7dec4ecc1370 Spain (ES) | 1ed07cee-3b56-40ab-9225-0490ab65a670 Belgium (BE) | 5ea734f9-443e-454e-9001-cf28289e39f1 Germany (DE) | 7c29a811-4df2-4072-99d0-143b73cf8771 Poland (PL) | 4a96facc-b63d-494d-810a-a8a6d182e1c9 Norway (NO) | 7a5616a2-6b17-4d4a-a48b-ce8f674ee481 Finland (FI) | eb887a21-01ad-489d-8b6e-734e83c5f3eb Belgium (BE) | 0f9d71eb-a42c-4692-8afe-74a901d7a1e8 Germany (DE) | 2385f254-b80c-4438-ab6d-51c6be448e05 Denmark (DK) | 65697e6e-9f9f-417f-86aa-cadba76b85b7 Germany (DE) | b6e408f6-454d-45be-ab1f-168375f2cf89 Croatia (HR) | b8fc0294-e760-4937-9eb7-cabb256c40ef Czech Republic (CZ)
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
600 mm
Product Net Height
200 mm
Product Net Depth / Length
600 mm
Product Net Weight
2.910 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.970 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Feature: Partial-height mounting plates kit with three plates. Business Impact: Enables modular, scalable panel architecture and reduces on-site assembly time. Application: Ideal for AM2 Cabinets and IS2 Enclosures for Automation in automation-driven facilities. Feature: Galvanized steel construction. Business Impact: Delivers durable, corrosion-resistant support in harsh manufacturing environments. Application: Suitable for IP55-rated C2 Consolle configurations and outdoor or wash-down areas. Feature: Kit / Pre-assembled mounting type. Business Impact: Minimizes field wiring adjustments and installation risk, speeding up deployment. Application: Great for rapid upgrades in evolving control architectures without chassis rework. Feature: Defined reference depths and standard dimensions. Business Impact: Ensures compatibility with reference depths 300–1000 mm and a fixed 600 mm width, reducing engineering time. Application: Smooth integration with IS2 and AM2 cabinet systems. Feature: Compliance and traceability. Business Impact: Meets RoHS, REACH, and SCIP requirements, lowering regulatory risk and lifecycle costs. Application: Suitable for regulated industries such as manufacturing and process automation. Long-tail keywords integrated: ABB EA2062 mounting plates, partial-height mounting plate, IS2 Enclosures for Automation, AM2 Cabinets compatibility, galvanized steel mounting plates, pre-assembled mounting solution for distribution boards, CE RoHS REACH SCIP compliance.
Get a Quick Quote for a ABB EA2062
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA2062?
Enquire Now
FAQs
Yes. EA2062 is designed for AM2 Cabinets and IS2 Enclosures for Automation, including IP55-rated C2 Consolle configurations. The kit includes three partial mounting plates that are pre-assembled, enabling faster integration with ABB control systems and alignment with standard reference depths.
Key specifications include Product Net Width 600 mm, Product Net Height 200 mm, Product Net Depth 600 mm, and Product Net Weight 2.910 kg. The package level is 1 piece with a gross weight of 2.970 kg, and three partial plates are provided in this kit.
EA2062 is suitable for AM2 Cabinets and IS2 Enclosures for Automation, including C2 Consolle configurations rated to IP55. It is aimed at industrial automation panels that require modular, durable mounting solutions with RoHS and REACH compliance.
EA2062 carries a CE Declaration of Conformity, is RoHS compliant, and provides REACH information indicating no substances above threshold. SCIP registrations ensure regulatory traceability across multiple regions, supporting compliance in regulated industries.
By delivering a pre-assembled, modular mounting kit with standardized dimensions, EA2062 minimizes on-site labor, accelerates deployment, and reduces parts mismatches. Its galvanized steel construction offers durability, lowering replacement costs, while regulatory compliance reduces risk during audits and inspections.
