ABB EA2080 Mounting Plate for AM2/IS2 Enclosures - RoHS
Part Number: EA2080
Quick Summary
ABB EA2080 mounting plate for AM2 cabinets and IS2 enclosures enables reliable, pre-assembled mounting for automation panels. Engineers often face assembly delays and compatibility gaps when retrofitting control cabinets. This solution carries CE conformity (IS2), RoHS compliance with the 20250108 date, REACH declarations, and ETIM EC000213 classification, ensuring regulatory alignment and standardized parts. The galvanized steel construction resists corrosion in demanding factory environments, while the 2000x800 mm footprint supports a consistent, scalable layout. By standardizing mounting hardware, you reduce field variability, simplify procurement, and lower total cost of ownership across multi-site automation projects. Compatibility with AM2 and IS2 platforms translates to shorter installation times and improved spare-parts planning, delivering predictable performance for control and automation boards.
Product Information
Extended Description

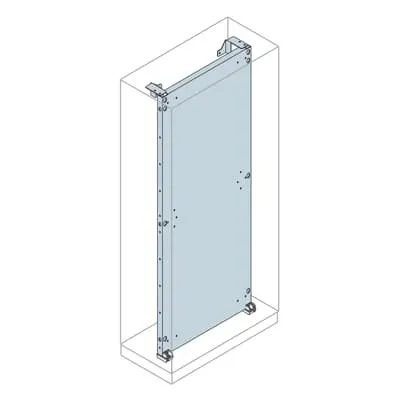

EA2080 ABB: Mounting plate 2000x800mm (HxW)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
1. Standard mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
691 mm
Product Net Height
1874 mm
Product Net Depth / Length
30 mm
Product Net Weight
29.90 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
30.800 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
The galvanized steel mounting plate provides robust corrosion resistance in harsh factory environments, extending service life and reducing maintenance costs; the pre-assembled kit design shortens installation time and minimizes on-site welding or drilling, enabling faster project start-ups and lower labor expense. The 2000x800 mm footprint aligns with standard IS2/AM2 mounting schemas, while the reference width of 800 mm and height of 2000 mm support consistent, repeatable layouts across multiple control panels. Optional reference depths of 400–1000 mm offer flexibility to fit varying equipment stacks without custom fabrication, reducing inventory diversity and improving procurement efficiency. Compliance with RoHS, REACH, CE, and ETIM EC000213 ensures regulatory alignment and easier parts sourcing, while WEEE status confirms proper lifecycle handling. The kit includes one standard mounting plate as part of the kit, simplifying ordering and installation.
Get a Quick Quote for a ABB EA2080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA2080?
Enquire Now
FAQs
The EA2080 is designed as a kit or pre-assembled mounting plate for AM2 cabinets and IS2 enclosures. Follow the installation instructions in 1STM604121R0006 to align and secure the plate to the cabinet frame, then attach standard mounting rails or panels. The galvanized steel construction provides robust support, minimizing field adjustments and rework while ensuring safe, repeatable mounting for control boards.
EA2080 is compatible with AM2 Cabinets and IS2 Enclosures for Automation. This pairing ensures a standardized mounting footprint and fitment across automation panels, streamlining procurement and sparing parts management while maintaining alignment with ETIM EC000213 classifications.
EA2080 carries CE conformity as part of the IS2 declaration, RoHS compliance dated 20250108, and a REACH declaration confirming no substances above 0.1 mass percent. ETIM classifications EC000213 are listed for mounting plates in distribution boards, and the product is aligned with WEEE expectations. These certifications simplify regulatory clearance and supplier qualification for automated systems.
Key specifications include a product net width of 691 mm, height of 1874 mm, and depth of 30 mm, with a reference height of 2000 mm and reference width of 800 mm. The reference depth options span 400–1000 mm, and the product weight is 29.90 kg. The footprint supports a 2000x800 mm overall envelope for consistent installation across panels.
EA2080 delivers faster install times through a pre-assembled kit, reduces field variability by standardizing mounting across AM2 and IS2, and lowers total cost of ownership via improved spare-parts planning. Its robust galvanized steel construction enhances durability in industrial environments, while compliance certifications simplify procurement and regulatory readiness for automation projects.
