ABB EA2081 Mounting Plate - RoHS Compliant
Part Number: EA2081
Quick Summary
ABB EA2081 Mounting Plate is a mounting kit for control and automation boards used with AM2 cabinets and IS2 enclosures. Engineers often struggle with limited mounting options and misalignment when upgrading automation panels. This solution is CE certified, RoHS compliant, and SCIP registered, providing regulatory traceability and safe material handling for modern automation projects. By delivering a pre-assembled kit with partial mounting plates, it reduces on-site fabrication time while ensuring robust alignment and long-term reliability. For procurement, the kit integrates smoothly with ABB IS2 and C2 Consolle configurations, supporting streamlined installation and predictable maintenance budgets.
Product Information
Extended Description

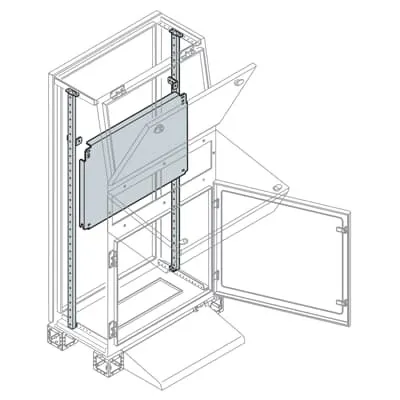

EA2081 ABB: Partial height mounting plate 800x200mm(WxH)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation | C2 Consolle - IP55
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
3. Partial mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
SCIP
eaec9431-0a19-4509-bcf8-3848989ac606 Italy (IT)
Simplified SCIP
559f5dc7-8ca3-452b-9307-59938d3f84f8 Germany (DE) | 09834a1b-c60e-4756-ae51-3f5fef4e6785 Sweden (SE) | b6435e86-6dda-4507-bc99-fbc76cbcd00e Germany (DE) | 8cbbfa44-7483-48cf-9ad6-a48395151611 Spain (ES) | 18f46089-03f7-47f7-a2c1-d9c68e2332a9 Belgium (BE) | 5ba38c8d-d6b5-453f-a1e4-2f3345ab3f17 France (FR) | 04c8241a-415e-4c94-87a6-0b6eaf8fe658 Hungary (HU) | eba8439b-0c98-43b3-81c7-40270bae7469 Czech Republic (CZ) | a17d365e-daac-449b-bf6b-56a2e27370c3 Poland (PL) | 0b90b05b-b24e-4733-adc4-ea463c0960c1 Germany (DE) | a99d83f5-6a5a-4f4c-b087-27773c23e693 Croatia (HR) | 60e8fa03-71f1-43cf-8fc3-b8d0b8da2fb9 Germany (DE) | a3d23702-2f74-4595-83ad-a288dd263d84 Denmark (DK) | 2b948643-f581-4371-8f54-d2626569db13 France (FR) | ba9a6659-0d40-4719-8278-b06a8d0afd3f Sweden (SE) | cebd6eac-9bdd-4cf4-9545-2969505f98ad Poland (PL) | fa559c2a-5f7e-4857-ae81-9dc154c35115 Portugal (PT) | 73453d52-ba0f-410d-9722-8ac3d6d28ae1 Bulgaria (BG) | 79d5b54e-69d2-414c-87f1-e716ef21a85a Estonia (EE) | f8ca8cd1-a6d7-4d7b-8251-0b54a3275f30 Greece (GR) | 1a869b5d-ac90-4af8-8b56-77978357c2d8 Netherlands (NL) | d840f9eb-c3b8-4aee-94ff-d04f664ca489 Hungary (HU) | f17ec23a-c681-4aaa-8cb6-7b588218e7ab Finland (FI) | d71d683c-e584-4db8-8271-8d5556125f50 Belgium (BE) | f1e4bbb6-8d07-42c4-bea1-a88c2c478336 Germany (DE) | 57a553dc-4575-4520-90b4-dc541153a1f4 Poland (PL) | ee4ed2ab-56e0-4dd1-a2bb-55239ba2dea6 Norway (NO)
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
800 mm
Product Net Height
200 mm
Product Net Depth / Length
800 mm
Product Net Weight
3.880 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.960 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Feature: Kit-based mounting solution with pre-assembled options. Business Impact: Accelerates installation and reduces field modification costs. Application: Ideal for AM2 cabinets and IS2 enclosures in automation projects. Feature: Galvanized steel construction. Business Impact: Delivers corrosion resistance and durable performance in harsh environments. Application: Suitable for industrial control panels and distribution boards. Feature: Flexible depth and height options (reference depths 300–1000 mm; reference heights 1400–2200 mm). Business Impact: Improves planning accuracy and fit across a family of cabinets. Application: Supports scalable deployments with consistent mounting geometry. Feature: Includes partial mounting plates (three provided). Business Impact: Minimizes material waste and eases customization. Application: Fast-track retrofits and panel upgrades. Feature: Compliance and declarations (RoHS, REACH, SCIP, CE). Business Impact: Ensures regulatory alignment and risk reduction in supplier audits. Application: Critical for regulated industries and global supply chains. Feature: Compatibility with AM2, IS2, and C2 Consolle IP55. Business Impact: Reduces integration risk and simplifies spare parts planning. Application: Suitable for a wide range of ABB automation installations.
Get a Quick Quote for a ABB EA2081
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA2081?
Enquire Now
FAQs
The EA2081 kit is a pre-assembled mounting plate option designed for compatibility with AM2 cabinets and IS2 automation enclosures. It includes three partial mounting plates to adapt to project-specific depths (300–1000 mm) and heights (1400–2200 mm). Begin by aligning the plate with cabinet mounting rails, secure with standard fasteners, and attach any required subassemblies. The kit’s galvanized steel construction supports durable field mounting and simplifies onboarding for technicians.
EA2081 features a product net width of 800 mm, net height of 200 mm, and net depth of 800 mm. Reference depth options include 300, 400, 500, 600, 800, and 1000 mm, while reference heights span 1400 to 2200 mm. The product net weight is 3.880 kg, and the packaging level is 1 unit per box, with a gross pack weight of 3.960 kg.
Yes. EA2081 is listed as suitable for AM2 Cabinets, IS2 Enclosures for Automation, and C2 Consolle with IP55 protection. Its mounting plates are designed to support robust automation panels in environments requiring IP55-rated enclosures, aligning with ABB IS2 catalogue guidelines.
EA2081 carries CE declarations of conformity, RoHS compliance (RoHS date 20250108), REACH declarations, and SCIP registrations. It also notes WEEE status as Product Not in WEEE Scope. These certifications affirm regulatory compliance, material traceability, and responsible end-of-life handling, which streamline supplier audits and help ensure supply-chain integrity for regulated industries.
EA2081 delivers measurable value through faster installation due to a kit-based approach, reduced field fabrication, and standardized mounting across cabinet families. The galvanized steel construction enhances longevity, lowering maintenance costs, while compliance (CE, RoHS, REACH, SCIP) reduces regulatory risk. Overall, it supports shorter project lead times and lower total cost of ownership in automated distribution-board installations.
