ABB EA2101 Mounting Plates Kit - CE Declaration
Part Number: EA2101
Quick Summary
ABB EA2101 Mounting Plates Kit enables ready-to-install mounting for IS2 Enclosures in automation control panels. Engineers often struggle with misaligned mounting hardware and time-consuming assembly when upgrading control panels. This kit carries CE declaration of conformity, RoHS compliance dated 2025-01-08, and REACH declarations, underscoring regulatory alignment for modern plant builds. For IS2 enclosures used in automation projects, the galvanized steel mounting plates provide robust support and precise fit across reference depths and heights. By using pre-assembled kit configurations, buyers reduce installation time, improve panel reliability, and lower total cost of ownership while meeting stringent industry standards. This option is particularly valuable for panel builders and systems integrators seeking predictable, repeatable mounting solutions.
Product Information
Extended Description

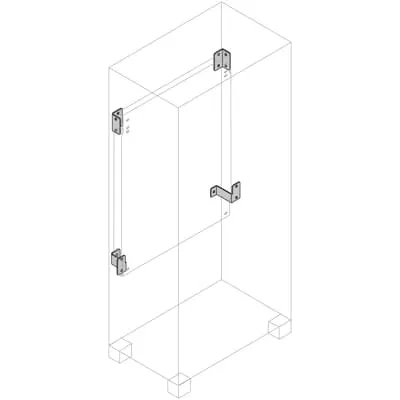

EA2101 ABB: Kit for moving partial back plates backmm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
3. Partial mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
120 mm
Product Net Height
50 mm
Product Net Depth / Length
120 mm
Product Net Weight
0.270 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.280 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Pre-assembled mounting plates kit for IS2 automation enclosures reduces assembly steps and alignment risk, accelerating panel builds and commissioning. The galvanized steel construction delivers robust support with corrosion resistance, lowering maintenance and enhancing service life in harsh environments. Flexible compatibility across reference depths (300–1000 mm), heights (1400–2200 mm), and widths (400–1200 mm) enables rapid retrofits and scalable installations for growing automation projects. Compliance-ready features—RoHS, REACH, and CE declarations—minimize regulatory risk and simplify procurement audits while supporting standard data exchanges via ETIM and eClass classifications. Lightweight packaging (1 piece per unit, ~0.270 kg) and a straightforward mounting workflow translate to lower logistics costs and faster project turnaround. Documentation, including installation instructions (1STM604121R0006) and the IS2 Enclosures Technical Catalogue 2024, improves field readiness and on-site safety.
Get a Quick Quote for a ABB EA2101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA2101?
Enquire Now
FAQs
The EA2101 kit arrives as a pre-assembled mounting plates set designed for IS2 enclosures, reducing alignment steps. Ensure the enclosure depth, height, and width match the reference options (300–1000 mm, 1400–2200 mm, 400–1200 mm) and follow the installation manual 1STM604121R0006 for torque and clearance guidance.
Key specs include galvanized steel sheet construction, product net width 120 mm, height 50 mm, depth 120 mm, and reference depths/heights/widths of 300–1000 mm, 1400–2200 mm, and 400–1200 mm respectively. Weight per plate is 0.270 kg, and packaging is 1 piece per unit. RoHS 20250108 and REACH declarations apply, with CE conformity.
Yes. EA2101 supports multiple reference depths from 300 to 1000 mm, heights from 1400 to 2200 mm, and widths from 400 to 1200 mm, enabling flexible mounting across a range of IS2 enclosure configurations in automation projects.
EA2101 carries CE declaration of conformity, RoHS compliance dated 20250108, and REACH declaration. WEEE classification notes the product is not in scope for WEEE, and ETIM/ eClass codes help with data standardization in procurement systems.
The pre-assembled kit reduces installation time and misalignment risk, improving first-time fit and commissioning speed. Galvanized steel offers durable, low-maintenance support with longer service life, lowering maintenance costs and total cost of ownership for automation panels.
