ABB EA2112 Control and Automation Board - RoHS/CE
Part Number: EA2112
Quick Summary
ABB EA2112 is a mounted control and automation board designed for IS2 enclosures in industrial automation. Engineers often grapple with bulky mounting hardware and misaligned back plates that slow installation and extend downtime. This solution carries CE conformity, RoHS compliance, and REACH declarations to meet regulatory demands across manufacturing environments. By delivering pre-assembled mounting plates and oversized back plates, it enables faster deployment, improved cable management, and scalable configurations for growing control architectures in modern facilities.
Product Information
Extended Description

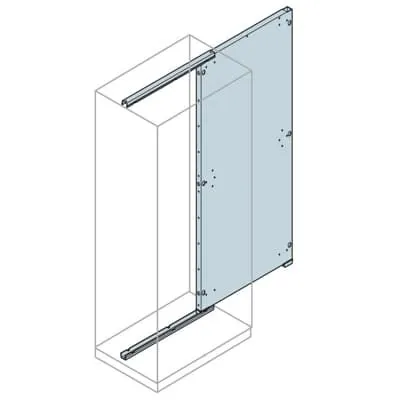

EA2112 ABB: Oversized back plates+tracks 2000x1200mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
2. Oversized mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1193 mm
Product Net Height
1898 mm
Product Net Depth / Length
45 mm
Product Net Weight
57.060 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
57.060 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Oversized mounting solution for IS2 enclosures: Feature creates abundant space for wiring and components, reducing field fitting issues. Business impact is faster commissioning and improved reliability, enabling production lines to come online sooner. Application in automation racks supports scalable control architectures and simplified maintenance during upgrades. Galvanized steel construction: Feature provides robust mechanical strength and corrosion resistance in harsh environments. Business impact includes lower maintenance costs and longer service life, with fewer enclosure-related failures. Application spans food & beverage, water treatment, and manufacturing floors where enclosure integrity matters. Pre-assembled kit with 2 mounting plates: Feature speeds up installation and minimizes on-site assembly errors. Business impact is reduced labor hours and consistent mounting quality, improving project ROI. Application is direct-fit for IS2 panels in automation deployments. RoHS, REACH, and CE compliance: Feature ensures regulatory alignment. Business impact is risk reduction and smoother audits, enabling safe supplier onboarding. Application across regulated industries. Accurate reference dimensions and compatibility: Feature with 1193 mm width and 1898 mm height supports standard IS2 layouts. Business impact includes predictable fitment and minimal rework, especially in retrofit projects. Application supports multiple reference depths (400–1000 mm) for flexible installation needs.
Get a Quick Quote for a ABB EA2112
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA2112?
Enquire Now
FAQs
The EA2112 kit is designed for IS2 enclosures. Start by aligning the oversized mounting plates with the enclosure rails, then secure with the included pre-assembled hardware. The kit supports reference depths from 400 to 1000 mm and provides a stable platform for a control and automation board, reducing field assembly steps and ensuring alignment accuracy during commissioning.
Critical dimensions include a net width of 1193 mm, net height of 1898 mm, and net depth of 45 mm, with reference enclosure depths of 400–1000 mm. The galvanized steel body delivers robust support for additional components, while the oversized plates help manage cable routing and mounting inertia, ensuring reliable operation under standard industrial loads.
Yes. The EA2112 is specifically engineered for IS2 enclosures and is intended to host control and automation boards. It ships as a pre-assembled kit with mounting plates, enabling secure, compliant installations in automation control cabinets and supporting scalable configurations for evolving control architectures.
EA2112 carries CE conformity, RoHS compliance with the declared RoHS date, and REACH declarations. This combination helps ensure regulatory alignment across manufacturing and assembly environments, simplifying audits and supplier qualification for regulated industries.
The kit reduces installation time through pre-assembled mounting plates, minimizes on-site errors, and improves reliability via robust galvanized steel construction. Long-term value includes lower maintenance costs, less downtime due to easier access for servicing, and scalable mounting for future control-board expansions in IS2 enclosures.
