ABB EA5461 Mounting Plates - CE Certified, IS2 Ready
Part Number: EA5461
Quick Summary
ABB EA5461 Mounting Plates enable compact pre-assembled back plates for automation enclosures. Many engineers face alignment challenges and limited mounting space when upgrading System pro E IS2 cabinets. The kit carries CE conformity, RoHS and REACH declarations, reinforcing regulatory alignment and sustainability. Designed for galvanized steel back plates and opposite-mount configurations, it streamlines installation and reduces field errors. This translates to faster commissioning, lower labor costs, and improved enclosure reliability across industrial panels. The back plate kit supports multiple reference depths (300–600–800–1000 mm) and the 1400x600 mm footprint, delivering flexible deployment for diverse control applications. Ideal for harsh industrial environments.
Product Information
Extended Description

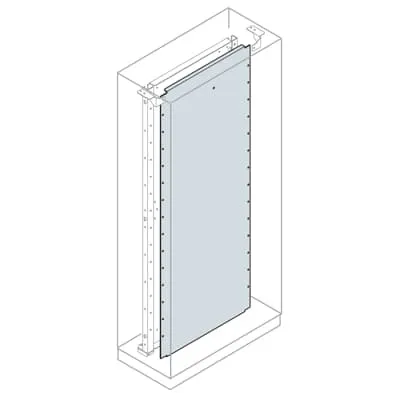

EA5461 ABB: Opposed mounting plate1400x600mm(HxW)
Sub-Function
Back plate
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized steel sheet
Options Provided
4. Opposed mounting plate
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
1STC804013D0208
Product Net Width
490 mm
Product Net Height
25 mm
Product Net Depth / Length
1270 mm
Product Net Weight
13.5270 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
13.527 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
Instruction handbook - AM2 and AMX Control and Automation Boards
Data Sheet, Technical Information
1STC804013D0208
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
eClass
V11.1 : 27371205
Object Classification Code
U
Feature: Galvanized steel sheet provides robust, corrosion resistant mounting surfaces. Business impact: Reduces long-term maintenance costs and extends cabinet life in challenging environments. Application: Suitable for automation and control boards in ABB System pro E IS2 enclosures across process industries. Feature: Kit and pre-assembled mounting type speeds installation and ensures consistent assembly. Business impact: Shorter commissioning times and lower installation cycle costs. Application: Works with System pro E control IS2 back plates in new builds or upgrades. Feature: Flexible footprint and reference depths of 300–600–800–1000 mm with a 1400x600 mm overall footprint. Business impact: Enables rapid reconfiguration without on-site machining. Application: Ideal for multi-depth control panels in automation projects. Feature: Compliance and documentation packaging including CE Declaration of Conformity, RoHS and REACH information. Business impact: Reduces regulatory risk and simplifies audits. Application: Suitable for industries with strict standards such as automotive and process. Feature: Installation support and manuals (AM2 and AMX) reduce learning curves. Business impact: Cuts field support time and minimizes commissioning errors. Application: Field upgrades and new systems using System pro E enclosures.
Get a Quick Quote for a ABB EA5461
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA5461?
Enquire Now
FAQs
EA5461 is designed as a pre-assembled back plate kit that fits System pro E IS2 enclosures. Compatibility is confirmed through the IS2 conformity declaration and the mounting plate configuration (opposed mounting plate option). Installation steps include aligning the back plate with enclosure channels, securing the opposed plates, and verifying alignment before wiring. This reduces on-site adjustments and speeds commissioning in automation projects.
Key specs include a 1400x600 mm footprint with a product net width of 490 mm, net height of 25 mm, and net depth of 1270 mm. The reference depths available are 300, 400, 500, 600, 800, and 1000 mm. The plates are manufactured from galvanized steel sheet, offering corrosion resistance and durability suitable for harsh industrial environments.
Yes. EA5461 is specifically designed for automation and control boards inside System pro E IS2 enclosures. Its pre-assembled mounting kit and opposed mounting plate provide stable back mounting, enabling reliable mounting of control modules while saving space and reducing installation time in complex panels.
EA5461 carries CE conformity and declarations, with RoHS compliance and REACH information confirmed (20250108). The product is also documented under ETIM EC000200 classification for enclosures, and WEEE considerations indicate the product is not in scope for WEEE disposal. This helps you meet regulatory and sustainability requirements in regulated markets.
Adopting EA5461 reduces commissioning time and on-site labor through pre-assembled components and clear installation guidance. The galvanized steel construction lowers maintenance costs, while IS2 compatibility ensures seamless integration with System pro E enclosures. Overall, you gain faster project delivery, improved cabinet reliability, and a favorable return on investment in automation upgrades.
