ABB EA5610 Control and Automation Board - CE Certified
Part Number: EA5610
Quick Summary
EA5610 control and automation board is a robust mounting solution designed for System pro E IS2 automation enclosures. This kit addresses common installation challenges by delivering a pre-assembled back plate that aligns precisely with enclosure panels, reducing setup time and field adjustments. It carries CE conformity, RoHS compliance, and REACH declarations, supporting safe, compliant deployments in regulated environments. By pairing galvanized steel construction with a matched mounting kit, it delivers long-term durability, corrosion resistance, and predictable performance. For engineers and procurement teams, the EA5610 offers a reliable, plug-and-play approach that accelerates project timelines and sustains equipment uptime with consistent, repeatable mounting quality.
Product Information
Extended Description

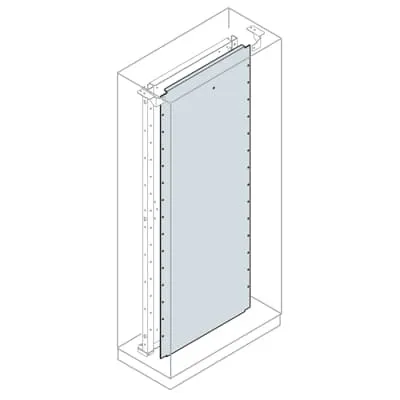

EA5610 ABB: Opposed mounting plate1600x1000mm(HxW)
Sub-Function
Back plate
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized steel sheet
Options Provided
4. Opposed mounting plate
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
1STC804013D0208
Product Net Width
890 mm
Product Net Height
25 mm
Product Net Depth / Length
1470 mm
Product Net Weight
25.3910 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1600 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
25.391 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
Instruction handbook - AM2 and AMX Control and Automation Boards
Data Sheet, Technical Information
1STC804013D0208
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
eClass
V11.1 : 27371205
Object Classification Code
U
Feature → Back plate provides a stable mounting surface that minimizes misalignment and vibration, improving enclosure integrity and electrical safety. Business Impact → Reduces commissioning time and rework, lowering labor costs during installation and maintenance. Application → Ideal for System pro E control enclosures in IS2 environments where precise back-mounting is required. Feature → Kit is pre-assembled and ready to install, with two mounting plates included. Business Impact → Speeds up installation, reduces on-site errors, and ensures repeatable assembly across multiple enclosures. Application → Suitable for high-volume deployments in factory automation and process control. Feature → Galvanized steel sheet construction delivers corrosion resistance and durability in harsh environments. Business Impact → Extends service life in demanding industrial settings, lowering replacement and maintenance costs. Application → Suitable for outdoor or harsh indoor locations where enclosure integrity matters. Feature → Compatible dimensions and reference depths (300–1000 mm options) support flexible layout planning. Business Impact → Enables scalable configurations without custom fabrication. Application → Fits a range of System pro E IS2 control enclosures for modular automation installations. Feature → RoHS and REACH compliant with documented declarations. Business Impact → Meets regulatory requirements, reducing compliance risk and product lifecycle concerns. Application → Approved for regulated markets with strict material controls.
Get a Quick Quote for a ABB EA5610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA5610?
Enquire Now
FAQs
EA5610 is specifically designed to fit System pro E IS2 control enclosures and ships as a pre-assembled mounting kit with an opposed mounting plate. This ensures precise alignment and quick installation, reducing field adjustments and downtime during enclosure mounting of automation boards.
The mounting kit features a net width of 890 mm, net height of 25 mm, and net depth of 1470 mm, with a reference footprint of 1600x1000 mm. The package weight is approximately 25.39 kg, making it a substantial, sturdy mounting solution suitable for heavy-duty automation panels.
Yes. The EA5610 carries RoHS information with a date of 20250108 and a REACH declaration confirming no substances above 0.1 mass percentage. It also includes a CE Declaration of Conformity for IS2, supporting regulatory compliance in many industrial markets.
EA5610 excels in automation and control enclosure projects requiring a reliable back plate and mounting kit for System pro E IS2 configurations. It supports interoperable layouts with various depth options and a galvanized steel construction to endure demanding factory or process environments.
The pre-assembled mounting kit reduces on-site labor, accelerates commissioning, and minimizes misalignment-related rework. Its galvanized steel construction offers extended lifespan in rugged environments, lowering replacement costs, warranty claims, and overall lifecycle ownership costs for automation panel installations.
