ABB EA5620 Control and Automation Board - IS2 System pro E
Part Number: EA5620
Quick Summary
ABB EA5620 Control and Automation Board enables robust back-plate mounting for automation enclosures. Engineers often struggle with inconsistent mounting, misaligned back plates, and time-consuming field modifications that delay projects. This kit carries CE conformity with Declaration of Conformity, RoHS, and REACH declarations to support compliant, sustainable installations, including IS2-system compatibility for System pro E control enclosures. By delivering a pre-assembled mounting solution, it minimizes onsite adjustments while maximizing rigidity and enclosure integrity. The EA5620 also aligns with mounting-plate accessories and galvanized-steel durability, delivering measurable business value through faster assembly, lower installation risk, and easier maintenance in automation and control environments.
Product Information
Extended Description

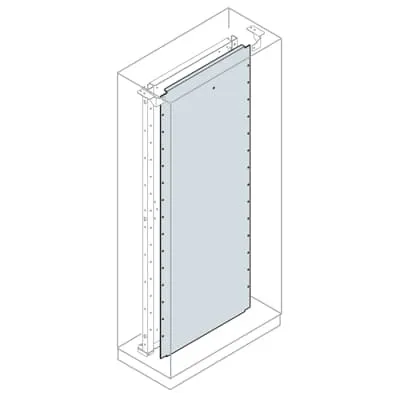

EA5620 ABB: Opposed mounting plate1600x800mm(HxW)
Sub-Function
Back plate
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized steel sheet
Options Provided
4. Opposed mounting plate
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
1STC804013D0208
Product Net Width
690 mm
Product Net Height
25 mm
Product Net Depth / Length
1470 mm
Product Net Weight
20.6120 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1600 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
20.612 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
Instruction handbook - AM2 and AMX Control and Automation Boards
Data Sheet, Technical Information
1STC804013D0208
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
eClass
V11.1 : 27371205
Object Classification Code
U
Feature: Pre-assembled mounting plates with opposed mounting plate options. Business impact: Reduces on-site assembly time and misalignment, enabling faster enclosure integration and consistent back-plane mounting. Application: System pro E IS2 controlled enclosures, supporting repeatable builds in factory automation lines.Feature: Galvanized steel sheet construction. Business impact: Improves corrosion resistance and longevity in harsh industrial environments, lowering lifecycle costs. Application: Enclosures exposed to dust, humidity, or chemical exposure in manufacturing plants.Feature: Kit mounting type and flexibility. Business impact: Simplifies installation with ready-to-install mounting kit, minimizing field fabrication and inventory complexity. Application: Systems requiring quick upgrades or retrofits in control panels and automation cabinets.Feature: Compliance and declarations. Business impact: Ensures CE conformity, RoHS and REACH compliance, reducing regulatory risk and audit findings. Application: Projects requiring formal documentation for safety and sustainability audits in IS2-rated System pro E control setups.Feature: Dimensions and weight clarity. Business impact: Improves planning, shipping, and space management by providing clear net and reference dimensions (1600 mm H x 800 mm W, weight ~20.6 kg). Application: Warehouse and installation planning for 800x1600 enclosures with multiple depth options.Feature: Comprehensive installation support and documentation. Business impact: Accelerates onboarding and reduces support costs with instruction manuals tailored to AM2/AMX boards. Application: New installations and upgrade projects in automation and control environments.
Get a Quick Quote for a ABB EA5620
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA5620?
Enquire Now
FAQs
EA5620 is designed as a back-plate mounting kit for System pro E IS2 enclosures, featuring pre-assembled mounting plates and opposed mounting options. It aligns with 1600 mm H x 800 mm W enclosures and supports standard IS2 back-plate configurations to minimize on-site fabrication and ensure consistent mounting.
The kit uses galvanized steel and provides 1600 mm reference height and 800 mm reference width, with product net dimensions around 690 mm width, 25 mm net height, and 1470 mm net depth. Total package weight is approximately 20.612 kg, enabling predictable shipping and handling for project planning.
EA5620 suits automation and control enclosures used in systems requiring robust back-plate mounting, System pro E control IS2 compatibility, and durable mounting solutions. Typical applications include factory automation, process control panels, and control cabinet retrofits where quick assembly and dependable enclosure integrity are priorities.
EA5620 includes CE Declaration of Conformity, RoHS information with a RoHS date of 20250108, and REACH declaration with a 20250108 REACH date. It also references ETIM classification EC000200 for enclosure devices and adheres to WEEE guidelines as a non-WEEE scope product.
By delivering pre-assembled mounting plates and a galvanized steel construction, EA5620 reduces installation time, minimizes field modification needs, and lowers maintenance costs due to improved enclosure rigidity. The certified compliance supports faster audits, while the kit’s compatibility with System pro E IS2 streamlines future upgrades and spares management.
