ABB EA5811 Control and Automation Board - CE
Part Number: EA5811
Quick Summary
ABB EA5811 control and automation board enables streamlined control panels inside IS2 enclosure systems. Engineers face mounting misalignment and integration challenges when upgrading back plates or adding mounting kits, which can slow projects and raise risk. This kit features a galvanized steel back plate with opposed mounting plate and pre-assembled mounting, delivering precise fit and quick commissioning. It carries CE conformity, RoHS compliance, and REACH declaration, reinforcing regulatory alignment across manufacturing sites. For procurement and maintenance teams, standardized dimensions and documented compatibility with System pro E IS2 reduce parts inventory and simplify sourcing, while delivering dependable performance in harsh industrial environments.
Product Information
Extended Description

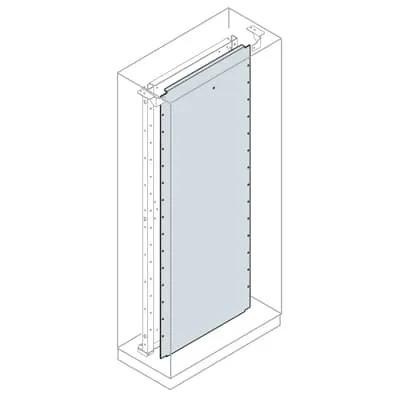

EA5811 ABB: Opposed mounting plate1800x1000mm(HxW)
Sub-Function
Back plate
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized steel sheet
Options Provided
4. Opposed mounting plate
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
1STC804013D0208
Product Net Width
890 mm
Product Net Height
25 mm
Product Net Depth / Length
1670 mm
Product Net Weight
28.5670 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
28.567 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
Instruction handbook - AM2 and AMX Control and Automation Boards
Data Sheet, Technical Information
1STC804013D0208
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
eClass
V11.1 : 27371205
Object Classification Code
U
Feature: Pre-assembled mounting kit with opposed mounting plate. Business Impact: Reduces field assembly time and alignment errors, cutting commissioning windows and labor costs. Application: Ideal for Automation and Control Enclosures (System pro E IS2) where fast upgrades are needed. Feature: Galvanized steel sheet construction. Business Impact: Improves durability and resistance to corrosion in demanding environments, lowering maintenance expenses and replacement cycles. Application: Suitable for long-life control panels in busy industrial plants. Feature: Back plate dimensions 1800x1000 mm with reference depth options. Business Impact: Provides flexible fit for a range of enclosure footprints, enabling standardized procurement across projects. Application: Works with 300–1000 mm reference depths for adaptable installations. Feature: Compatibility with System pro E IS2 and ETIM EC000200 classification. Business Impact: Ensures seamless integration with ABB automation ecosystems and accurate part categorization, reducing sourcing ambiguity. Application: Supports consistent engineering data and procurement workflows. Feature: Regulatory compliance - CE, RoHS, REACH declarations. Business Impact: Mitigates regulatory risk and simplifies audits across multi-site deployments. Application: Critical for global manufacturing deployments and supplier qualification programs.
Get a Quick Quote for a ABB EA5811
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA5811?
Enquire Now
FAQs
EA5811 is designed for IS2 System pro E control enclosures and accepts the included opposed mounting plate with a back plate measuring 1800x1000 mm. It aligns with standard mounting hole patterns and pre-assembled configurations, simplifying retrofit and new-build projects. Ensure your enclosure footprint accommodates the 890 mm width and 1670 mm depth references for a clean installation.
Key specifications include galvanized steel sheet construction, back plate 1800x1000 mm, product net width 890 mm, net height 25 mm, net depth 1670 mm, and reference depth options 300–1000 mm. It is a 2. mounting plates accessory with pre-assembled mounting kit, CE conformity, RoHS compliance and REACH declaration to support regulatory requirements.
Yes. By delivering a pre-assembled mounting kit with opposed mounting plate, engineers reduce field assembly, alignment checks, and part sourcing. The standardized dimensions and documentation support faster commissioning in multi-site deployments and minimize inventory complexity, helping procurement streamline purchasing and maintenance teams keep critical spares aligned with the control board family.
EA5811 carries CE conformity (Declaration of Conformity IS2), RoHS compliance, and REACH declaration. WEEE category indicates the product is not in the WEEE scope. These certifications ensure regulatory alignment for electronics in control cabinets and reduce compliance risk during audits, while supporting sustainable procurement practices.
Consider enclosure compatibility (System pro E IS2), mounting type (Kit | Pre assembled), material (galvanized steel), and reference dimensions (1800x1000 back plate; depths 300–1000 mm). Review required space for the 890 mm width, 1670 mm depth assembly, and ensure support for the AM2/AMX control and automation manuals during commissioning.
