ABB EA5861 Control and Automation Board - CE IS2
Part Number: EA5861
Quick Summary
ABB EA5861 is a control and automation board designed for System pro E control enclosures in industrial automation. Engineers often face lengthy installation times and wiring errors when mounting large back plates inside tight control panels. This pre-assembled galvanized steel mounting kit speeds assembly, reduces field wiring mistakes, and improves enclosure integrity. The solution carries CE conformity with Declaration of Conformity IS2, plus RoHS and REACH compliance, ensuring regulatory alignment and safer operations. By aligning with System pro E control enclosures and standard back-plate configurations, EA5861 supports streamlined procurement, easier spare-parts planning, and faster maintenance. In short, it delivers practical value for automation projects requiring robust, compliant mounting hardware.
Product Information
Extended Description

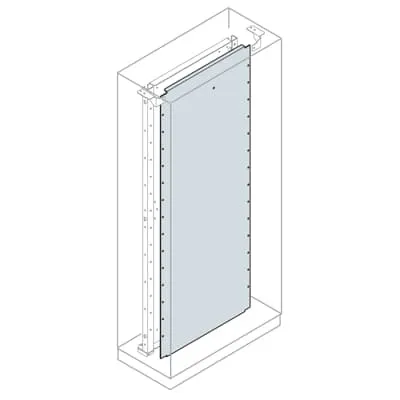

EA5861 ABB: Opposed mounting plate1800x600mm(HxW)
Sub-Function
Back plate
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized steel sheet
Options Provided
4. Opposed mounting plate
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
1STC804013D0208
Product Net Width
490 mm
Product Net Height
25 mm
Product Net Depth / Length
1670 mm
Product Net Weight
17.3550 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
17.355 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
Instruction handbook - AM2 and AMX Control and Automation Boards
Data Sheet, Technical Information
1STC804013D0208
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
eClass
V11.1 : 27371205
Object Classification Code
U
Feature: Galvanized steel sheet construction delivers durable mounting surfaces with strong corrosion resistance. Business Impact: extends service life and lowers maintenance costs in harsh industrial environments. Application: ideal for automation enclosures and control panels where long-term reliability is critical. Feature: 1800x600 mm opposed mounting plate kit with pre-assembled options. Business Impact: accelerates installation and minimizes on-site wiring errors, reducing downtime. Application: suitable for System pro E IS2 enclosures requiring a back plate solution with ready-to-install components. Feature: System pro E control IS2 compatibility. Business Impact: ensures seamless integration with ABB enclosure ecosystems, simplifying spare-parts planning and serviceability. Application: supports scalable automation architectures. Feature: RoHS and REACH compliance plus CE declaration. Business Impact: mitigates regulatory risk and supports sustainable procurement. Application: aligns with corporate compliance programs and environmental standards. Feature: Documented installation and reference dimensions. Business Impact: reduces training time and planning effort, improving project timelines. Application: ideal for engineering teams validating enclosure layouts and mounting clearances.
Get a Quick Quote for a ABB EA5861
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA5861?
Enquire Now
FAQs
EA5861 is designed as a pre-assembled opposed mounting plate kit for System pro E IS2 enclosures. It fits standard back-plate configurations, uses galvanized steel for durability, and includes mounting hardware compatible with the enclosure framework. The AM2/AMX installation manuals provide step-by-step guidance to minimize setup time and wiring mistakes, helping technicians avoid common misalignment issues during panel assembly.
Key references include 1800 mm height and 600 mm width for the enclosure interface, with a product net width of 490 mm, net height of 25 mm, and net depth of 1670 mm. The mounting kit weighs 17.355 kg. Understanding these dimensions helps with space planning, clearance, and transport within the facility, ensuring a smooth fit in existing automation panels.
Yes. EA5861 targets System pro E control environments and is intended for Control and Automation Board applications in harsh manufacturing settings. Its galvanized steel construction and IS2 compatibility ensure robust mounting, while the pre-assembled kit reduces on-site assembly time, making it suitable for high-volume production lines and repeatable panel builds.
EA5861 carries a CE Declaration of Conformity for IS2, RoHS information with a RoHS date of 20250108, and a REACH declaration with corresponding information. WEEE categorization notes the product is not within WEEE scope. These certifications support regulatory compliance, product safety, and environmental responsibility across manufacturing operations.
The pre-assembled mounting kit reduces on-site labor and wiring errors, shortening project timelines and lowering commissioning risk. Regulatory compliance (CE, RoHS, REACH) simplifies supplier audits and procurement, while durable galvanized steel resists corrosion, lowering maintenance costs over the lifecycle of automation enclosures.
