ABB EA6002 Mounting Plates - CE/ETIM 8 Certified
Part Number: EA6002
Quick Summary
ABB EA6002 mounting plates are designed to reinforce control panels in IS2 enclosures for automation applications. Engineers often contend with oversized panels and mounting rigidity gaps that slow commissioning and raise maintenance costs. This accessory carries CE declarations of conformity and robust compliance with RoHS and REACH, alongside ETIM mounting accessories classification, ensuring compatibility across source components and long-term supplier traceability. The two oversized mounting plates shipped in a pre-assembled kit offer reliable alignment and fast installation, while galvanized steel construction resists corrosion in demanding environments. For system integrators and OEMs, the EA6002 translates into faster turn‑key assemblies, predictable downtime, and lower total cost of ownership when building control and automation boards for IS2 enclosures.
Product Information
Extended Description

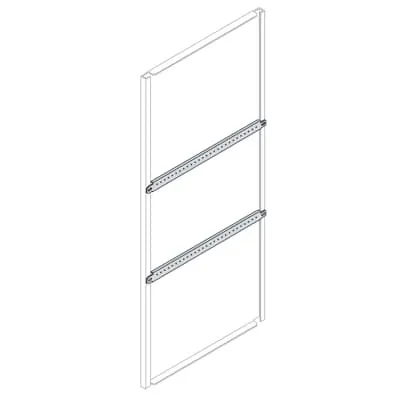

EA6002 ABB: N°2 horizontal sections for oversized plate reinforcement W=600mm
Sub-Function 3
Fastening parts/-set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
2. Oversized mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
45 mm
Product Net Height
30 mm
Product Net Depth / Length
590 mm
Product Net Weight
1.640 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.670 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The EA6002 kit provides two oversized mounting plates in a pre-assembled configuration, delivering precise alignment and enhanced structural rigidity; the result is faster panel assembly and reduced risk of misalignment during commissioning in IS2 enclosure projects. Application: Ideal for automation control panels where space is tight and reliability is critical. Feature → Business Impact → Application: Galvanized steel sheet construction delivers corrosion resistance in challenging environments, improving longevity and reducing maintenance frequency; Application: Suitable for IS2 Enclosures for Automation in industrial settings. Feature → Business Impact → Application: Reference depths and heights cover multiple IS2 depth options (300–1000 mm) and heights (1400–2200 mm), enabling a single accessory to fit a broad range of installations; Application: Use in multi-project automation boards requiring versatility. Feature → Business Impact → Application: Kit / Pre assembled mounting type reduces on-site assembly time and minimizes field wiring interruptions; Application: Accelerates project timelines for control and automation boards. Feature → Business Impact → Application: RoHS, REACH, CE declarations and ETIM classification ensure regulatory compliance and supplier traceability; Application: Meets industry standards for safe, compliant automation hardware, lowering risk during audits and inspections.
Get a Quick Quote for a ABB EA6002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA6002?
Enquire Now
FAQs
The EA6002 supports multiple IS2 enclosure depths, including 300 mm, 400 mm, 500 mm, 600 mm, 800 mm, and 1000 mm. This enables a single mounting-plate kit to fit several common automation enclosure configurations, reducing the need for multiple SKUs and simplifying procurement.
The EA6002 plates are manufactured from galvanized steel sheet for corrosion resistance. The product net weight is 1.640 kg, with a compact footprint of 45 mm width and 30 mm height, and a net depth of 590 mm, matching IS2 enclosure mounting requirements.
EA6002 carries CE declaration of conformity, RoHS information with date 20250108, and REACH information with date 20250108. It is classified under ETIM EC002625 for mounting accessories and adheres to WEEE considerations as non-scope, supporting regulatory compliance in controlled environments.
The kit is pre-assembled with two oversized mounting plates, enabling rapid, repeatable mounting and alignment inside IS2 enclosures. This reduces commissioning time, minimizes adjustment needs, and lowers maintenance events by providing robust, corrosion-resistant mounting hardware designed for long service life in industrial settings.
Key technical references include the IS2 Enclosures Technical Catalogue 2024 and the installation manual identified as 1STM604121R0006. These documents provide mounting tolerances, step-by-step installation guidance, compatibility notes with IS2 enclosures, and safety considerations for dependable integration.
