ABB EA8002 Mounting Plates - CE Conformity for IS2
Part Number: EA8002
Quick Summary
ABB EA8002 Mounting Plates are a robust mounting accessory for IS2 Enclosures used in automation projects. Engineers often struggle with alignment drift and retrofit downtime when assembling control and automation boards. This kit carries CE conformity, RoHS and REACH declarations to meet regulatory requirements, alongside ETIM and eClass classifications for easy procurement. By delivering a pre-assembled mounting solution with oversized plates, the design reduces field modification, improves mounting accuracy, and accelerates panel builds. In practice, it supports scalable, repeatable installations across ABB IS2 enclosure families, enabling faster commissioning and predictable maintenance windows.
Product Information
Extended Description

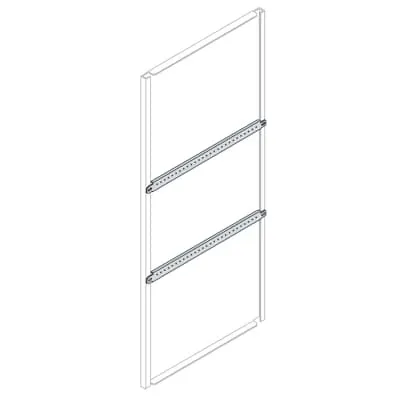

EA8002 ABB: N°2 horizontal sections for oversized plate reinforcement W=800mm
Sub-Function 3
Fastening parts/-set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
2. Oversized mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
45 mm
Product Net Height
30 mm
Product Net Depth / Length
790 mm
Product Net Weight
2.220 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.270 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Two oversized mounting plates are included in a pre-assembled kit. Business Impact: Reduces field fabrication and alignment errors, saving installation time and labor costs. Application: Ideal for Control and Automation Board mounting within IS2 Enclosures in automation panels. Feature: Galvanized steel construction. Business Impact: Improves corrosion resistance and longevity in harsh industrial environments, lowering maintenance cycles. Application: Panel assemblies in manufacturing settings where reliable longevity matters. Feature: Compatibility with IS2 Enclosures for Automation. Business Impact: Simplifies procurement and cross-reference, enabling faster project scoping. Application: Automated control panels across multiple projects with standardized components. Feature: Range of reference depths and heights (300–800 mm, 1400–2200 mm). Business Impact: Provides flexibility to fit a variety of enclosure sizes without custom parts. Application: Modular panel design for scalable automation deployments. Feature: Pre-assembled mounting kit with 1 piece packaging and clear documentation (1STM604121R0006). Business Impact: Reduces install risk and accelerates onboarding for maintenance teams. Application: Efficient field upgrades and service installations. Feature: Certifications and compliance (CE, RoHS, REACH). Business Impact: Ensures regulatory compliance and risk mitigation. Application: Quality-assured mounting accessories for IS2 enclosures in regulated environments.
Get a Quick Quote for a ABB EA8002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA8002?
Enquire Now
FAQs
EA8002 is purpose-built as mounting accessories for the IS2 Enclosures for Automation. The kit includes two oversized mounting plates, a galvanized steel construction, and a pre-assembled mounting kit to simplify panel builds. It aligns with ETIM EC002625 and supports mounting of control and automation boards within IS2 systems, enabling consistent layouts across projects.
EA8002 ships as a kit ready for pre-assembly and is designed for IS2 Enclosures. It supports reference depths from 300 to 800 mm and heights from 1400 to 2200 mm, with a fixed 800 mm width. Use the recommended manual 1STM604121R0006 and follow CE RoHS REACH requirements during install to ensure correct alignment and regulatory compliance.
The product carries a CE Declaration of Conformity IS2, RoHS information dated 20250108, and a REACH declaration dated 20250108. WEEE category indicates not in WEEE scope. ETIM 8/9 and eClass classifications support procurement and cataloging for enclosure mounting accessories.
Using EA8002 reduces installation time because the plates are oversized and pre-assembled, increasing mounting accuracy and repeatability. The galvanized steel construction withstands industrial environments, decreasing maintenance cycles. Standardized dimensions simplify stocking and cross-referencing with other ABB IS2 enclosure components, delivering faster ROI and fewer field modifications.
Each package includes one piece with a gross weight of 2.270 kg and a net weight of 2.220 kg. Packaging follows Package Level 1 Units, suitable for single-unit shipments, and aligns with IS2 compatibility and catalog entries for easy reordering.
