ABB EA8081 Mounting Plate Kit - ETIM EC000213
Part Number: EA8081
Quick Summary
ABB EA8081 Mounting Plate Kit provides fixed mounting support for distribution boards in AM2 cabinets and IS2 automation enclosures. Industries often wrestle with misalignment, retrofit downtime, and lengthy installation when adding mounting hardware. CE conformity, RoHS compliance dated 2025-01-08, and ETIM EC000213 ensure documented reliability and procurement standardization. Compared with bespoke components, this mounting kit accelerates assembly and supports scalable automation projects. Its galvanised steel construction ensures durability in harsh industrial environments. The kit ships with three partial mounting plates, enabling flexible configurations for future expansions. Designed for IS2 and AM2 ecosystems, it complements the IS2 Enclosures Catalogue and helps meet CE, RoHS, and REACH expectations.
Product Information
Extended Description

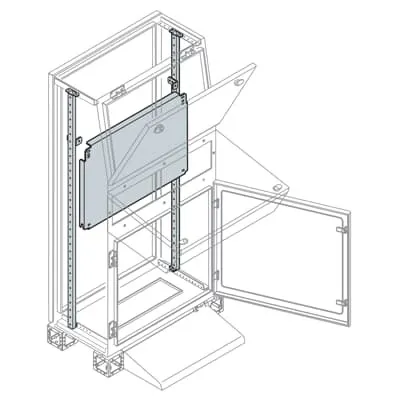

EA8081 ABB: Partial height mounting plate 800x800mm(WxH)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation | C2 Consolle - IP55
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
3. Partial mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
800 mm
Product Net Height
800 mm
Product Net Depth / Length
800 mm
Product Net Weight
15.520 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
15.840 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Feature: Kit-based mounting approach with pre-assembled elements and three partial plates. Business Impact: Reduces field assembly time by standardizing mounting holes and alignment, lowering commissioning downtime and labor costs. Application: Ideal for AM2 cabinets and IS2 automation enclosures where quick reconfiguration is common, enabling rapid expansion or rework. Feature: Galvanized steel sheet construction provides corrosion resistance and structural rigidity. Business Impact: Extends service life in challenging environments and reduces maintenance costs. Application: Suitable for distribution boards in manufacturing, process plants, and heavy industrial settings. Feature: Flexible dimensional options with 800x800 footprint and reference depths from 300 to 1000 mm, plus heights from 1400 to 2200 mm. Business Impact: Enables modular configurations and inventory optimization, cutting BOM complexity. Application: Perfect for IS2 enclosures and AM2 cabinets with modular expansion needs. Feature: Regulatory compliance and documentation including CE Declaration, RoHS information dated 20250108, and REACH; ETIM 8/9 EC000213. Business Impact: Ensures procurement readiness and regulatory alignment, reducing audit risk. Application: Enables compliant rollout across European facilities and supplier qualification processes. Feature: Installation guidance and technical documentation (1STM604121R0006; IS2 Enclosures Technical Catalogue 2024). Business Impact: Shortens commissioning timelines and minimizes installation errors. Application: Ideal for field teams seeking clear setup procedures and reliable reference materials.
Get a Quick Quote for a ABB EA8081
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA8081?
Enquire Now
FAQs
The EA8081 Mounting Plate Kit is designed for ABB AM2 cabinets and IS2 Enclosures for Automation, including compatibility with C2 Consolle IP55 where applicable. It ships as a pre-assembled kit with three partial mounting plates, delivering a flexible 800x800 mm footprint and multiple reference depths and heights to match common automation layouts.
Key specs include a product net width, height, and depth of 800 mm each, with reference depths of 300, 400, 500, 600, 800, and 1000 mm and reference heights of 1400 to 2200 mm. The assembly weight is 15.520 kg. These dimensions simplify space planning, permit standardized mounting interfaces, and reduce misalignment during installation.
Yes. The product is categorized for Control and Automation Board assemblies and is compatible with AM2 cabinets, IS2 enclosures, and related automation control panels. Its modular mounting approach supports scalable projects, rapid reconfiguration, and consistent mounting quality across multiple control system iterations.
EA8081 carries a CE Declaration of Conformity for IS2, RoHS information with a RoHS date of 20250108, and a REACH declaration indicating compliant material usage. ETIM classifications include EC000213 for mounting plates, with additional classifications (ETIM 9) for distribution board components, aiding standard procurement and regulatory compliance.
The kit’s pre-assembled design, three partial mounting plates, and standardized 800x800 footprint reduce field assembly time and on-site errors. Regulatory compliance minimizes audit and vendor qualification time, while modular depth options enable future expansions without new SKUs, delivering lower total cost of ownership and faster project completion.
