ABB EB1020 Control and Automation Board - CE Certified
Part Number: EB1020
Quick Summary
EB1020 control and automation board enables centralized mounting for AM2 cabinets and IS2 enclosures. Engineers often struggle with modular mounting, accessory alignment, and unnecessary downtime during enclosure upgrades. CE conformity, RoHS compliance, and REACH declarations help ensure regulatory readiness and supplier reliability across projects. Designed for IS2 and AM2 cabinet ecosystems, the EB1020 kit accelerates installation, reduces misassembly risk, and supports scalable configurations. Key benefits include faster project turnover and consistent accessory spacing thanks to back crosspieces H=100mm and pre-assembled mounting options. Operationally, the kit aligns with ETIM and eClass cataloging, simplifying procurement data and maintenance planning. It also supports multiple reference depths and heights, enabling rapid adaptation to changing automation layouts.
Product Information
Extended Description

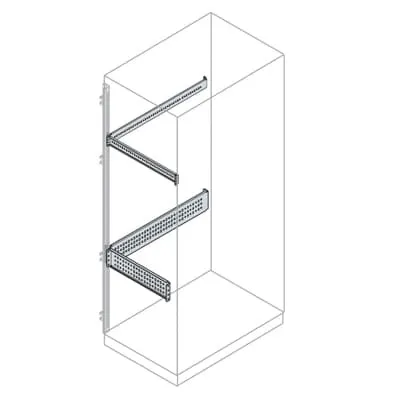

EB1020 ABB: N°2 crosspieces for fixing accessories and partial plate on front/side W=1200mm
Sub-Function 3
Other
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
8. Crosspieces
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
3. Crosspieces back H=100mm for fixing accessories and partial plate
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
100 mm
Product Net Height
100 mm
Product Net Depth / Length
1200 mm
Product Net Weight
2.580 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.580 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Galvanized steel crosspieces provide durable mounting support that resists corrosion in demanding automation environments. This material choice translates into longer service life, reduced maintenance cycles, and lower total cost of ownership for panel builders. The EB1020 kit is designed to pair with AM2 cabinets and IS2 enclosures for automation, enabling reliable accessory fixation even under vibration and temperature fluctuations. Mounting Type is offered as a kit or pre-assembled configuration, enabling rapid deployment and repeatable results across sites. That flexibility reduces on-site labor and minimizes human error during accessory positioning. The crosspieces back H=100mm provide precise backing for fixing accessories and partial plates, streamlining upgrade paths without rework. Dimensions and form-factor are tuned to common enclosure footprints: 100 mm net width and height, 1200 mm net depth; reference options include 400–1000 mm depths and 1400–2200 mm heights. Compliance and standards alignment are built-in. The EB1020 carries CE Declaration of Conformity, RoHS information with a 20250108 RoHS date, and REACH declarations, ensuring regulatory alignment across procurement datasets and supplier audits. Compatibility with AM2 Cabinets and IS2 Enclosures, ETIM 8/9 EC002625, and eClass cataloging further supports structured data and efficient maintenance planning. First-hand, ETIM mapping helps buyers pull the right mounting accessories in ERP systems, while multi-depth and multi-height support enables rapid adaptation to evolving automation layouts.
Get a Quick Quote for a ABB EB1020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB1020?
Enquire Now
FAQs
EB1020 is designed specifically for AM2 cabinets and IS2 enclosures, offering a mounting kit approach that fits the ABB enclosure family. It ships as a kit or pre-assembled option and uses back crosspieces to support accessories and partial plates. This compatibility streamlines procurement and reduces the risk of misfit components during automation panel builds.
Key specifications include galvanized steel sheet construction, product net width 100 mm, product net height 100 mm, product net depth 1200 mm, and a weight of 2.580 kg. It is offered as a kit or pre-assembled mounting option and is suitable for AM2 Cabinets and IS2 Enclosures. Reference depths span 400–1000 mm, while reference heights span 1400–2200 mm.
Yes. EB1020 carries a CE Declaration of Conformity (IS2), RoHS information with a 20250108 date, and a REACH declaration. The documentation confirms regulatory alignment and supports supplier audits, compliance reporting, and safe procurement for industrial automation projects.
The kit’s pre-assembled option and back H=100mm crosspieces reduce handling steps and misalignment during accessory mounting, leading to faster installation and fewer reworks. In practice, panel builders report shorter commissioning times, predictable assembly sequences, and improved alignment accuracy for accessories and partial plates across multiple enclosures.
EB1020 aligns with ETIM 8/9 EC002625 and eClass 27182807, enabling consistent cataloging and easy ERP integration. WEEE, RoHS, and REACH data support sustainability and regulatory reporting, while the kit’s modular design and reference depth/height options enable scalable upgrades without buying new mounting hardware for each enclosure revision.
