ABB EB1060 Control and Automation Board - CE Conformity
Part Number: EB1060
Quick Summary
ABB EB1060 is a control and automation board designed to streamline enclosure installations for automated systems. Engineers often wrestle with modular mounting, misaligned accessories, and inconsistent fit within IS2 enclosures. This product carries a CE Declaration of Conformity, RoHS compliance (RoHS Date 20250108), and a REACH declaration to help you meet stringent regulations with confidence. Its pre-assembled mounting kit, galvanized steel crosspieces, and dedicated C shaped side supports reduce field labor, minimize errors, and improve serviceability. Designed for ABB IS2 enclosures used in automation applications, EB1060 delivers predictable mounting geometry and vendor-verified compatibility, supporting future upgrades and easier procurement while protecting long-term system performance.
Product Information
Extended Description

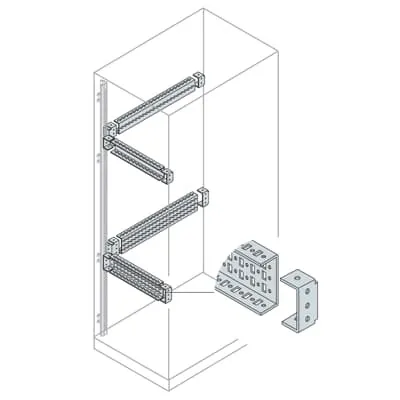

EB1060 ABB: N° 2 boxed crosspiece H 100 W 600
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
8. Crosspieces
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
4. Crosspieces "C" shaped side H=48 mm for fixing accessories and partial plate
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
90 mm
Product Net Height
48 mm
Product Net Depth / Length
590 mm
Product Net Weight
3.070 kg
Reference Depth/Length
600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.07 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature: Kit includes eight crosspieces and side supports H=48 mm, pre-assembled for fast installation. Business Impact: standardizes mounting planes and reduces installation time and trial-and-error adjustments. Application: ideal for ABB IS2 enclosure configurations in factory automation panels. Feature: Galvanized steel sheet construction provides corrosion resistance and rugged durability. Business Impact: extends service life in harsh industrial environments and lowers replacement costs. Application: suitable for manufacturing floors, process plants, and outdoor-rated cabinets. Feature: Precise dimensions with Product Net Width 90 mm, Net Height 48 mm, Net Depth 590 mm, plus Reference Depths 600/800/1000 mm and Heights 1400/1600/1800/2000/2200 mm. Business Impact: enables predictable fit with standardized cabinet footprints and easier design-to-order processes. Application: supports scalable enclosure programs and modular data/communications racks. Feature: Mounting Type Kit | Pre assembled with 4. Crosspieces "C" shaped side H=48 mm for fixing accessories and partial plate. Business Impact: accelerates accessory integration and maintains clean cable routing. Application: simplifies retrofits and expansion in existing IS2 systems. Feature: Documentation and compliance support including 1STM604121R0006 instructions and IS2 Enclosures Technical Catalogue 2024. Business Impact: reduces commissioning risk and improves maintenance planning. Application: ensures technicians have ready-reference manuals during installation and upgrades.
Get a Quick Quote for a ABB EB1060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB1060?
Enquire Now
FAQs
Yes. EB1060 is designed as an IS2 enclosure mounting kit with eight crosspieces and H=48 mm side supports, supporting IS2 automation cabinets with reference widths and depths specified in the data. It comes with installation guidance (1STM604121R0006) and is suitable for standard ABB automation configurations.
EB1060 features a product net width of 90 mm, net height of 48 mm, and net depth of 590 mm, with reference depths of 600, 800, and 1000 mm and reference heights from 1400 to 2200 mm. The product net weight is 3.070 kg, making it a compact yet sturdy mounting solution.
EB1060 includes a CE Declaration of Conformity, RoHS information with a RoHS date of 20250108, and a REACH declaration indicating material safety. It is also categorized under WEEE as Product Not in WEEE Scope, reflecting regulatory alignment for industrial enclosures.
Documentation includes the CE Declaration of Conformity IS2, the installation manual 1STM604121R0006, and IS2 Enclosures Technical Catalogue 2024. These resources support proper mounting, accessory integration, and compliance during commissioning and maintenance.
The pre-assembled mounting kit with eight crosspieces and C-shaped side supports reduces field assembly time, lowers error rates, and simplifies future upgrades. Galvanized steel construction delivers durability in harsh environments, while standardized dimensions and documented manuals reduce design risk and long-term maintenance costs.
