ABB EB1080 Control and Automation Board - IS2 Enclosures
Part Number: EB1080
Quick Summary
ABB EB1080 is a control and automation board for IS2 enclosure systems used in industrial automation. Designers and maintenance teams struggle with mismatched mounting and lengthy installation times. CE conformity ensures regulatory compliance, while RoHS and REACH declarations support responsible material choice. ETIM classification and WEEE considerations simplify procurement and lifecycle planning. With IS2 enclosures, galvanized steel construction, and a pre-assembled mounting kit, EB1080 delivers rugged durability, faster deployment, and lower total cost of ownership.
Product Information
Extended Description

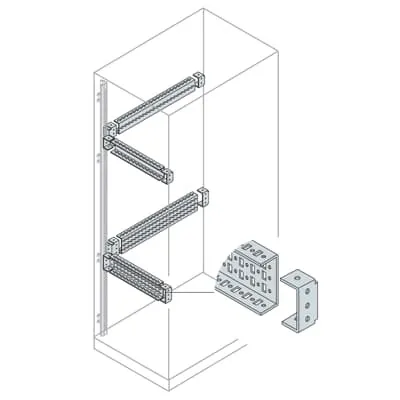

EB1080 ABB: N° 2 boxed crosspiece H 100 W 800
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
8. Crosspieces
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
4. Crosspieces "C" shaped side H=48 mm for fixing accessories and partial plate
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
100 mm
Product Net Height
100 mm
Product Net Depth / Length
800 mm
Product Net Weight
4.150 kg
Reference Depth/Length
600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
4.15 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature: Pre-assembled mounting kit with eight crosspieces reduces on-site assembly. Business impact: Shorter installation times, fewer mounting errors, and lower labor costs. Application: IS2 Enclosures for Automation in factory automation projects. Feature: Galvanized steel sheet construction provides durability in harsh environments. Business impact: Improved corrosion resistance and longer service life, reducing maintenance frequency. Application: Mounting accessories for control cabinets in industrial facilities. Feature: Compact net dimensions and flexible reference sizes (600/800/1000 mm depth; 1400/1600/1800/2000/2200 mm height; 600/800/1000/1200/1600 mm width). Business impact: Easy fit across multiple enclosure footprints and scalable installations. Application: Customizable enclosure systems for mixed equipment layouts. Feature: Ready compatibility with IS2 Enclosures for Automation and mounting accessories. Business impact: Streamlined procurement and reduced design risk due to standard ETIM and WEEE classifications. Application: System integrator projects needing predictable component behavior. Feature: Weight and packaging details (4.150 kg, 1 piece per package). Business impact: Predictable shipping, handling, and installation planning. Application: Logistics and on-site assembly for automation cabinets.
Get a Quick Quote for a ABB EB1080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB1080?
Enquire Now
FAQs
EB1080 is designed for IS2 Enclosures for Automation and ships with a pre-assembled mounting kit that includes eight crosspieces. It supports mounting accessories (enclosure/cabinet) and C-shaped side supports (H=48 mm) for flexible side or back mounting. This makes it straightforward to integrate with existing automation cabinets and standard footprint options.
Key specifications include Product Net Width 100 mm, Product Net Height 100 mm, Product Net Depth/Length 800 mm, and a weight of 4.150 kg. The material is galvanized steel sheet, with reference depths of 600, 800, or 1000 mm, and reference heights of 1400, 1600, 1800, 2000, or 2200 mm, and reference widths of 600, 800, 1000, 1200, or 1600 mm.
Yes. EB1080 carries a Declaration of Conformity CE and adheres to RoHS requirements with RoHS information dated 20250108. It also provides REACH declarations and information, with a REACH date of 20250108. WEEE categorization indicates the product is not in the WEEE scope, supporting compliant lifecycle management.
The pre-assembled mounting kit with eight crosspieces minimizes on-site assembly steps, reducing labor hours and potential errors. Its galvanized steel construction and standard IS2 enclosure compatibility simplify procurement and maintenance planning, while the defined reference dimensions allow rapid cabinet configuration, leading to lower total cost of ownership and faster project delivery.
EB1080 is ideally used as a control and automation board within IS2 enclosure systems for automation. It supports mounting accessories and crosspiece-based configurations, making it suitable for machine control panels, process automation racks, and other industrial automation installations that require robust mounting, regulatory compliance, and scalable footprint options.
