ABB EB1101 Control and Automation Board - CE Certified
Part Number: EB1101
Quick Summary
ABB EB1101 Control and Automation Board is a modular mounting kit designed for IS2 automation enclosures. Engineers often wrestle with mismatched hardware and time-consuming field assembly, delaying project milestones. This kit carries CE declarations of conformity, RoHS and REACH compliance, and ETIM classification to streamline procurement and documentation. Built from galvanized steel with preassembled mounting plates, it speeds installation, reduces errors, and scales across enclosure heights and widths. Together, these features support faster commissioning and lower total cost of ownership for automation projects. For design teams, the IS2 compatibility and standardized mounting reduce design-to-build cycle times.
Product Information
Extended Description

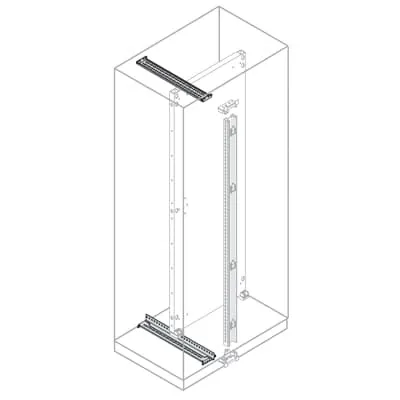

EB1101 ABB: N°2 sliding guides of back plate D=1000mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
3. Partial mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
170 mm
Product Net Height
35 mm
Product Net Depth / Length
1000 mm
Product Net Weight
6.320 kg
Reference Depth/Length
1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
6.450 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Galvanized steel mounting plates provide durable corrosion resistance and predictable performance in harsh industrial environments. Business Impact: Longer service life and reduced maintenance costs translate to lower total cost of ownership. Application: Ideal for automation cabinet retrofits and new installations where reliability is critical. Feature: Preassembled mounting kit with 2 mounting plates simplifies the initial build and accelerates commissioning. Business Impact: Shorter project timelines and fewer on-site errors save labor hours and minimize downtime. Application: Supports rapid deployment in IS2 enclosure projects across multiple lineups. Feature: Two back-plate sliding guides at D=1000 mm enable precise alignment and modular expansion. Business Impact: Improves accuracy during board mounting and reduces rework, enhancing overall system integrity. Application: Enclosures requiring accurate back-to-back plate alignment in automation cells. Feature: Compatibility with IS2 Enclosures for Automation and the 5B5B30B340 product type standardizes installations. Business Impact: Cross-product interoperability reduces design complexity and training needs. Application: Engineering teams implementing multi-vendor automation cabinets. Feature: Compliance and documentation support including CE, RoHS, REACH declarations and ETIM classification. Business Impact: Streamlines purchasing approvals and regulatory reporting, reducing compliance risk. Application: Projects with strict regulatory requirements and traceability needs.
Get a Quick Quote for a ABB EB1101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB1101?
Enquire Now
FAQs
The EB1101 is designed for IS2 Enclosures for Automation and includes two mounting plates preassembled in the kit. The mounting type is Kit | Pre assembled, and the design supports IS2 enclosure architectures with aligned back plates for stable board installation, reducing field setup time and misalignment risk.
Key specs include material: galvanized steel sheet; product net width: 170 mm; product net height: 35 mm; product net depth: 1000 mm; weight: 6.320 kg. It corresponds to the IS2 Enclosures for Automation category and uses the 5B5B30B340 product type, ensuring clear fitment and planning accuracy.
Yes. EB1101 is explicitly designed for Control and Automation Board applications within IS2 enclosures. It features preassembled mounting plates and a kit-based installation approach that aligns with automation cabinet practices, reducing assembly time and ensuring consistent board positioning.
EB1101 carries CE conformity (Declaration of Conformity IS2), RoHS compliance with a 20250108 date, and REACH declarations. These certifications matter for regulatory compliance, procurement due diligence, and environmental responsibility across automation projects.
The preassembled kit reduces field labor and commissioning time, lowering total installation costs. Galvanized steel offers durable performance with minimal maintenance, while standardized mounting plates improve first-time right installations, supporting quicker project turnover and predictable maintenance planning.
