ABB EB1102 Control and Automation Board - CE Certified
Part Number: EB1102
Quick Summary
EB1102 is a control and automation board designed for IS2 enclosure systems in automation cabinets. Engineers often struggle with mounting compatibility and long lead times when retrofitting enclosures. It carries CE conformity, RoHS and REACH declarations, ensuring regulatory compliance across global facilities. Compatible IS2 enclosures for automation and the included galvanised crosspieces streamline installations, cut downtime, and support scalable, compliant automation projects. The kit is pre-assembled and uses galvanized steel crosspieces designed for robust, long-term performance in harsh environments. This combination reduces integration risk and helps procurement teams lock in predictable BOMs. Customers gain faster project delivery and lower total cost of ownership through standardized mounting, reduced fault points, and easier maintenance.
Product Information
Extended Description

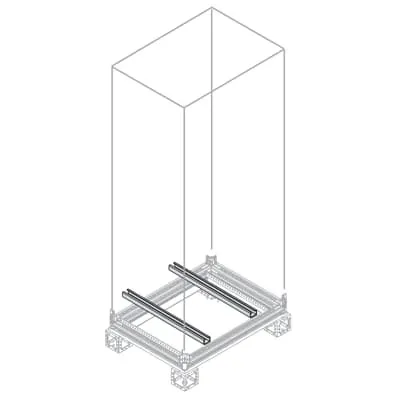

EB1102 ABB: N°2 crosspieces for fixing transf.D=1000
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
8. Crosspieces
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
5. Transoformer holder crosspieces
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
70 mm
Product Net Height
50 mm
Product Net Depth / Length
1000 mm
Product Net Weight
6.540 kg
Reference Depth/Length
1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
6.670 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit with eight crosspieces. Business Impact: Speeds installation, reduces mounting errors, and ensures consistent mounting geometry across enclosures. Application: Ideal for IS2 Enclosures for Automation in control and automation boards, fixing transf.D=1000 with reliable, repeatable mounting. Feature: Galvanized steel crosspieces for corrosion resistance. Business Impact: Extends service life in harsh industrial environments while minimizing maintenance cycles. Application: Suitable for long-term automation cabinet installations in challenging factory conditions. Feature: Compliance and standards alignment. Business Impact: Regulatory reassurance with CE conformity, RoHS, and REACH declarations reduces audit risk and accelerates global deployments. Application: EN/ISO-compliant automation projects requiring robust documentation and ETIM classification. Feature: IS2 enclosure compatibility and pre-assembled kit design. Business Impact: Lower engineering effort, faster procurement, and easier interchangeability with existing mounting accessories. Application: Scales across multiple ABB IS2 automation projects. Feature: Compact, well-defined dimensions and weight. Business Impact: Easy handling and transport, predictable fit within 1000 mm depth enclosures, and straightforward BOM planning. Application: Streamlines installation for standardized IS2 depth configurations and reduces project lead times.
Get a Quick Quote for a ABB EB1102
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB1102?
Enquire Now
FAQs
EB1102 ships as a pre-assembled mounting kit with two crosspieces designed for fixing transf.D=1000. To install, align the crosspieces with the enclosure mounting rails, secure with the supplied fasteners, and verify alignment using the IS2 Enclosures for Automation guidelines. Refer to the installation document 1STM604121R0006 for step-by-step assembly and to IS2 Enclosures Technical Catalogue 2024 for compatibility notes.
Yes. EB1102 is specifically specified for IS2 Enclosures for Automation and is provided as a pre-assembled mounting kit with 8 crosspieces. It is designed to fit standard IS2 mounting configurations and is categorized under mounting accessories (enclosure/cabinet) ETIM EC002625, ensuring reliable compatibility across automation projects.
EB1102 carries CE conformity, RoHS information, and a REACH declaration, helping you meet regulatory requirements across global manufacturing sites. The product is also referenced in ETIM 8 and ETIM 9 classifications, supporting standardized cataloging and procurement processes.
The kit features a net width of 70 mm, net height of 50 mm, and net depth of 1000 mm, with a product net weight of 6.540 kg. Package level 1 is a single unit weighing approximately 6.670 kg. These specs enable predictable fit within 1000 mm depth IS2 enclosures and straightforward handling in installs.
EB1102 provides faster installation, reduced downtime, and standardized mounting, which translates to lower total cost of ownership. Its galvanized steel crosspieces offer durable mounting in harsh environments, regulatory reassurance through CE/RoHS/REACH, and easier BOM planning, helping procurement and engineering teams complete projects on time and within budget.
