ABB EB4100 Control & Automation Board - IS2 Enclosures
Part Number: EB4100
Quick Summary
ABB EB4100 Control and Automation Board is engineered to support IS2 enclosure systems in factory automation deployments. The kit provides a pre-assembled crosspiece solution that simplifies mounting and improves alignment in 400 mm depth cabinets. Engineers often grapple with on-site fitment, irregular gaps, and supplier coordination; EB4100 minimizes these pain points by delivering two crosspieces pre-mounted for base installation. It carries CE conformity, RoHS compliance, and REACH declarations to meet international regulatory and environmental requirements. The IS2 compatibility ensures seamless integration with ABB mounting accessories and intermediate uprights, reducing engineering time and stocking complexity. In short, the EB4100 adds predictable install times, improves cabinet rigidity, and lowers total project risk while supporting scalable automation builds.
Product Information
Extended Description

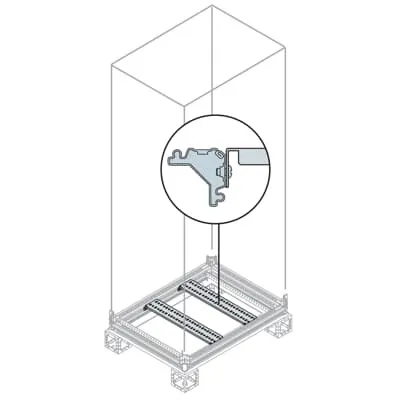

EB4100 ABB: N° 2 crosspieces mounted for base D=400mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
8. Crosspieces
Enclosure Type
Kit - crosspieces for intermediate uprights
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
1. Pair of crosspieces for base
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
150 mm
Product Net Height
35 mm
Product Net Depth / Length
400 mm
Product Net Weight
1.720 kg
Reference Depth/Length
400 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.720 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Galvanized steel crosspieces, included as a pair. Business Impact: Durable, corrosion-resistant mounting solution that extends enclosure life and reduces maintenance costs. Application: Suitable for base mounting in IS2 Enclosures for Automation. Feature: Pre-assembled mounting kit. Business Impact: Speeds up installation, minimizes on-site assembly errors, and lowers skilled labor requirements. Application: Fast-tracked panel builds in manufacturing environments.Feature: Defined footprint and cross-section. Business Impact: Standardized 150 mm width and 400 mm depth simplify procurement and enable consistent enclosure configurations across multiple line sizes. Application: Automation control boards requiring modular uprights.Feature: Material and compliance. Business Impact: Galvanized steel provides rigidity while RoHS and REACH compliance mitigate regulatory risk and support global deployments. Application: European and global automation projects with sustainability goals.Feature: Environment and compatibility data. Business Impact: Clear ETIM/EC classifications and IS2 catalogue alignment ensure easy supplier integration and future scalability. Application: New installations and retrofits within existing ABB IS2 ecosystems.
Get a Quick Quote for a ABB EB4100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB4100?
Enquire Now
FAQs
Yes. The EB4100 kit is designed as a crosspiece mounting solution for IS2 Enclosures for Automation, compatible with intermediate uprights and base assemblies. It ships as a pre-assembled kit with two crosspieces to streamline installation and ensure consistent alignment within 400 mm depth enclosures.
The EB4100 crosspieces are made from galvanized steel sheet, with a product net width of 150 mm, net height of 35 mm, and depth of 400 mm. The reference heights range from 1400 mm to 2200 mm, and the net weight is 1.720 kg, supporting robust, long-lasting mounting in automation cabinets.
Best suited for control and automation boards within IS2 Enclosures for Automation. The kit provides stable base mounting, reduces installation time, and supports scalable cabinet builds for multiple line heights (1400–2200 mm) and widths up to 1600 mm, enabling consistent module placement and serviceability.
EB4100 carries CE declarations of conformity, RoHS compliance with a RoHS date of 2025-01-08, and a REACH declaration indicating no substances above 0.1 mass percentage. WEEE classification notes product scope. These certifications ensure regulatory alignment for European and global deployments.
The pre-assembled crosspieces and standardized footprint reduce on-site labor and risk of misalignment, cutting commissioning time and rework costs. By leveraging IS2 compatibility and robust galvanized steel construction, you gain predictable install times, lower logistics complexity, and longer cabinet life, contributing to reduced downtime and improved ROI on automation projects.
