ABB EB4101 Other/Miscellaneous - CE Declaration of Conformity IS2
Part Number: EB4101
Quick Summary
ABB EB4101 mounting kit for IS2 enclosures streamlines control-board assembly in industrial automation. The kit helps address common pain points like misalignment, complex mounting steps, and inconsistent back-plate fits during enclosure builds. It carries CE conformity with a Declaration of Conformity IS2, RoHS compliance, and REACH information to support regulatory adherence. By delivering a pre-assembled mounting solution with galvanized steel plates, this kit reduces on-site installation time and ensures robust, repeatable mounting. For system integrators and OEMs, this translates to lower commissioning costs, improved traceability, and smoother procurement workflows with ABB’s IS2-compatible accessories.
Product Information
Extended Description

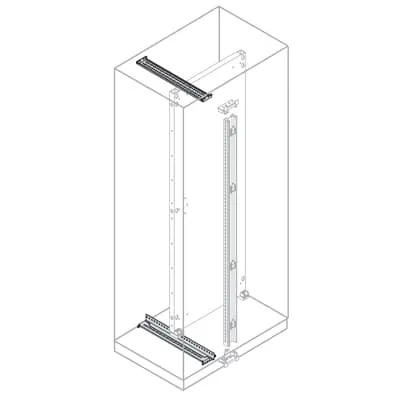

EB4101 ABB: N°2 sliding guides of back plate D=400mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
3. Partial mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
195 mm
Product Net Height
35 mm
Product Net Depth / Length
400 mm
Product Net Weight
1.90 kg
Reference Depth/Length
400 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.940 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: Kit provides a pre-assembled mounting plates solution for IS2 enclosures, reducing assembly time and field errors in control-board mounting across automation cabinets. This boosts productivity on the line and lowers commissioning risk, especially in high-volume deployments. Application: system integrators building multiple ABB IS2 based control panels can rely on a consistent back-plate alignment and faster board installation. Feature → Business Impact → Application: Galvanized steel sheet construction delivers corrosion resistance, maintaining mounting integrity in harsh factory environments. This extends component life and minimizes maintenance, ideal for continuous operation in automation cabinets. Application: installations exposed to dust, humidity, or industrial solvents benefit from durable mounting hardware that preserves alignment over time. Feature → Business Impact → Application: 2 sliding guides on the back plate (D=400 mm) support precise positioning of mounting components, reducing rework and improving repeatability. Application: turnkey control and automation board assemblies where precision and consistency are critical. Feature → Business Impact → Application: Compatibility with IS2 Enclosures for Automation confirms fit with Product Class: Control and Automation Board, aiding procurement and reducing mis-orders. Application: engineering teams sourcing mounting accessories for ABB IS2 systems. Feature → Business Impact → Application: Includes 3 partial mounting plates for configuration flexibility, enabling tailored layouts without extra parts. Application: small-batch or modular enclosure builds that require scalable mounting options. Feature → Business Impact → Application: RoHS Information and REACH Declaration ensure regulatory compliance for global deployments. Application: regulated environments needing green, compliant components. Feature → Business Impact → Application: Documentation references like 1STM604121R0006 simplify installation and maintenance, speeding up training and reduced service time. Application: field service crews performing routine upgrades or replacements.
Get a Quick Quote for a ABB EB4101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB4101?
Enquire Now
FAQs
EB4101 is a mounting kit designed for IS2 Enclosures for Automation, specifically supporting Control and Automation Boards. It uses galvanized steel mounting plates and offers pre-assembled, kit-based mounting with 2 back-plate sliding guides (D=400 mm). This ensures a precise fit and reduces integration errors during enclosure builds.
The kit arrives pre-assembled and includes mounting plates that are tailored for IS2 enclosures, eliminating custom fabrication steps. The 2 sliding guides simplify alignment, while the kit’s predefined dimensions align with the enclosure back plate, significantly cutting on-site mounting time and rework in factory or field installations.
Yes. EB4101 meets RoHS information requirements and includes a REACH declaration stating no substances over 0.1% mass in its composition. This facilitates regulatory compliance across regions and supports green procurement in automation projects.
EB4101 features a product net width of 195 mm and net depth of 400 mm, with reference heights at 1400 mm, 1600 mm, 1800 mm, 2000 mm, and 2200 mm, and reference widths at 400, 600, 800, 1000, and 1200 mm. It is compatible with IS2 Enclosures for Automation and supports mounting for Control and Automation Boards.
EB4101 includes installation guidance referenced as 1STM604121R0006, with access to the IS2 Enclosures Technical Catalogue 2024 for additional context. This documentation supports step-by-step mounting, compatibility checks (ETIM 8/9), and proper integration with ABB enclosure systems.
