ABB EB4860 Crosspieces Kit - IS2 Enclosures Accessory
Part Number: EB4860
Quick Summary
ABB EB4860 Crosspieces Kit provides mounting support for IS2 enclosure frames used in Control and Automation Boards. Engineers often struggle with lengthy on-site assembly and misalignment when expanding cabinet capacity. This kit carries RoHS information (date 20250108) and REACH declaration (date 20250108), along with a CE Declaration of Conformity IS2 for regulatory confidence. By delivering a pre-assembled mounting kit with galvanized steel crosspieces and fixed-side C-shaped supports, it enables scalable frame expansion, faster installation, and reliable accessory alignment, reducing downtime and total installation costs.
Product Information
Extended Description

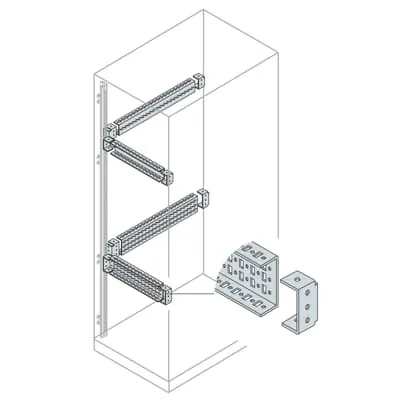

EB4860 ABB: N° 2 boxed crosspiece H 48 W 600
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
8. Crosspieces
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
4. Crosspieces "C" shaped side H=48 mm for fixing accessories and partial plate
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
50 mm
Product Net Height
48 mm
Product Net Depth / Length
600 mm
Product Net Weight
2.260 kg
Reference Depth/Length
600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.26 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature: Galvanized steel construction delivers durable, corrosion-resistant framing for IS2 enclosures. Business impact: longer service life reduces maintenance cycles and replacement costs in challenging plant environments. Application: ideal for Control and Automation Boards within automation cabinets where vibration and dust are common. Feature: Pre-assembled mounting kit with 8 Crosspieces and C-shaped sides (H=48 mm) for fixing accessories and partial plates. Business impact: speeds up on-site assembly, improves repeatability, and lowers commissioning time. Application: perfect for modular IS2 enclosures and rapid retrofits. Feature: Compact crosspieces with 50 mm width, 48 mm height, and 600 mm depth, weight 2.26 kg. Business impact: lightweight yet rigid framing that simplifies installation and transport. Application: suitable for standard 600 mm reference depth and frames up to 2200 mm high. Feature: Modular depth, height, and width options (600/800/1000 mm depth; 1400–2200 mm height; 600–1600 mm width). Business impact: enables precise matching to customer frames, reducing stock and waste. Application: supports scalable configurations across IS2 enclosures. Feature: Compliance and documentation (RoHS 20250108, REACH 20250108, CE Declaration IS2; WEEE non-scope; ETIM EC002625; eClass 27182807). Business impact: streamlines procurement, audits, and regulatory reporting. Application: aligns with IS2 Enclosures Technical Catalogue 2024 and installation manual 1STM604121R0006.
Get a Quick Quote for a ABB EB4860
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB4860?
Enquire Now
FAQs
The EB4860 kit is designed for IS2 enclosure frames and comes pre-assembled for rapid on-site use. Align the 50 mm wide crosspieces and 48 mm high supports with the enclosure rails, secure with standard fixing points, and attach the C-shaped side profiles to fix accessories and partial plates. The 600 mm depth matches IS2 configurations and supports modular height/width options for a clean, repeatable installation.
Critical metrics include 50 mm net width, 48 mm net height, and 600 mm net depth per crosspiece. The kit weighs approximately 2.26 kg per package, with 2 boxed crosspieces included. These specs ensure a light but sturdy mounting solution suitable for standard IS2 enclosure frames and 600 mm depth configurations.
Yes. The EB4860 Crosspieces Kit is explicitly listed as suitable for Control and Automation Board applications within IS2 Enclosures for Automation. It provides mounting hardware designed to support accessories and partial plates, improving rigidity and alignment for automated control panels in manufacturing environments.
The kit complies with RoHS (RoHS Date 20250108) and REACH (REACH Date 20250108) declarations, and includes a CE Declaration of Conformity IS2. It is categorized under ETIM EC002625 and eClass V11.1 27182807, with a WEEE status of Product Not in WEEE Scope. Documentation also references the IS2 Enclosures Technical Catalogue 2024 and installation manual 1STM604121R0006.
The kit reduces installation time with a pre-assembled mounting system, improves accessory alignment, and enables modular frame expansion without custom machining. This minimizes downtime, lowers labor costs, and supports scalable automation cabinet upgrades, delivering measurable ROI in project timelines and long-term maintenance.
