ABB EB5100 Crosspieces Kit - RoHS Compliant 20250108
Part Number: EB5100
Quick Summary
ABB EB5100 Crosspieces Kit is a mounting accessory that supports IS2 automation enclosures and enables secure base framing for a range of heights. Engineers frequently struggle to adapt base frames to varying enclosure widths and heights, causing installation delays. The kit carries CE conformity, RoHS compliance dated 20250108, and REACH declarations, with ETIM classifications for mounting accessories, ensuring regulatory alignment. Designed as a pre-assembled, galvanized steel solution, it delivers faster deployment, reduced field labor, and predictable performance, while integrating smoothly with IS2 enclosure lines and ABB mounting ecosystems for long-term reliability.
Product Information
Extended Description

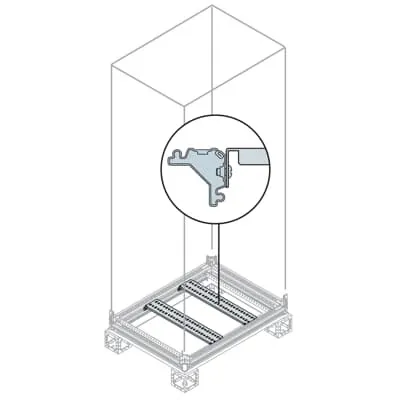

EB5100 ABB: N° 2 crosspieces mounted for base D=500mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
8. Crosspieces
Enclosure Type
Kit - crosspieces for intermediate uprights
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
1. Pair of crosspieces for base
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
140 mm
Product Net Height
33 mm
Product Net Depth / Length
390 mm
Product Net Weight
2.160 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.160 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
The galvanized steel crosspieces of the EB5100 kit provide robust corrosion resistance and durability in demanding automation environments, improving long-term reliability for IS2 enclosures and reducing replacement costs over the system life cycle, enabling faster integration with existing frames. The kit ships pre-assembled, which trims on-site labor and minimizes human error during mounting, accelerating project timelines and cutting commissioning downtime. Included in the package is a pair of crosspieces for base mounting, simplifying ordering and ensuring essential hardware is ready for installation, reducing planning friction and supply chain delays. Compatibility with IS2 enclosures for automation and the defined reference dimensions (500 mm base depth, 140 mm width, 390 mm depth) provide a predictable, plug-and-play fit across ABB’s mounting accessory family, lowering engineering risk and enabling scalable enclosure architectures. Compliance features, including RoHS and REACH declarations plus CE conformity, address audit-ready requirements and support regulatory compliance without additional sourcing steps, yielding lower total cost of ownership and improved customer confidence.
Get a Quick Quote for a ABB EB5100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB5100?
Enquire Now
FAQs
The EB5100 kit arrives pre-assembled as a mounting accessory designed for IS2 enclosures. It uses two crosspieces to bridge intermediate uprights and aligns with a 500 mm reference depth for a secure base. Installation involves mounting the kit to the enclosure framework, then attaching the crosspieces as per the IS2 mounting guidelines, reducing on-site assembly time.
Key specifications include Material: Galvanized steel sheet; Product Net Width: 140 mm; Product Net Height: 33 mm; Product Net Depth: 390 mm; Reference Depth: 500 mm; Weight: 2.160 kg. The kit is designed for IS2 enclosures, with compatible mounting for intermediate uprights and pre-assembled configuration for quick deployment.
Yes. The EB5100 kit carries a CE Declaration of Conformity IS2, RoHS information with RoHS Date 20250108, and a REACH declaration. It also notes REACH information stating no substances over 0.1 mass percentage, supporting regulatory audits and customer compliance requirements.
This kit is intended for mounting accessories in IS2 automation enclosures, specifically to support intermediate uprights with base depth 500 mm. It is ideal for control and automation board installations requiring robust, pre-assembled crosspieces that fit within defined dimensions and tolerances for modular enclosure systems.
EB5100 is designed to integrate with ABB’s IS2 enclosure ecosystem and meets ETIM classifications EC002625 for mounting accessories. It complies with RoHS/REACH requirements and CE declarations, ensuring compatibility with ABB mounting accessories and simplifying procurement, installation, and ongoing maintenance within automation projects.
