ABB EB5101 Control and Automation Board - IS2 Enclosures
Part Number: EB5101
Quick Summary
ABB EB5101 Control and Automation Board for IS2 enclosures enables scalable, cabinet-mounted automation integration. Enterprises often struggle with aligning mounting plates across varied enclosure widths and heights, causing installation delays and rework. This kit emphasizes CE conformity, RoHS compliance, and REACH declarations—helping you pass regulatory reviews with less effort. By delivering a precise, pre-assembled mounting solution with galvanized steel construction, it reduces on-site fabrication and improves mechanical integrity. Designed for IS2 enclosures and IS2-certified systems, the EB5101 translates into faster deployment, predictable maintenance intervals, and lower total cost of ownership. Coupled with adaptable reference dimensions and a compact footprint, it fits multiple project scales.
Product Information
Extended Description

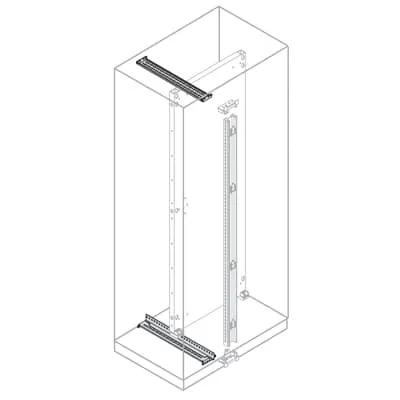

EB5101 ABB: N°2 sliding guides of back plate D=500mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
3. Partial mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
175 mm
Product Net Height
30 mm
Product Net Depth / Length
500 mm
Product Net Weight
2.530 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.580 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Two mounting plates and a pre-assembled kit, crafted from galvanized steel, ensure precise alignment and corrosion resistance. Business impact: Reduces field fabrication time and installation errors, lowering labor costs and downtime. Application: Ideal for control and automation board installations in IS2 enclosure systems across manufacturing floors. Feature: Adaptable reference dimensions with fixed product net dimensions allow a single kit to cover 400–1200 mm widths and 1400–2200 mm heights. Business impact: Minimizes SKU proliferation and simplifies design planning. Application: Supports IS2 enclosures for automation in process and discrete industries. Feature: CE Declaration of Conformity IS2, RoHS compliance, and REACH declarations. Business impact: Streamlines regulatory approvals and environmental compliance. Application: Suited for regulated manufacturing environments. Feature: Installation documentation and data resources—1STM604121R0006, IS2 Enclosures Technical Catalogue 2024, and Data Sheet. Business impact: Reduces technical support overhead and accelerates onboarding. Application: Engineering teams referencing IS2 documentation for quick integration. Feature: Weight and material robustness—net weight 2.530 kg, gross 2.580 kg, galvanized steel construction. Business impact: Optimizes shipping and on-site handling while improving durability. Application: Field installations and warehouse moves. Feature: Mounting Type Kit | Pre assembled with options for partial mounting plates. Business impact: Flexible deployment that minimizes material waste and accelerates commissioning. Application: Suitable for IS2 automation projects requiring adaptable mounting solutions.
Get a Quick Quote for a ABB EB5101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB5101?
Enquire Now
FAQs
The EB5101 is designed as a mounting kit for IS2 enclosures, including two mounting plates and a pre-assembled kit. It supports assembly of control and automation boards within IS2 enclosure systems, simplifying installation and reducing field customization.
Product Net Width is 175 mm, Product Net Depth 500 mm, Product Net Height 30 mm, with reference heights from 1400 to 2200 mm and reference widths from 400 to 1200 mm. Net weight is 2.530 kg (gross 2.580 kg).
Yes. It carries CE conformity for IS2 enclosures, RoHS information dated 20250108, and REACH declarations indicating no substances above 0.1% mass percentage. WEEE classification is noted as Product Not in WEEE Scope.
Documentation includes installation instructions 1STM604121R0006, IS2 Enclosures Technical Catalogue 2024, and the Data Sheet. These resources support quick onboarding and accurate integration in IS2 automation projects.
The kit reduces field fabrication, accelerates commissioning, and minimizes design SKU proliferation. Combined with regulatory compliance and durable galvanized steel construction, it lowers total cost of ownership and improves maintenance predictability for IS2 automation panels.
