ABB EB6100 Crosspieces Kit for IS2 Enclosures - RoHS
Part Number: EB6100
Quick Summary
ABB EB6100 Crosspieces Kit for IS2 Enclosures streamlines base integration for automation panels. This mounting accessory delivers pre-assembled crosspieces that simplify installation and reduce field labor. Engineers often confront delays when base components don’t align with uprights or enclosure depths, and last-minute modifications drive costs up. The kit carries CE conformity, RoHS compliance, and REACH declarations, with ETIM classification to confirm compatibility as a mounting accessory. By standardizing dimensions and delivering ready-to-install parts, it accelerates project schedules and improves rigidity across IS2 enclosure heights from 1400 to 2200 mm. Whether upgrading existing panels or deploying new lines, EB6100 supports faster commissioning and lower lifecycle costs while preserving mounting integrity and safety.
Product Information
Extended Description

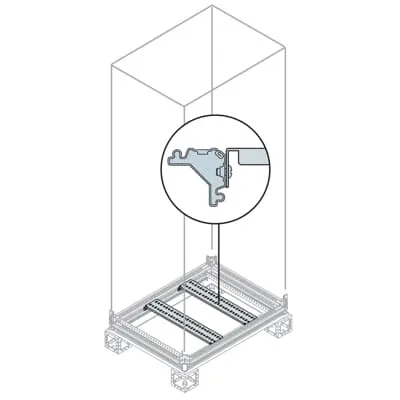

EB6100 ABB: N° 2 crosspieces mounted for base D=600mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
8. Crosspieces
Enclosure Type
Kit - crosspieces for intermediate uprights
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
1. Pair of crosspieces for base
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
135 mm
Product Net Height
23 mm
Product Net Depth / Length
490 mm
Product Net Weight
2.80 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.800 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Pre-assembled crosspieces save field assembly time, reducing installation hours and minimizing on-site measurement errors. For IS2 enclosures used in control and automation panels, this means a predictable, repeatable base that aligns with standard uprights, cutting commissioning time and accelerating time-to-value in new line upgrades. Galvanized steel construction provides corrosion resistance and long service life in harsh industrial environments, lowering maintenance and replacement costs. The kit weighs 2.80 kg and features a compact 135 mm net width, helping avoid conflicts with neighboring components while maintaining robust rigidity. Compatible with IS2 mounting accessories and intermediate uprights, EB6100 supports consistent mounting across enclosure widths from 400 to 1600 mm and heights from 1400 to 2200 mm. Installation is simplified by pre-assembly, reducing on-site errors and delivery lead times. The option includes one pair of base crosspieces, streamlining procurement and inventory management for multi-panel deployments.
Get a Quick Quote for a ABB EB6100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB6100?
Enquire Now
FAQs
To install, align the two crosspieces to the IS2 enclosure base, secure with standard mounting hardware, and verify alignment with the pre-assembled kit. EB6100 is designed for a 600 mm reference depth and fits enclosure widths and heights listed in the IS2 catalogue. Always reference the installation manual 1STM604121R0006 for step-by-step guidance and torque specifications to ensure reliable mounting.
Key specs include galvanized steel construction for corrosion resistance, a total weight of 2.80 kg, a net width of 135 mm, net depth of 490 mm, and a reference depth of 600 mm. The kit supports IS2 enclosure heights from 1400 to 2200 mm and widths from 400 to 1600 mm, enabling consistent, rigid mounting across different panel configurations.
Yes. The EB6100 is specifically categorized as a mounting accessory for IS2 enclosures and aligns with the Control and Automation Board product class. Its pre-assembled crosspieces and compatible dimensions simplify integration of control boards, improving reliability and reducing commissioning time for automation projects.
The EB6100 kit carries CE Declaration of Conformity IS2, RoHS information with date 20250108, and REACH declaration. It is classified under ETIM as mounting accessories (EC002625) and is positioned as a compliant, safe solution for industrial automation environments.
The pre-assembled kit reduces field labor and on-site fabrication time, translating to lower installation costs and faster project timelines. Its galvanized steel construction offers durable performance in harsh environments, lowering maintenance needs and extending service life. Consistent dimensions across multiple enclosure configurations also reduces spare parts and simplifies future upgrades.
