ABB EB6101 Control and Automation Board - CE IS2
Part Number: EB6101
Quick Summary
ABB EB6101 is a control and automation board designed for IS2 enclosures in automated manufacturing plants. Engineers often confront mounting mismatches and slow kit integration that can stall maintenance windows and increase downtime. This solution carries a CE Declaration of Conformity IS2, RoHS compliance dated 20250108, and a REACH declaration to support regulatory and sustainability goals. With a galvanized steel mounting kit and pre-assembled plates, it enables faster installation, predictable assembly, and scalable configurations for growing automation projects. In practice, this translates to reduced labor costs and improved audit readiness across multiple IEC standards and customer sites.
Product Information
Extended Description

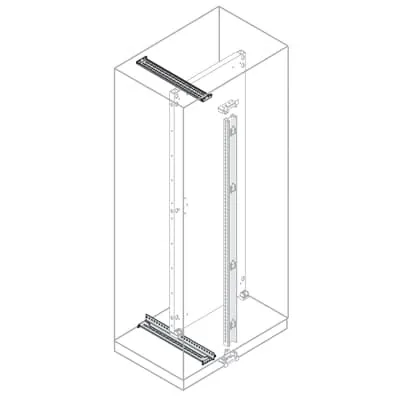

EB6101 ABB: N°2 sliding guides of back plate D=600mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
3. Partial mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
185 mm
Product Net Height
35 mm
Product Net Depth / Length
600 mm
Product Net Weight
3.790 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.870 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
The EB6101 ships as a kit with two mounting plates and a pre-assembled back-plate system that uses D=600 mm sliding guides for precise alignment, reducing on-site assembly steps and field misalignment. The galvanized steel construction provides robust corrosion resistance in harsh production environments, while keeping weight manageable at about 3.79 kg for easier handling and installation. Dimensions are tailored for IS2 enclosures, with a product net width of 185 mm, net height of 35 mm, and net depth of 600 mm, plus reference heights from 1400 to 2200 mm and reference widths from 400 to 1200 mm, ensuring versatile panel fits. With RoHS, REACH declarations, and a WEEE status of not in scope, compliance and sustainability are simplified. The mounting kit supports partial mounting plates and is offered as a kit that is pre-assembled for faster commissioning, reducing field rework and enabling predictable lead times. ETIM and eClass classifications (EC002625 and 27182807) enhance procurement accuracy and interoperability with enclosure systems.
Get a Quick Quote for a ABB EB6101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB6101?
Enquire Now
FAQs
ABB EB6101 is specifically designed for IS2 enclosures and ships as a pre-assembled mounting kit with two mounting plates to ensure precise alignment on back plates (D=600 mm). It fits IS2 enclosure families across common reference heights and widths, reducing customization time and wiring errors during panel assembly.
Key specs include galvanized steel mounting plates, product type 5B5B30B340, mounting kit with pre-assembled components, net width 185 mm, net height 35 mm, depth 600 mm, product net weight 3.790 kg, reference heights 1400–2200 mm, and reference widths 400–1200 mm. It also provides RoHS and REACH declarations and partial mounting plate options.
Yes. EB6101 is offered as a Kit | Pre assembled mounting solution with two mounting plates and sliding guides, enabling immediate installation in IS2 enclosure panels. This reduces on-site assembly steps, minimizes misalignment, and speeds commissioning while maintaining alignment accuracy and modular expandability for future upgrades.
EB6101 carries a CE Declaration of Conformity IS2, RoHS information with a 20250108 date, and a REACH declaration indicating no substances above 0.1 mass percent. WEEE status shows the product is not in WEEE scope. These certifications ensure regulatory compliance, safer material usage, and smoother audits across regional standards for industrial automation projects.
Using EB6101 reduces field assembly time and rework thanks to its pre-assembled mounting kit, improving uptime and predictability. The galvanized steel construction offers durability in harsh environments, lowering service intervals. Compliance with RoHS, REACH, and CE reduces regulatory risk, while standardized ETIM/eClass classifications streamline procurement and reduce sourcing costs.
