ABB EB6102 Crosspieces for IS2 Enclosures for Automation
Part Number: EB6102
Quick Summary
ABB EB6102 Crosspieces for IS2 Enclosures for Automation enable sturdy transformer mounting in automation panels. Engineers often confront delays when mounting accessories that don’t align with enclosure frames, forcing on-site improvisation. This kit delivers two galvanized crosspieces with a fixed 600 mm depth, pre-assembled for fast installation, and it carries CE conformity, RoHS information, and a REACH declaration to support compliant builds. It aligns with ETIM mounting accessories standards, reducing procurement risk. By choosing EB6102 crosspieces, system integrators can shorten assembly times, streamline spare parts, and improve serviceability in IS2 environments, while leveraging a durable galvanized steel construction for long-term reliability.
Product Information
Extended Description

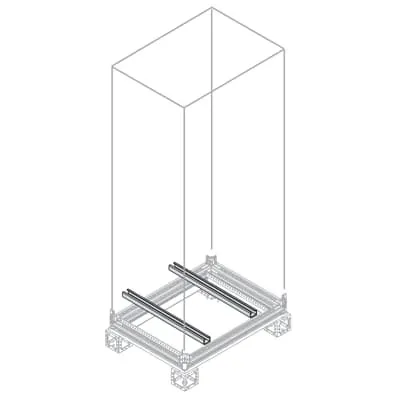

EB6102 ABB: N°2 crosspieces for fixing transf.D=600
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
8. Crosspieces
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
5. Transoformer holder crosspieces
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
70 mm
Product Net Height
50 mm
Product Net Depth / Length
600 mm
Product Net Weight
3.820 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.890 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Kit | Pre assembled mounting kit consisting of two galvanized crosspieces designed to fix transf. D=600. Business Impact: Accelerates panel build and reduces field adjustment time, lowering labor costs and project risk. Application: Particularly suitable for IS2 Enclosures for Automation in control panels. Feature: Material: Galvanized Steel sheet providing enhanced mechanical strength and corrosion resistance. Business Impact: Extends service life in harsh industrial environments; reduces maintenance costs. Application: Ideal for transformer mounting crosspieces within automation cabinets. Feature: Compatibility: Suitable For IS2 Enclosures for Automation; Product Class Control and Automation Board; ETIM EC002625 mounting accessories. Business Impact: Ensures seamless integration with ABB IS2 frames and downstream devices, minimizing misfit risks. Application: Great for integrated automation installations and modular cabinet upgrades. Feature: Installation: Pre-assembled kit; Reference Depth 600 mm; 2 crosspieces included; Options Provided: 5. Transformer holder crosspieces. Business Impact: Improves installation predictability and reduces on-site assembly time; supports quick upgrades. Application: Useful for IS2 enclosure configurations requiring fixed-depth crosspieces and transformer support. Feature: Compliance & Packaging: RoHS information, REACH declaration with 20250108 dates; WEEE Category: Product Not in WEEE Scope; Packaging details: 1 piece per package; Net weight 3.820 kg; Gross weight 3.890 kg. Business Impact: Supports regulatory traceability and simplifies logistics; reduces compliance risk and inventory complexity. Application: Recommended for regulated manufacturing environments and standardised procurement.
Get a Quick Quote for a ABB EB6102
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB6102?
Enquire Now
FAQs
To install, verify you have the EB6102 kit with two galvanized crosspieces, confirm IS2 enclosure compatibility, align the crosspieces with the enclosure mounting points, and secure them with the appropriate fasteners. Ensure the 600 mm depth matches your panel’s transformer mounting requirements and refer to the IS2 Enclosures Technical Catalogue 2024 for guidance.
Yes. EB6102 crosspieces are specified as suitable for IS2 Enclosures for Automation, designed as a pre-assembled mounting kit for ABB IS2 frames. They provide a ready-to-install solution that integrates with the enclosure’s mounting system and supports transformer mounting within standard IS2 configurations.
Yes. The EB6102 components include RoHS information with a 20250108 RoHS date and a REACH declaration also dated 20250108. The product is specified as not containing substances above 0.1 mass percent per REACH information, supporting regulatory compliance in regulated environments.
Using EB6102 crosspieces provides a pre-assembled, galvanized steel mounting solution that supports transf D=600, reducing assembly time and field customization. The fixed depth and transformer-holder options streamline panel design, improve install consistency, and enhance reliability in automation cabinets.
The product net weight is 3.820 kg with a package gross weight of 3.890 kg. Packaging includes 1 piece per unit. Net width is 70 mm, net height 50 mm, and net depth 600 mm, with a reference depth of 600 mm and reference height options up to 2000 mm depending on enclosure size. This supports accurate BOM planning.
