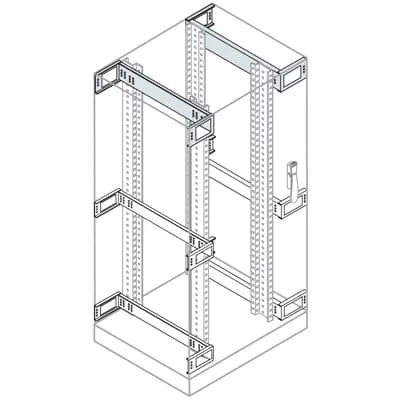

ABB EB6104 19" Rack Structure - IS2 Enclosures
Part Number: EB6104
Quick Summary
ABB EB6104 is a 19" rack structure for IS2 automation enclosures, enabling scalable control-panel mounting. Engineers often struggle with modular mounting in tight spaces and keeping up with CE, RoHS, and REACH requirements across automation projects. This kit ships with a CE conformity declaration, RoHS with a 20250108 date, and REACH information, ensuring regulatory readiness from design through deployment. Integrated with a pre-assembled mounting kit—cranked uprights, brackets and crosspieces—it reduces on-site assembly time and limits field rework, delivering faster deployments and lower total cost of ownership. Designed for IS2 enclosures and 13.19" rack structures, it supports scalable configurations for control cabinets and automation mounting solutions. Its galvanized steel build also resists corrosion in demanding environments, enhancing reliability and lifecycle value.
Product Information
Extended Description
EB6104 ABB: N°2 top crosspieces D=600
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
3. Cranked shaped uprights, Brackets, Crosspieces
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
113 mm
Product Net Height
751 mm
Product Net Depth / Length
600 mm
Product Net Weight
2.660 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.660 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit with cranked uprights, brackets and crosspieces → Business Impact → Application: Accelerates installation, reduces field wiring rearrangements, improving project timelines; ideal for IS2 automation cabinets and modular control panels. Feature: Galvanized steel sheet construction → Business Impact → Application: Increased durability and corrosion resistance in harsh environments, lowering maintenance costs for long-term automation deployments. Feature: 800 mm reference width and 600 mm depth with 1400–2200 mm height options → Business Impact → Application: Flexible sizing to fit diverse control architectures and equipment footprints in automation cabinets. Feature: Compatibility with 13.19" rack structures and mounting accessories → Business Impact → Application: Seamless integration with existing rack systems and ETIM-aligned procurement. Feature: RoHS, REACH declarations and CE conformity → Business Impact → Application: Regulatory compliance reduces risk and accelerates commissioning on factory floors.
Get a Quick Quote for a ABB EB6104
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB6104?
Enquire Now
FAQs
The EB6104 kit arrives as a pre-assembled mounting system with cranked uprights, brackets and crosspieces. Install by aligning the 800 mm width and 600 mm depth with the enclosure rails, securing uprights to the enclosure frame, then attaching crosspieces and brackets for rack-mounted equipment. The process minimizes on-site wiring changes and ensures secure, scalable mounting for automation panels.
Key dimensions include a reference width of 800 mm, depth of 600 mm, and available heights from 1400 to 2200 mm. The product net weight is 2.660 kg, with a package weight around 3.660 kg. The material is galvanized steel, offering durability and corrosion resistance suitable for demanding automation environments.
Yes. EB6104 is designed for IS2 enclosures and supports 13.19" rack structures, making it highly suitable for automation control cabinets. The kit provides a robust mounting platform for PLCs, I/O modules, and other automation hardware, while its CRS uprights and crosspieces accommodate future expansions and reconfigurations.
EB6104 carries CE conformity with a formal Declaration of Conformity for IS2, and RoHS information dated 20250108 alongside a REACH declaration. This ensures regulatory compliance across design, manufacturing, and deployment, reducing compliance risk and facilitating smoother procurement and installation in regulated industries.
Using EB6104 typically reduces installation time by enabling a pre-assembled mounting kit and standardized components, which lowers field wiring and assembly effort. The durable galvanized steel construction minimizes maintenance, while CE/ RoHS/ REACH compliance mitigates regulatory risk, contributing to faster time-to-value and lower total cost of ownership for automation projects.
