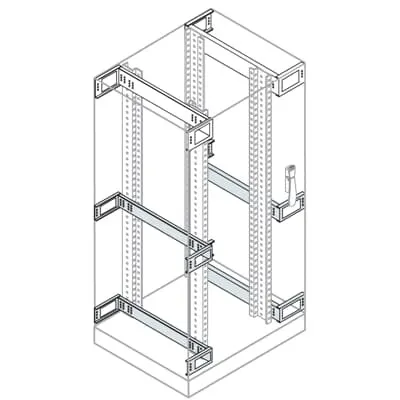

ABB EB6106 19\" Rack Structure - CE IS2
Part Number: EB6106
Quick Summary
ABB EB6106 19\" Rack Structure is a mounting solution for IS2 enclosure systems used in automation projects. This kit minimizes on-site assembly time and reduces misalignment risk during panel installation. It ensures CE conformity (IS2) and RoHS/REACH compliance, supporting regulatory reviews and supplier audits. Designed for IS2 enclosure applications, it delivers a robust, galvanized steel backbone that streamlines procurement and lowers total cost of ownership. The pre-assembled design speeds commissioning and provides a reliable enclosure backbone, improving install predictability for panel builders and system integrators.
Product Information
Extended Description
EB6106 ABB: N°2 central/bottom crosspieces D=600
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
3. Cranked shaped uprights, Brackets, Crosspieces
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
86 mm
Product Net Height
751 mm
Product Net Depth / Length
600 mm
Product Net Weight
2.020 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.020 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature Galvanized steel construction → Business impact Enhanced durability and corrosion resistance in harsh industrial environments, reducing maintenance cycles. Application Ideal for IS2 enclosures in automation cabinets and control rooms, delivering long-term reliability. Feature Pre-assembled kit with cranked uprights, brackets, crosspieces → Business impact Faster start-up and fewer field assembly errors, lowering labor costs and commissioning time. Application Suitable for 13. 19\" rack structures and standard 19\" mounting, enabling plug-and-play integration in existing panels. Feature Dimensions and weight (86 mm W x 751 mm H x 600 mm D, 2.020 kg) → Business impact Predictable enclosure footprint and manageable weight for safe handling and installation. Application Fits within reference dimensions (800 mm width, 600 mm depth) to complement IS2 mounting rails. Feature Material and compliance (Galvanized Steel, RoHS, REACH) → Business impact Ensures regulatory compliance and end-to-end traceability for audits. Application Supports ETIM mounting accessories compatibility and IS2 catalogue integration, reducing procurement variance. Insight The kit design anticipates common field challenges such as misalignment and improper bracketing; engineers benefit from a consistent, repeatable mounting backbone that speeds integration and reduces change orders.
Get a Quick Quote for a ABB EB6106
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB6106?
Enquire Now
FAQs
EB6106 is supplied as a pre-assembled rack structure kit that fits IS2 enclosure systems and standard 19\" rack frameworks. Begin by positioning the uprights to align with the enclosure mounting points, attach crosspieces and brackets, then secure to the frame using the provided fasteners. The galvanized steel construction provides rigidity, while the adjustable reference dimensions help accommodate slight variances in enclosure sizes. This approach reduces field assembly time and minimizes misalignment errors during panel seating and component mounting.
Key specs include product net width of 86 mm, height of 751 mm, depth of 600 mm, and a product net weight of 2.020 kg. The material is galvanized steel, offering corrosion resistance suitable for industrial environments. The kit is designed for 13. 19\" rack structures and IS2 enclosures, enabling robust mechanical support with predictable load distribution. Benefits include faster commissioning, improved panel rigidity, and durable mounting that supports long-term reliability in automation cabinets.
Yes. EB6106 is specifically specified for IS2 Enclosures for Automation and is compatible with 13. 19\" rack structures as a mounting accessory. Its pre-assembled kit design reduces installation complexity and aligns with IS2 technical catalogs. It is well-suited for automation panels, control cabinets, and other IS2-based enclosure configurations where a reliable 19\" rack backbone is required.
EB6106 carries a CE Declaration of Conformity (IS2) and conforms to RoHS and REACH requirements. This supports regulatory compliance in European markets and supply-chain audits. WEEE categorization indicates the product isn’t separately tracked under WEEE scope in typical recycling streams. Together, these certifications help reduce regulatory risk during procurement and integration of enclosure systems.
The pre-assembled EB6106 rack structure reduces on-site labour, speeds commissioning, and lowers change-order risk, delivering a tangible ROI through faster time-to-operational panels. Ongoing maintenance is minimized by the galvanized steel chassis, which resists corrosion and reduces component replacement needs. For procurement, its compatibility with standard IS2 enclosures and ETIM-listed mounting accessories simplifies sourcing and long-term lifecycle planning.
