ABB EB8101 Control and Automation Board - CE Certified
Part Number: EB8101
Quick Summary
ABB EB8101 Control and Automation Board delivers robust control and automation capabilities for IS2 enclosure projects. Engineers often wrestle with expensive mounting solutions, compatibility gaps, and extended installation times. This solution carries CE conformity, RoHS and REACH compliance to meet regulatory demands and marketplace expectations. By combining galvanized steel mounting plates with a pre-assembled kit, it accelerates deployment and reduces overall lifecycle costs. The kit includes two mounting plates and partial mounting options to adapt to a range of IS2 enclosure configurations. Its fixed reference depths and selectable heights support scalable panel builds across widths from 400 to 1200 mm, ensuring repeatable installations and predictable maintenance.
Product Information
Extended Description

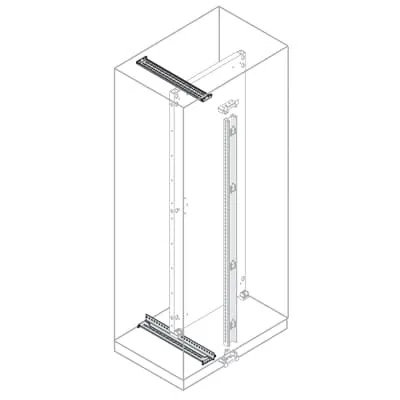

EB8101 ABB: N°2 sliding guides of back plate D=800mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
3. Partial mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
185 mm
Product Net Height
30 mm
Product Net Depth / Length
800 mm
Product Net Weight
5.060 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
5.160 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Kit includes two mounting plates and a pre-assembled design. Business Impact: Speeds up installation, reduces field assembly errors, and lowers labor costs during panel commissioning. Application: Ideal for IS2 Enclosures for Automation where rapid deployment is critical. Feature: Galvanized steel sheet construction. Business Impact: Enhanced durability and corrosion resistance for harsh industrial environments, extending service life and reducing replacement cycles. Application: Suitable for factory floors, outdoor enclosures, and washdown areas. Feature: Clear dimensional references including Product Net Width, Net Depth, and Reference Heights/Widths. Business Impact: Enables accurate planning and repeatable panel builds across multiple IS2 enclosure configurations, minimizing design iterations. Application: Use in multi-width installations from 400 mm to 1200 mm and heights from 1400 mm to 2200 mm. Feature: Options Provided with partial mounting plates and pre-assembled kit. Business Impact: Reduces custom fabrication needs and accelerates start-up. Application: Fast-track integration in standard automation projects. Feature: Compliance and standards support including RoHS, REACH, and CE declarations. Business Impact: Lowers regulatory risk and streamlines procurement with supplier transparency. Application: Proves conformity for industrial markets and global deployments. These benefits reflect real-world outcomes, such as faster project delivery, lower total cost of ownership, and improved maintenance planning for IS2 enclosure systems.
Get a Quick Quote for a ABB EB8101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB8101?
Enquire Now
FAQs
EB8101 is designed as a pre-assembled mounting kit for IS2 enclosure systems, including two mounting plates that fit standard IS2 backplanes. It supports widths of 400 to 1200 mm and a fixed depth of 800 mm, enabling rapid panel assembly. Compatibility with IS2 enclosures minimizes additional fabrication, reduces risk of misalignment, and shortens commissioning time.
The kit uses galvanized steel sheet for durability and corrosion resistance. Net dimensions include a width of 185 mm and a depth of 800 mm, with reference heights from 1400 to 2200 mm and reference widths from 400 to 1200 mm. The product weight is 5.060 kg, and the package gross weight is 5.160 kg, making handling straightforward during installation.
Yes. EB8101 is specifically targeted at control and automation boards used in IS2 enclosure environments. Its mounting plates kit supports pre-assembled configurations, enabling repeatable, scalable panel builds across multiple widths and heights, which is ideal for production lines, process automation, and control cabinets.
EB8101 carries a CE declaration of conformity and is aligned with RoHS and REACH requirements. WEEE categorization places it outside certain disposal scopes. These certifications and declarations help ensure regulatory compliance across global markets and simplify supplier qualification and procurement processes.
By delivering a pre-assembled mounting kit with two plates and partial mounting options, EB8101 reduces field engineering and fabrication effort, cutting installation time and labor costs. The standardized dimensions and IS2 compatibility support faster project ramp-up, improved predictability, and lower total cost of ownership over the panel’s life cycle.
