ABB EB8106 Control Rack Kit - IS2 Automation Enclosures
Part Number: EB8106
Quick Summary
EB8106 control rack kit provides a modular mounting solution for IS2 automation enclosures. Engineers often waste valuable time sourcing uprights, brackets, and crosspieces, delaying project commissioning. It carries CE Declaration of Conformity IS2, RoHS compliance with a 20250108 date, and REACH information and declaration to help meet regulatory requirements. The kit uses galvanised steel and a 19 inch rack structure to deliver a durable, scalable backbone for control cabinets in automation systems. Designed for IS2 Enclosures for Automation, it supports a compact footprint while allowing quick upgrades and easier maintenance. With pre-assembled mounting and cranked uprights, installation is faster and safer, reducing field labor and error-prone assembly.
Product Information
Extended Description

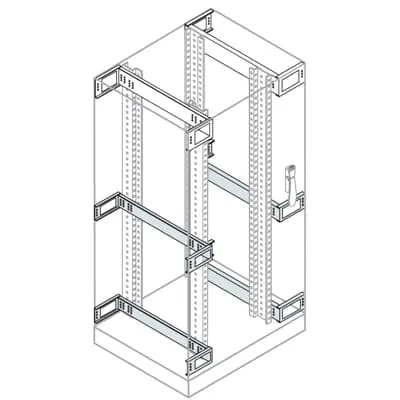

EB8106 ABB: N°2 central/bottom crosspieces D=800
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B340
Material
Galvanized Steel sheet
Options Provided
3. Cranked shaped uprights, Brackets, Crosspieces
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
86 mm
Product Net Height
951 mm
Product Net Depth / Length
800 mm
Product Net Weight
2.560 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.560 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Galvanised steel 19 inch rack structure provides robust corrosion resistance and long service life, reducing replacement costs and downtime in harsh industrial environments. Business Impact: Higher uptime and lower lifecycle costs for IS2 automation enclosures, enabling predictable maintenance budgets. Application: Suitable for continuous operation in manufacturing lines and process control cabinets. Feature: Kit with pre assembled mounting components including cranked uprights, brackets, and crosspieces lowers installation complexity. Business Impact: Faster project start, fewer on-site errors, and reduced commissioning time. Application: Ideal for panel builders delivering turnkey control cabinets for automation projects.Feature: Compact product net width of 86 mm with a reference depth of 800 mm and a versatile reference height range of 1400–2200 mm; Weight 2.560 kg. Business Impact: Optimized enclosure footprint, easier cable routing, and scalable rack solutions for varying heights. Application: Efficient in space-constrained control rooms and modular automation architectures.Feature: IS2 compatibility and 13. a 19" rack structure with included mounting accessories. Business Impact: Seamless interoperability with standard automation hardware and backplanes, reducing sourcing risk. Application: Streamlined integration in IS2 Enclosures for Automation environments.Feature: Compliance coverage including CE, RoHS, and REACH declarations. Business Impact: Regulatory risk mitigation and faster time-to-commission in global sites. Application: Essential for automotive, process, and general industrial automation deployments.
Get a Quick Quote for a ABB EB8106
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EB8106?
Enquire Now
FAQs
Yes. The EB8106 is designed as a 13.19 inch rack structure that matches IS2 enclosures and includes a pre-assembled mounting kit with cranked uprights, brackets and crosspieces, ensuring seamless integration with standard 19 inch equipment. This reduces custom fabrication and accelerates panel assembly.
Key dimensions are Product Net Width 86 mm, Product Net Height 951 mm, Product Net Depth 800 mm, with a weight of 2.560 kg. Reference height options span 1400 to 2200 mm. These specs support compact yet scalable enclosure design and predictable fit within standard automation cabinets.
EB8106 is ideal for IS2 Enclosures for Automation, providing a sturdy backbone for mounting control and automation boards. Its galvanized steel construction and included mounting accessories support rugged environments common in manufacturing, process automation, and machine control panels.
The EB8106 carries a CE Declaration of Conformity IS2, RoHS information with a 20250108 date, and a REACH declaration. ETIM 8/9 classifications, and eClass V11.1 codes further support interoperability and regulatory compliance across global sites.
Pre-assembled mounting reduces installation time and field labor, while galvanised steel offers durable longevity and resistance to corrosion. The wide range of reference heights enables scalable cabinets, delivering faster ROI through lower maintenance and easier upgrades in automation architectures.
