ABB EC1811K Door - ETIM EC000747, CE Declaration
Part Number: EC1811K
Quick Summary
ABB EC1811K Door secures control panels with a rugged, pre-assembled enclosure door for industrial facilities. It helps engineers overcome installation delays and noncompliance risks by delivering a ready-to-install assembly that fits standard cabinet footprints. The solution carries CE conformity, RoHS and REACH compliance, ensuring regulatory alignment across markets. By pairing a pickled steel door with a durable orange peel finish (RAL 7035) and a single blind-side door option, this enclosure face delivers reliable protection while simplifying procurement, installation, and maintenance for growing automation projects.
Product Information
Extended Description

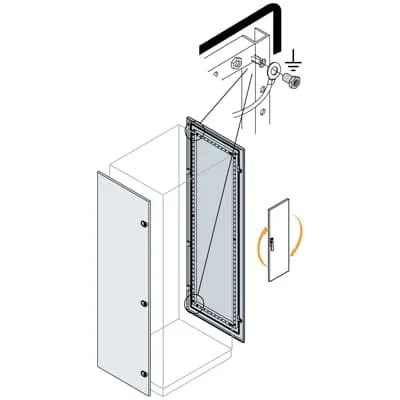

EC1811K ABB: Blind side door 1800x1000mm (HxD)
Accessory Type
3. Other doors
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
1. Blind side door
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
994 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
22.520 kg
Reference Depth/Length
1000 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
22.980 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit reduces on-site labor and speeds commissioning. Business Impact: Shorter project timelines and lower field labor costs. Application: New manufacturing lines and retrofits for control panels. Feature: Pickled steel sheet construction with orange peel RAL 7035 finish. Business Impact: Enhanced durability and consistent aesthetics across environments. Application: Industrial enclosures subjected to frequent opening/closing and dust exposure. Feature: Dimensions and compatibility with 400–1200 mm width variants; net width 994 mm; height 1796 mm; depth 46 mm; weight 22.520 kg. Business Impact: Flexible integration with multiple enclosure footprints, predictable serviceability. Application: IS2 enclosures and standard control cabinet configurations. Feature: Certifications and documentation including CE Declaration, RoHS and REACH compliance, IS2 catalogue reference. Business Impact: Simplified regulatory clearance and supplier reliability. Application: Regulated markets and multi-site deployments. Feature: Optional blind side door and ETIM classification EC000747. Business Impact: Customization for access control and standardized data management. Application: Safe maintenance and interoperability with ETIM-enabled procurement systems.
Get a Quick Quote for a ABB EC1811K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC1811K?
Enquire Now
FAQs
The EC1811K is designed for IS2 enclosure systems and aligns with the IS2 Enclosures Technical Catalogue 2024. It uses a standard pre-assembled mounting kit and supports reference dimensions that fit common IS2 cabinet footprints, reducing integration guesswork and ensuring reliable panel protection in industrial environments.
Key specs include a single door with a pre-assembled mounting kit, material from pickled steel sheet finished in orange peel RAL 7035, and a net width of 994 mm, net height of 1796 mm, and net depth of 46 mm. It supports reference widths of 400, 600, 800, 1000, and 1200 mm and weighs approximately 22.520 kg.
Yes. The EC1811K carries a CE Declaration of Conformity, RoHS information with a RoHS date of 20250108, and a REACH declaration (with REACH date 20250108). It also notes REACH information indicating no substances above 0.1 mass percentage, supporting regulatory compliance across markets.
The door is supplied as a Kit | Pre assembled, which minimizes field assembly and alignment steps. The 1-piece package level and pre-assembled mounting approach streamline procurement and on-site installation, reducing commissioning time and enabling faster production line readiness.
Ideal for control panels and automation cabinets in manufacturing, process industries, and industrial automation projects, the EC1811K supports IS2 enclosure standards. Its dimensions and finish (orange peel, RAL 7035) provide robust protection and a consistent appearance across multiple plants and environments.
