ABB EC1831K Enclosure - 300x1800x400, RAL 7035
Part Number: EC1831K
Quick Summary
ABB EC1831K Enclosure provides a durable control and automation housing for industrial electrical panels and control boards. In practice, engineers wrestle with limited space, misaligned doors, and challenging cabling layouts that drive downtime. The enclosure supports CE Declaration of Conformity and RoHS and REACH compliance, with ETIM EC000747 and eClass 27182204 classifications to streamline parts management. This kit-based, blind-front door design simplifies mounting and future upgrades, while the robust steel construction and RAL 7035 finish fit common plant aesthetics. For industrial automation projects, it delivers reliable enclosure performance, supporting scalable control cabinet deployments and simplified maintenance workflows.
Product Information
Extended Description

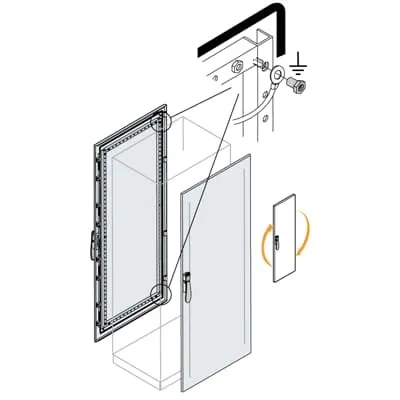

EC1831K ABB: Blind front/rear door exterbal cable container 1800x300mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind front door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
294 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
9.50 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm
Reference Height
1800 mm
Reference Width
300 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
9.690 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Kit-based, blind-front door enclosure. Business Impact: Simplifies on-site assembly, reduces installation time, and enables easy future upgrades. Application: Ideal for control cabinet housing in new lines or plant expansions. Feature: Pickled steel sheet with orange peel finish in RAL 7035. Business Impact: Delivers durable corrosion resistance and a consistent aesthetic across facilities. Application: Suitable for harsh factory environments and standardized panel interiors. Feature: Tight dimensional footprint with defined net width 294 mm, net height 1796 mm, net depth 46 mm. Business Impact: Optimizes space planning and cable routing while maintaining accessibility. Application: Used where compact, high-density enclosures are required. Feature: Regulatory compliance with RoHS and REACH (dates 20250108) and CE conformity. Business Impact: Eases procurement risk and regulatory audits. Application: Supports compliant panel build across automotive, process, and packaging lines. Feature: ETIM EC000747 and eClass 27182204 classifications. Business Impact: Facilitates SKU standardization and streamlined sourcing. Application: Improves ERP and procurement workflows for IS2 enclosure families. Feature: Weight around 9.50 kg with reference depth options 400–800 mm. Business Impact: Lightweight yet sturdy for handling and installation, lowering logistics costs. Application: Fits varied rack depths and mounting configurations in regional plants.
Get a Quick Quote for a ABB EC1831K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC1831K?
Enquire Now
FAQs
For installation, prepare a sturdy mounting surface and verify the mounting footprint aligns with the enclosure width of 294 mm and height of 1796 mm. Use the kit-based mounting type to attach the enclosure frame, then install interior panels and cable trays before securing the blind-front door. Refer to the IS2 Enclosures Technical Catalogue and installation manual 1STM604121R0006 for step-by-step guidance.
Key dimensions include a net width of 294 mm, net height of 1796 mm, and net depth of 46 mm, with reference depth options of 400 mm to 800 mm. The product weight is 9.50 kg, making it manageable for shipping and installation. The overall external footprint aligns with a 300 mm width and 1800 mm height in the product description.
Yes. The EC1831K is designed as a single-door, kit-based enclosure for control cabinets and automation boards. It uses pickled steel with an orange-peel finish in RAL 7035, supports a blind-front door, and complies with CE, RoHS, and REACH requirements, making it appropriate for demanding manufacturing and process environments.
The enclosure carries a CE Declaration of Conformity and RoHS/REACH compliance. It is classified under ETIM EC000747 and eClass V11.1 27182204, with references to IS2 enclosures in the 2024 technical catalogue, ensuring compatibility with standard parts management and regulatory expectations.
The EC1831K offers regulatory compliance, durable steel construction, and a user-friendly kit assembly that reduces installation time and field wiring complexity. These factors translate into lower downtime, streamlined procurement via ETIM/eClass alignment, and predictable maintenance, contributing to faster project ramp-up and improved total cost of ownership in automation projects.
