ABB EC1860K Control and Automation Board - CE/ETIM EC000747
Part Number: EC1860K
Quick Summary
ABB EC1860K is a control and automation board designed for robust cabinet assemblies in factory automation environments. Engineers often grapple with fitting large enclosures into tight spaces while keeping access for maintenance. The unit carries CE conformity with a Declaration of Conformity IS2, RoHS and REACH compliance, plus ETIM EC000747 for predictable procurement. With a 600x1800 mm footprint, orange-peel finish in RAL 7035 and a kit-based blind front door, it streamlines installation and long-term maintenance, while the kit-based mounting supports flexible backplane options; this translates to faster deployment and lower lifecycle risk for industrial automation deployments. In practice, you gain predictable fit, simpler maintenance access, and a solid basis for regulatory audits when deploying enclosure-based control systems.
Product Information
Extended Description

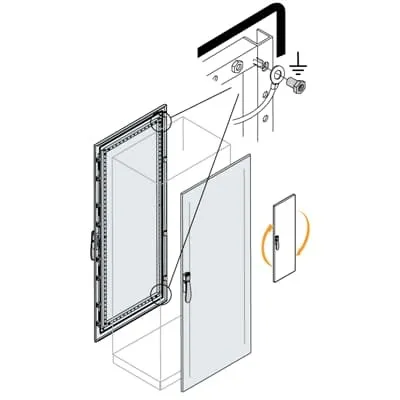

EC1860K ABB: Blind door 1800x600mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind front door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
18.830 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
19.220 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: Enclosure kit with blind front door simplifies installation and reduces field modifications, accelerating panel assembly and service access in tight plant spaces, enabling faster project delivery for packaging and automotive lines. Feature → Business Impact → Application: Pickled steel with orange-peel finish in RAL 7035 delivers durable surface protection against corrosion and wear, extending enclosure life in harsh factory environments such as metalworking and food & beverage lines. Feature → Business Impact → Application: Standardized 600x1800 mm footprint with 594 mm net width and 46 mm depth provides predictable mounting within common frame rails, reducing BOM variance and enabling immediate compatibility across multiple backplane configurations. Feature → Business Impact → Application: CE, RoHS, and REACH compliance, plus ETIM EC000747, simplifies regulatory approvals and parts sourcing, lowering audit risk and procurement complexity in regulated sectors like chemicals and power generation. Feature → Business Impact → Application: 18.83 kg net weight and 19.22 kg packaged weight balance rugged protection with manageable handling, improving logistics and on-site installation efficiency in large-scale installations. Feature → Business Impact → Application: Comprehensive documentation and a standard installation manual (1STM604121R0006) support quicker commissioning and reduced training time for maintenance teams in both new builds and retrofit projects.
Get a Quick Quote for a ABB EC1860K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC1860K?
Enquire Now
FAQs
The EC1860K uses a kit mounting approach with a blind front door designed for 600 mm wide enclosures. It supports reference depths from 400 to 1000 mm and a net width of 594 mm, ensuring compatibility with common 600 mm cabinet frames and simplifying integration with existing backplanes and panel hardware. This reduces custom fabrication and accelerates panel assembly.
EC1860K carries a Declaration of Conformity to CE standards, RoHS information with a 20250108 RoHS date, and REACH information with a 20250108 REACH date. It is classified under ETIM 8 EC000747 and ETIM 9 EC000747, with an IS2 Enclosures Technical Catalogue reference. These certifications support regulatory compliance, safer sourcing, and streamlined audits.
Yes. With a reference height of 1800 mm and reference width of 600 mm, plus a single door configuration, the unit is designed for tall, high-density control panels. The kit mounting and blind-front door design preserve clean access to components while maintaining robust protection in demanding environments such as process automation and packaging lines.
The enclosure uses pickled steel sheet with an orange-peel surface finish in RAL 7035, providing durable exterior protection. The finish withstands routine cleaning and operation in industrial settings, while the steel construction offers structural rigidity. Net weight is 18.83 kg, with a packaged weight of 19.22 kg, aiding predictable handling and transport.
Installation benefits include kit-based mounting, standard depth options, and a clear 600x1800 mm footprint that fit common frames, enabling faster commissioning. The regulatory compliance (CE, RoHS, REACH) reduces risk in audits, while standardized dimensions lower BOM complexity and total cost of ownership over the panel’s life cycle.
