ABB EC1861K Door/Operating Panel - CE Declaration IS2
Part Number: EC1861K
Quick Summary
The ABB EC1861K is a rugged door/operating panel for control enclosures in industrial cabinets. Engineers often face retrofit delays caused by mounting mismatches, inconsistent surface finishes, and unclear installation steps. This unit carries CE Declaration of Conformity IS2, RoHS compliance dated 20250108, and REACH declarations, ensuring regulatory alignment across electrical rooms. With a pre-assembled mounting kit, a single blind-side door option, and a durable orange-peel finish in RAL 7035, it delivers faster commissioning and long-term corrosion protection. By matching reference dimensions for 600 mm depth and expandable widths up to 1200 mm, it supports scalable control architectures while reducing spare parts and field modifications.
Product Information
Extended Description

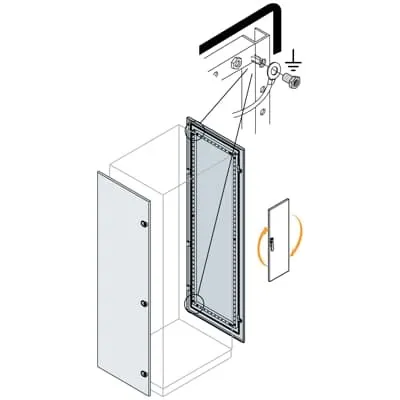

EC1861K ABB: Blind side door 1800x600mm (HxD)
Accessory Type
3. Other doors
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
1. Blind side door
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
13.520 kg
Reference Depth/Length
600 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
13.790 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit reduces field labor and installation time → Business Impact: Accelerates project timelines and lowers on-site costs → Application: New control panels and enclosure retrofits in automation projects. Feature: Single door with optional blind-side door improves access control and modularity → Business Impact: Simplifies wiring and service access, cutting downtime during maintenance → Application: Electrical cabinet upgrades in machine builds and process lines. Feature: Orange peel surface finishing, RAL 7035 provides durable aesthetics and easier cleaning → Business Impact: Longer service intervals and reduced repaint costs → Application: Harsh factory environments with frequent handling. Feature: Pickled steel sheet construction delivers robust mechanical protection → Business Impact: Enhanced enclosure longevity and lower replacement risk → Application: Industrial automation enclosures exposed to dust and moisture. Feature: Compatibility with multiple reference widths (400–1200 mm) and 600 mm reference depth → Business Impact: Flexible fit for varying cabinet footprints, minimizing custom fabrications → Application: Custom machine stands and modular control architectures. Feature: RoHS and REACH compliance along with CE conformity → Business Impact: Regulatory assurance reduces compliance risk and audit findings → Application: Global deployments across regulated markets. Feature: Weight and dimensions optimize shipping and installation logistics → Business Impact: Lower freight costs and easier crane handling in tight plants → Application: Large-scale panel installations and retrofits in manufacturing environments.
Get a Quick Quote for a ABB EC1861K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC1861K?
Enquire Now
FAQs
The EC1861K is supplied as a kit with an option for pre-assembled mounting, designed to minimize on-site labor. For best results, verify mounting compatibility with enclosure frames, confirm that reference dimensions (1800 mm height, 600 mm depth, 594 mm width net) align with your cabinet, and follow the IS2 CE conformity instructions (1STM604121R0006) to ensure regulatory compliance during retrofit projects.
The door is designed for modular widths of 400, 600, 800, 1000, and 1200 mm with a reference height of 1800 mm, ensuring broad compatibility with standard ABB IS2 enclosures. The single door configuration, plus an optional blind-side door, supports versatile access and service arrangements, reducing the need for custom fabrication and enabling faster cabinet integration.
Yes. The EC1861K carries a CE Declaration of Conformity IS2, plus RoHS information dated 20250108 and a REACH declaration confirming no substances above 0.1 mass percentage. It aligns with WEEE category guidance and is referenced in ETIM 8/9 as EC000747, supporting compliance across European and global facilities.
The enclosure door uses pickled steel sheet as the base material with an orange peel surface finishing in RAL 7035, and an opaque door surface finish. This combination delivers durable corrosion resistance, easy maintenance, and a consistent appearance even in harsh factory environments, reducing repainting costs and downtime.
Maintenance benefits come from the durable surface finish and robust pickled steel construction, which reduce repainting and corrosion-related downtime. The pre-assembled kit and modular width options minimize installation labor and field modifications, delivering faster commissioning and lower lifecycle costs, along with regulatory peace-of-mind from CE, RoHS, and REACH compliance throughout the asset’s life cycle.
