ABB EC1880FC5K Control and Automation Board - CE
Part Number: EC1880FC5K
Quick Summary
ABB EC1880FC5K is a control and automation board for compact industrial enclosures used in control panels and automation cabinets. Engineers often struggle with integrating double-door configurations while keeping mounting and service access straightforward. This model carries CE conformity with RoHS and REACH compliance, alongside ETIM and eClass classifications that support seamless procurement and cross-brand compatibility. Its kit-based blind-door design for a double-door setup simplifies installation, reduces field tailoring, and improves enclosure rigidity in dynamic environments. By combining modular mounting with a durable pickled steel shell finished in RAL 7035 orange peel, it delivers long-term reliability while supporting scalable automation architectures.
Product Information
Extended Description

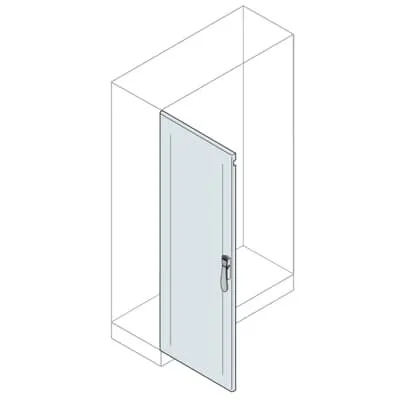

EC1880FC5K ABB: Blind door for double door version 1800x500mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with special profile for making double doors
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
494 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
15.690 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
16.010 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Blind door with special profile for making double doors. Business Impact: Simplifies assembly and ensures precise alignment, reducing commissioning time and field rework. Application: Ideal for high-volume double-door control cabinets in process and manufacturing environments. Feature: Kit mounting type. Business Impact: Enables rapid on-site installation with standardized components, cutting install labor and enabling field-configurability. Application: Suitable for modular enclosures in evolving automation lines. Feature: Surface finishing in orange peel, RAL 7035. Business Impact: Delivers durable corrosion resistance and consistent aesthetics, lowering maintenance costs and improving visibility in factory floors. Application: Enduring enclosure appearance for harsh environments. Feature: Material and build (pickled steel sheet). Business Impact: Provides mechanical strength and resilience against dents and rust, extending service life in harsh manufacturing settings. Application: Enclosures exposed to vibration, dust, and temperature variations. Feature: Dimensions and reference depths (1800 mm height, 1000 mm width, 494 mm net width, 46 mm net depth). Business Impact: Offers predictable footprint and compatibility with standard rack depths (400–1000 mm), simplifying layout planning. Application: Suitable for scalable control panels and space-constrained installations. Feature: Compliance and documentation (RoHS, REACH, ETIM/eClass, IS2 catalog). Business Impact: Supports regulatory compliance and easy integration with procurement systems, reducing risk and accelerating approvals. Application: Industry-grade enclosures requiring regulatory alignment and traceable documentation.
Get a Quick Quote for a ABB EC1880FC5K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC1880FC5K?
Enquire Now
FAQs
The EC1880FC5K uses a kit-based mounting approach designed for quick field assembly. Begin with preparing the enclosure frame, attach the blind double-door profile as per the IS2 enclosures guidelines, and secure the doors to align with the reference width and height. Use the included manuals (1STM604121R0006) for step-by-step guidance and verify RoHS/REACH compliance during final checks.
Key specs include a double-door configuration with a pickled steel shell, orange peel surface in RAL 7035, net dimensions of 494 mm width, 1796 mm height, and 46 mm depth, and reference dimensions of 1800 mm height and 1000 mm width. Weight is 15.690 kg, with a 400–1000 mm reference depth range and a 1-piece package at 16.010 kg.
Yes. The enclosure carries RoHS information with a RoHS date of 20250108 and a REACH declaration date of 20250108. It is designed to meet current regulatory requirements, and accompanying documentation confirms compliance for safe use in regulated manufacturing environments.
Absolutely. The enclosure supports reference depths of 400, 500, 600, 800, and 1000 mm, and a dual-door configuration with a kit-based mounting approach. This enables flexible fitting into existing rack layouts and supports future upgrades without rework, aligning with IS2 enclosure standards and project-specific depth requirements.
The durable orange-peel finish and pickled steel construction resist wear in demanding environments, reducing repainting and corrosion-related downtime. The modular door kit shortens installation time and simplifies future modifications, contributing to lower total cost of ownership and a faster return on investment through improved uptime and easier servicing.
