ABB EC1880FV6K Enclosure Door Kit - CE Compliant
Part Number: EC1880FV6K
Quick Summary
The ABB EC1880FV6K is an enclosure door kit designed for control panels and automation cabinets in harsh industrial settings. Fitting reliable, double-door access while maintaining enclosure integrity and regulatory compliance can slow projects, especially in space-constrained environments. This solution carries CE conformity, RoHS and REACH declarations to support regulatory requirements while aligning with ETIM EC000747 and IS2 enclosure standards. For manufacturers and integrators, the combination of robust orange-peel finish and ready-for-double-door mounting delivers predictable install times, reduced rework, and streamlined procurement processes. This supports value-driven decisions around safety, compliance, and total cost of ownership for industrial environments.
Product Information
Extended Description

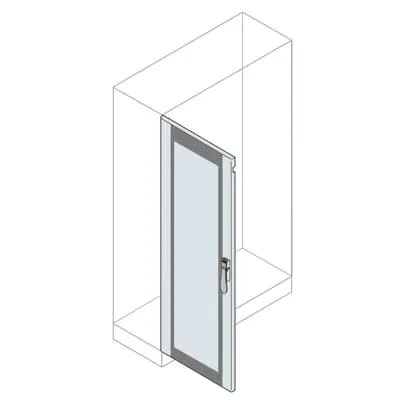

EC1880FV6K ABB: Glazed door for double door version 1800x600mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with special profile for making double doors
Mounting Type
Kit
Product Type
5B5B20B240
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
16.010 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
16.330 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Double-door configuration and glazing option with a dedicated kit. Business Impact: Provides easier routine maintenance, faster door access, and improved serviceability without disturbing internal components. Application: Ideal for control panels in manufacturing lines where quick access is required. Feature: Orange-peel surface finishing in RAL 7035. Business Impact: Delivers durable, visually consistent enclosure surfaces with corrosion resistance in demanding environments. Application: Factory floors, outdoor intake housings, and dusty production environments. Feature: Pickled steel sheet construction. Business Impact: High structural strength and long-term enclosure integrity, reducing replacement costs and downtime. Application: Heavy-use automation cabinets and electrical switchgear. Feature: Modular dimensions and mounting flexibility. Business Impact: Supports multiple depth options (400–1000 mm) and width variants, enabling faster integration with existing layouts. Application: Retrofit projects and multi-bay enclosures. Feature: Compliance and data richness. Business Impact: CE, RoHS, and REACH declarations minimize regulatory risk and simplify supplier audits. Application: Projects with strict compliance requirements in regulated sectors. Feature: ETIM and IS2 alignment. Business Impact: Streamlines procurement, improves part standardization, and speeds ordering. Application: System integrators and panel builders seeking consistent data across catalogues.
Get a Quick Quote for a ABB EC1880FV6K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC1880FV6K?
Enquire Now
FAQs
Yes. The EC1880FV6K is designed as a Kit with a double-door configuration and is listed for IS2 enclosures (ETIM EC000747). Its reference height is 1800 mm and reference width options include 800 mm, with a versatile mounting kit that supports 400–1000 mm depth variants, aiding seamless integration with ABB and IS2 systems.
The door kit uses pickled steel sheet with an orange-peel surface finishing in RAL 7035, delivering durable exterior protection. Materials comply with RoHS (RoHS date 20250108) and REACH declarations, and the surface treatment helps resist corrosion in demanding environments, reducing repainting costs and maintenance downtime.
This kit is ideal for control panels and automation cabinets requiring robust, double-door access. It supports glazed door options for visibility and is aligned with IS2 enclosure standards. Suitable for manufacturing lines, process automation, and electrical switchgear housings where quick access and regulatory compliance are critical.
The EC1880FV6K ships with a CE Declaration of Conformity (IS2), RoHS information (RoHS Date 20250108), and a REACH declaration (REACH Date 20250108). It’s also categorized under WEEE as Product Not in WEEE Scope and is referenced in IS2 Enclosures Technical Catalogue 2024 for regulatory alignment.
A ready-to-mount double-door kit with a 1800 mm height and 800 mm width reference simplifies installation, reduces field labor, and minimizes rework. The finish and material choices lower corrosion risk, while ETIM/IS2 alignment and accessible data sheets accelerate procurement and lifecycle planning, delivering faster ROI for panel builders and system integrators.
