ABB EC1880K Enclosure - Blind Door 1800x800 mm CE/ETIM EC000747
Part Number: EC1880K
Quick Summary
ABB EC1880K Enclosure is a rugged control and automation cabinet housing designed for industrial automation panels. Engineers often grapple with long panel build times, inconsistent finishes, and regulatory gaps that delay project timelines. This enclosure aligns with CE conformity, RoHS and REACH declarations, and ETIM EC000747 classification to streamline procurement and specification. By combining a durable pickled steel body with a precise 1800x800 mm footprint and a compliant IS2 enclosure catalogue, it delivers faster installation, consistent aesthetics, and reliable long-term performance for your manufacturing environment.
Product Information
Extended Description

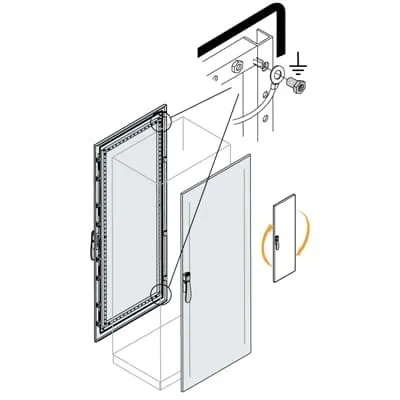

EC1880K ABB: Blind door 1800x800mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind front door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
24.990 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
25.510 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The single-door, blind-front kit enclosure reduces assembly complexity and speeds field deployment, enabling faster panel integration on new lines and upgrades for existing equipment. This translates to reduced commissioning time and lower labor costs on the shop floor, especially in high-mix, low-volume scenarios common in machine builders. Feature → Business Impact → Application: The orange peel finish in RAL 7035 on thick pickled steel provides durable corrosion resistance and a standardized color, improving maintainability and visual conformity across fleets of machines in harsh environments. This supports easier compliance checks and improved asset tracking in plant-wide audits. Feature → Business Impact → Application: Dimensions and reference depths (400–1000 mm) plus a 1800 mm height and 800 mm width ensure a predictable footprint compatible with standard mounting rails and control panels, simplifying cabinet design and reducing rework during installation. Feature → Business Impact → Application: RoHS, REACH and WEEE compliance reduce regulatory risk and procurement complexity, while ETIM EC000747 classification aligns with global sourcing workflows, lowering component mismatch and return rates. Feature → Business Impact → Application: The kit mounting type and clear installation manuals (IS2 IS enclosure catalogue reference) enable rapid on-site assembly and easier maintenance planning, supporting lifecycle cost reduction and long-term reliability for automated lines in process and discrete manufacturing.
Get a Quick Quote for a ABB EC1880K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC1880K?
Enquire Now
FAQs
The EC1880K uses a Kit mounting type and a single blind-front door, designed to integrate with standard control panels. Start by confirming reference depth options (400, 500, 600, 800, 1000 mm) to match your panel footprint, install mounting rails inside the enclosure, then mount the panel assembly and door. Use the IS2 catalogue and part 1STM604121R0006 manual for step-by-step guidance to minimize field adjustments and ensure proper grounding.
Key specs include Product Net Width 794 mm, Product Net Height 1796 mm, Product Net Depth 46 mm, and Product Net Weight 24.990 kg. The enclosure is made from pickled steel sheet with Orange Peel, RAL 7035 finish, and features a single door with a blind front. It is RoHS and REACH compliant, CE certified, and listed under ETIM EC000747.
Yes. The EC1880K is designed for industrial automation panels and control cabinets within machine-building projects. Its 1800x800 mm footprint fits common machine layouts, while the durable steel construction and compliant finishing handle demanding environments. The kit mounting and standardized dimensions support rapid deployment on new lines or upgrades, improving installation predictability and uptime in manufacturing settings.
The enclosure carries CE conformity, RoHS and REACH compliance, and ETIM 8/9 classification (EC000747). It does not see WEEE disposal as part of its scope for this model, per the provided data. These certifications help ensure regulatory alignment, safer material usage, and consistent procurement across global projects.
The EC1880K offers long-term value through durable pickled steel construction, standardized RAL 7035 finish for easy maintenance, and a predictable, modular footprint (1800x800 mm). Quick installation reduces labor costs, while regulatory compliance minimizes risk of non-conformity penalties. Over the lifecycle, these factors contribute to lower total cost of ownership in automation projects.
