ABB EC1882 Door - RAL 7035, 1800x800, CE Certified
Part Number: EC1882
Quick Summary
ABB EC1882 door is a rugged server enclosure door designed to secure 1800x800 racks in data centers and industrial facilities. For operators contending with heat buildup, dust intrusion, and unplanned downtime, a robust access point that seals effectively can dramatically reduce maintenance windows. CE conformity and ETIM 8/9 classification, along with eClass 27182204 and RoHS/REACH declarations, provide procurement confidence across global supply chains. This enclosure door also aligns with IS2 Enclosures Technical Catalogue guidance, and with standard ABB mounting kits, making installation straightforward and cost-efficient for installers and OEMs alike.
Product Information
Extended Description

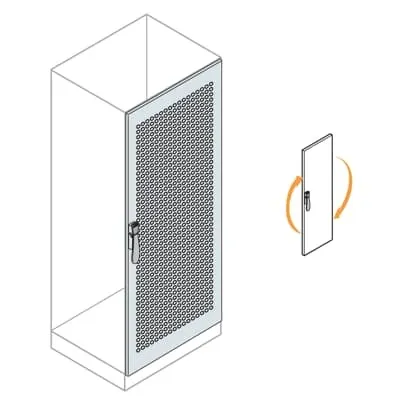

EC1882 ABB: Aerated door for server enclosure 1800x800
Accessory Type
3. Other doors
Configuration Type
3. Door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
4. Aerated door
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
18.370 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
19.370 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Aerated door option. Business Impact: Enhanced ventilation lowers operating temperatures and reduces cooling energy in dense server racks. Application: Ideal for 1800x800 ABB IS2 enclosures where airflow distribution is critical in data centers. Feature: Pickled steel sheet construction. Business Impact: Strong durability and resistance to daily wear on factory floors, increasing MTBF. Application: Suitable for industrial environments and service bays supporting telecom cabinets. Feature: Orange Peel surface finishing with RAL 7035. Business Impact: Long-lasting color stability and easier maintenance, reducing repaint cycles. Application: Consistent aesthetics across racks in data centers and controlled environments. Feature: Compact 46 mm depth with 794 mm width and 1796 mm height. Business Impact: Slim profile maximizes cabinet footprint while preserving full enclosure access. Application: Retrofit projects and new builds with constrained mounting depth. Feature: Kit mounting type and aerated door option. Business Impact: Quick, tool-light installation with reduced labor and downtime. Application: OEM assembly lines or system integrators deploying multiple enclosures. Feature: RoHS/REACH compliance with CE declaration. Business Impact: Regulatory risk mitigation and streamlined supplier qualification. Application: Global facilities requiring compliant, easily sourced enclosure components.
Get a Quick Quote for a ABB EC1882
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC1882?
Enquire Now
FAQs
Begin by confirming enclosure depth compatibility (400–1000 mm) and using the Kit mounting type. Follow the installation guide 1STM604121R0006 to align hinges, fit the aerated door, and secure all mounting points. The kit is designed for straightforward retrofits and minimizes field drilling or alterations.
Yes. The EC1882 door carries the CE Declaration of Conformity and RoHS information with a RoHS date of 20250108. It also references REACH declarations for compliance, ensuring regulatory alignment for international deployments in data centers and industrial facilities.
The door is designed for 1800 mm high, 800 mm wide enclosures, with a net width of 794 mm, net height of 1796 mm, and net depth of 46 mm. It supports enclosure depths from 400 to 1000 mm, enabling compatibility with a wide range of ABB IS2 cabinet configurations.
The door uses pickled steel sheet material with an orange peel surface finish in RAL 7035 light grey. The surface finish is opaque, delivering durable aesthetics and easier maintenance suitable for data centers and harsh industrial environments.
The EC1882 is classified as ETIM EC000747 for door/operating panels (enclosure/cabinet) in both ETIM 8 and ETIM 9, and is listed under eClass V11.1 27182204. This alignment simplifies supplier qualification, cataloging, and cross-system procurement for global projects.
