ABB EC2031K Other/Miscellaneous - CE Declaration of Conformity
Part Number: EC2031K
Quick Summary
ABB EC2031K enclosure is a control and automation board housing for compact electrical cabinets in industrial automation. Engineers face space constraints, mounting compatibility, and lengthy lead times when upgrading panels, and this enclosure addresses those pains with a modular, kit-based approach. This unit carries CE conformity, RoHS compliance, and REACH declarations, providing regulatory assurance for EU deployments and supply-chain transparency. In addition to strong compliance, the orange-peel finish in RAL 7035 ensures a durable, uniform appearance, while the blind-front door kit supports clean cable routing. The combination of a robust chassis and modular mounting options delivers faster installation, simplified serviceability, and predictable lifecycle costs for industrial environments.
Product Information
Extended Description

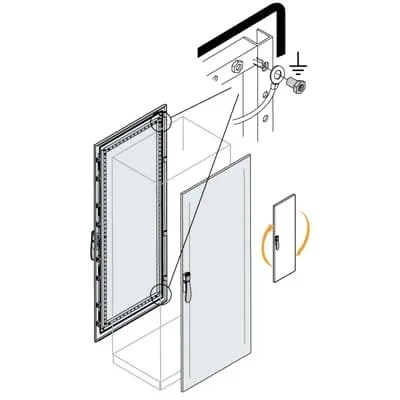

EC2031K ABB: Blind front/rear door exterbal cable container 2000x300mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind front door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
294 mm
Product Net Height
1996 mm
Product Net Depth / Length
46 mm
Product Net Weight
10.560 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm
Reference Height
2000 mm
Reference Width
300 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
10.770 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Enclosure configured as a kit with a blind-front door and a single door option. Business Impact: Simplifies on-site installation and future modifications by allowing modular assembly and straightforward cable routing. Application: Ideal for machine builders and panel shops that need fast deployment and clean access to internal components. Feature: Pickled steel sheet construction with orange-peel finish in RAL 7035. Business Impact: Delivers robust durability and consistent visibility while resisting industrial wear, reducing maintenance cycles. Application: Suitable for factory floors and harsh environments where long-term reliability matters. Feature: Dimensions and modular depth options (width 294 mm, height 1996 mm, depth 46 mm; reference depths 400/500/600/800; reference height 2000 mm; reference width 300 mm). Business Impact: Enables fit-for-purpose equipment layouts and minimizes custom fabrication. Application: Applicates to compact control panels in space-constrained installations. Feature: Regulatory and standards compliance (CE, RoHS, REACH, WEEE). Business Impact: Lowers procurement risk and speeds project approvals. Application: Essential for regulated industries and multinational deployments. Feature: Weight and packaging details (net 10.56 kg; gross 10.77 kg). Business Impact: Facilitates safe handling, reduces installation time, and lowers on-site labor costs. Application: Useful for field teams handling bulk enclosures during installation. Feature: Documentation and catalogue alignment (IS2 Enclosures Technical Catalogue 2024; Data Sheet; Instructions). Business Impact: Improves traceability and procurement efficiency. Application: Streamlines engineering workflows and maintenance planning.
Get a Quick Quote for a ABB EC2031K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2031K?
Enquire Now
FAQs
ABB EC2031K is designed as a kit-based enclosure with a blind-front door, intended for modular installation alongside IS2 enclosure families. Its mounting kit and standard dimensions, including a 294 mm width and 1996 mm height, support straightforward integration with compatible frames and cable management strategies. Users should verify depth options (400/500/600/800 mm) to ensure full compatibility with existing panel depths and internal hardware.
Key performance specs include a net width of 294 mm, net height of 1996 mm, and net depth of 46 mm with a 10.56 kg net weight. The enclosure uses pickled steel sheet with an orange-peel finish in RAL 7035, a single door, and a blind-front door configuration. Depths are modular with reference depths of 400, 500, 600, and 800 mm, and the reference height/width are 2000 mm and 300 mm respectively.
Yes. The EC2031K carries a CE Declaration of Conformity, RoHS compliance, and a REACH declaration, with a WEEE classification indicating alignment with European environmental and safety requirements. Documentation also references ETIM codes for standardization. This makes it suitable for regulated industries and multinational projects where regulatory compliance and supply-chain transparency are critical.
The kit-based, modular design reduces installation time and simplifies future modifications, contributing to lower labor costs. Durable pickled steel with a long-lasting RAL 7035 finish minimizes corrosion-related maintenance. Regulatory compliance reduces the risk of non-compliance penalties, while standardized dimensions and documentation streamline procurement and lifecycle planning, delivering predictable total cost of ownership over the cabinet’s service life.
Official documentation includes the IS2 Enclosures Technical Catalogue 2024, the data sheet, and installation instructions 1STM604121R0006. Additionally, a CE Declaration of Conformity and REACH/RoHS declarations are available to confirm regulatory compliance. This makes it easier to validate specifications during design reviews and procurement processes.
