ABB EC2040K Enclosure Door - CE IS2 Certification
Part Number: EC2040K
Quick Summary
ABB EC2040K enclosure door provides a rugged front-entry solution for control cabinets in demanding industrial environments. Engineers often struggle with difficult accessibility, mounting constraints, and non-compliant surface finishes that slow upgrades. This enclosure meets CE conformity, RoHS and REACH declarations, underscoring regulatory compliance and safe material usage. As an enclosure kit with a blind-front door and a RAL 7035 light-grey finish, it accelerates installation, standardizes panels, and reduces change orders across factory automation projects. Its robust pickled steel construction and durable orange-peel surface provide long service life in harsh environments. Designed for panel installers and maintenance teams, the module ships as a complete kit with mounting options and ready-to-use drawings.
Product Information
Extended Description

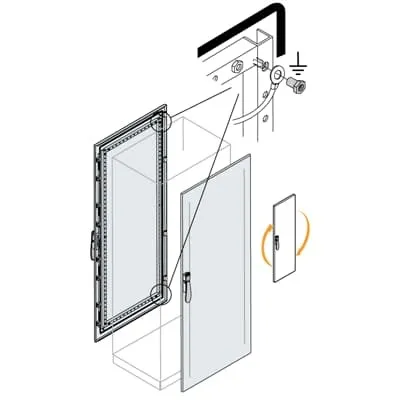

EC2040K ABB: Blind door 2000x400mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind front door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
394 mm
Product Net Height
1996 mm
Product Net Depth / Length
46 mm
Product Net Weight
14.060 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
14.340 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Door configuration, enclosure type, and mounting type are designed as a unified kit for blind-front doors. Business Impact: This configuration shortens the design cycle, reduces the need for field drilling, and minimizes misalignment during assembly, lowering labor costs. Application: Ideal for new control cabinet builds and retrofits in industrial automation lines where rapid deployment is critical. Notable benefit: pre-configured components help installers hit project milestones faster. Feature: Material is pickled steel sheet with an orange-peel surface finished in RAL 7035, with an opaque door surface. Business Impact: Delivers robust durability, corrosion resistance, and a professional, uniform appearance across all enclosures in a plant. Application: Suitable for factory floors, packaging lines, and process automation environments that demand long service life and minimal maintenance. Feature: Key dimensions include Product Net Width 394 mm, Product Net Height 1996 mm, Product Net Depth 46 mm, and Reference Depths 400–1000 mm; Weight 14.060 kg. Business Impact: Ensures compatibility with standard 400x2000 mm frame footprints and predictable space planning, reducing the need for custom fabrication. Application: Used by machine builders to standardize enclosure footprints across fleets; compatible with 1 piece packaging. Feature: Compliance and standards include CE Declaration of Conformity IS2, RoHS and REACH declarations; ETIM 8/9 codes EC000747, eClass V11.1 27182204, and WEEE category designation 'Product Not in WEEE Scope'. Business Impact: Regulatory alignment simplifies sourcing, auditing, and lifecycle management; Application: procurement, compliance, and quality teams rely on these marks for supplier selections. Feature: Documentation and installation support include IS2 Enclosures Technical Catalogue 2024, data sheet references and installation manual 1STM604121R0006. Business Impact: Improves commissioning speed, reduces risk of misinterpretation, and provides a single source of truth for technicians. Application: Field service, maintenance teams, and panel integrators benefit from consistent, up-to-date manuals and digital references.
Get a Quick Quote for a ABB EC2040K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2040K?
Enquire Now
FAQs
EC2040K fits standard enclosure footprints: net width 394 mm, net height 1996 mm, net depth 46 mm, with reference depths from 400 to 1000 mm. It ships as a mounting kit for blind-front doors, simplifying alignment and reducing the need for on-site modifications during panel installations.
The product carries a CE Declaration of Conformity (IS2) and RoHS/REACH declarations dated 20250108, with additional REACH information. It also notes WEEE considerations, ETIM/ eClass classifications, and transparent material composition, easing regulatory documentation and supplier audits.
Yes. With a blind-front door kit and mounting kit design, EC2040K is compatible with standard 400x2000 mm frame footprints, enabling straightforward retrofits. The finish and material choices (RAL 7035, pickled steel) help match existing panels while delivering improved accessibility and protection.
Blind-front doors maximize front-face accessibility while preserving enclosure integrity, reducing glare and debris ingress. The EC2040K kit provides a complete mounting solution, consistent surface finishing, and standardized dimensions to streamline installation, maintenance, and future upgrades.
Procurement can rely on CE/ RoHS/ REACH declarations, ETIM 8/9, and eClass codes. Documentation includes IS2 Enclosures Catalogue 2024, installation manual 1STM604121R0006, and a precise dimension/weight spec set for BOMs and service planning.
