ABB EC2041K Door – ETIM EC000747 Certification
Part Number: EC2041K
Quick Summary
ABB EC2041K is a rugged door assembly for control enclosures used in industrial cabinets. It addresses retrofit challenges and long installation timelines by delivering a pre-assembled mounting kit and versatile width options for 400 to 1200 mm enclosures. The product is CE-certified and RoHS/REACH compliant, with ETIM data support for seamless procurement and asset data management. This combination reduces commissioning downtime, improves field service efficiency, and lowers total cost of ownership. Finished in orange peel finish with RAL 7035 light grey, the EC2041K ensures durable aesthetics while meeting regulatory and safety expectations for electrical hardware in plant environments.
Product Information
Extended Description

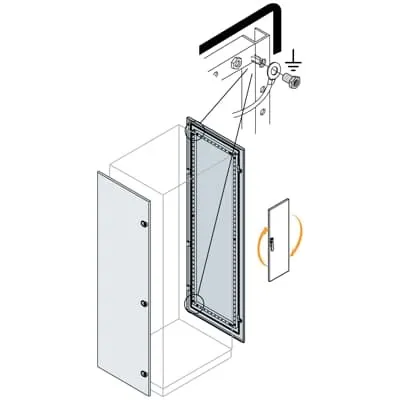

EC2041K ABB: Blind side door 2000x400mm (HxD)
Accessory Type
3. Other doors
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
1. Blind side door
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
394 mm
Product Net Height
1996 mm
Product Net Depth / Length
46 mm
Product Net Weight
10.010 kg
Reference Depth/Length
400 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
10.220 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit enables faster, error-free installation. Business Impact: Reduces on-site labor and commissioning time, lowering project costs and minimizing downtime. Application: Ideal for new builds and retrofit projects where speed and accuracy are critical. Feature: Single blind-side door with opaque surface finish. Business Impact: Enhances security and tamper resistance while delivering a clean, consistent enclosure appearance. Application: Suitable for control cabinets and automation panels in manufacturing lines. Feature: Surface finishing in Orange Peel, RAL 7035. Business Impact: Durable, corrosion-resistant exterior that maintains appearance under industrial lighting and cleaning cycles. Application: Visible enclosures in production areas with stringent visual standards. Feature: Material is pickled steel sheet. Business Impact: Strong structural integrity and long-term durability in factory floors. Application: Heavy-use cabinets subject to routine maintenance. Feature: Dimensional versatility with 394 mm net width, 1996 mm net height, 46 mm net depth, and reference width 400 mm. Business Impact: Wide compatibility with enclosure footprints from 400 to 1200 mm, enabling scalable asset deployment. Application: Retrofit and modular installations across multiple line roles. Feature: Compliance and data-ready attributes including CE Declaration, RoHS, REACH, and ETIM EC000747. Business Impact: Streamlines procurement, compliance reporting, and data management for asset registers. Application: Regulatory-ready installations with accurate data for ERP and CMMS systems.
Get a Quick Quote for a ABB EC2041K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2041K?
Enquire Now
FAQs
Start by confirming the enclosure width option and select the pre-assembled mounting kit when speed is essential. The EC2041K supports reference width of 400 mm and heights up to 2000 mm, with a net width of 394 mm and net depth of 46 mm. Use the included mounting hardware, align with the enclosure frame, and secure the door to the hinges. The kit option simplifies field assembly for retrofit projects while preserving ETIM data and CE compliance during installation.
Key dimensions include a net width of 394 mm, net height of 1996 mm, and net depth of 46 mm, with a reference width of 400 mm and reference height of 2000 mm. The door is made from pickled steel sheet with an orange peel surface finish in RAL 7035 (Light Grey) and a single opaque door surface. Weight is approximately 10.010 kg (net), with a gross package weight around 10.220 kg.
Yes. The EC2041K is designed for industrial control enclosures, offering a robust single door solution with a durable throw-over finish, and compatibility with a range of enclosure widths (from 400 to 1200 mm). The pre-assembled mounting option accelerates deployments on factory floors, while the ETIM EC000747 classification ensures consistent data across procurement and maintenance systems.
The door carries CE conformity with Declaration of Conformity IS2, RoHS information and REACH declarations, and ETIM classification EC000747. This combination supports regulatory compliance for electrical enclosures, data accuracy for asset management, and environmentally responsible material use in line with RoHS and REACH requirements.
The pre-assembled mounting kit reduces on-site assembly time and potential misalignment, leading to faster commissioning and lower labor costs. The durable pickled steel with RAL 7035 finish minimizes cosmetic maintenance, and CE/RoHS/REACH compliance reduces risk in audits. Overall, the solution improves uptime, simplifies procurement, and lowers total cost of ownership in automation projects.
