ABB EC2060K Other/Miscellaneous - CE IS2 Enclosure
Part Number: EC2060K
Quick Summary
ABB EC2060K is a control and automation enclosure for industrial control panels. Engineers face challenges with door reliability, mounting flexibility, and space constraints during retrofits, and this enclosure directly addresses those issues. It carries CE conformity (IS2), RoHS compliance dated 2025-01-08, and REACH information that confirms regulatory alignment for sensitive environments. The kit mounting approach and standardized dimensions deliver faster installation and safer maintenance, while the durable finish supports long service life. For system integrators and OEMs, this enclosure offers predictable procurement, easier stocking, and reduced compliance risk through clear ETIM/eClass alignment.
Product Information
Extended Description

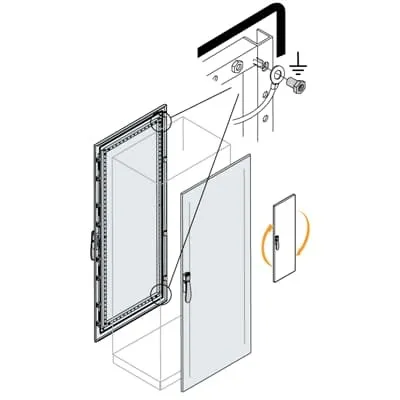

EC2060K ABB: Blind door 2000x600mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind front door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
1996 mm
Product Net Depth / Length
46 mm
Product Net Weight
23.940 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
26.600 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Blind front door with single-door configuration and kit mounting. Business impact: Simplifies access control, serviceability, and modular upgrades, reducing downtime during maintenance. Application: Ideal for control cabinets in manufacturing lines where quick door access is required. Feature: Pickled steel sheet with orange peel surface in RAL 7035. Business impact: Improves corrosion resistance and exterior durability, lowering repainting costs over the lifecycle. Application: Harsh factory environments and outdoor-rated control panels. Feature: Dimensions and reference depth options (600 mm width, 2000 mm height; 400–1000 mm reference depths). Business impact: Eases space planning and retrofit compatibility with existing frames, saving enclosure reworks. Application: System integration in existing plant footprints. Feature: Kit-based mounting and door type (blind front door, single). Business impact: Reduces installation time and enables flexible component mounting. Application: Panel builders needing rapid assembly. Feature: Regulatory and classification support (CE, RoHS, REACH, ETIM EC000747, eClass 27182204). Business impact: Ensures compliance, procurement traceability, and supplier harmonization. Application: OEMs aligning with global sourcing and catalog classifications.
Get a Quick Quote for a ABB EC2060K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2060K?
Enquire Now
FAQs
ABB EC2060K uses a kit mounting approach with a blind front door, designed for straightforward installation into existing frames. It supports reference depths from 400 to 1000 mm and a net width of 594 mm, helping integration with current cabinets. The included manuals (1STM604121R0006) and documented ETIM/eClass codes simplify procurement and commissioning.
Yes. The enclosure offers a 600 mm reference width and 2000 mm height with flexible reference depths (400, 500, 600, 800, 1000 mm) and a kit mounting setup. Its single blind-front door design preserves accessibility, while the pickled steel body and RAL 7035 finish support retrofit reliability and long-term protection.
EC2060K carries CE Declaration of Conformity (IS2), RoHS compliance with a 20250108 RoHS date, and REACH information stating no substances above threshold. It is also categorized under WEEE as not in scope, with ETIM 8/9 and eClass coding for seamless procurement integration.
Ideal for machine control panels, process automation cabinets, and OEM equipment housings. Its durable orange-peel finish and pickled steel construction suit factory environments, while kit mounting enables modular upgrades and rapid field service. The enclosure’s standardized dimensions support predictable layout in new builds and retrofits alike.
Durable pickled steel with an orange-peel RAL 7035 finish minimizes repainting and corrosion-related maintenance. The kit mounting and standardized dimensions reduce installation time and spare-part diversity, lowering downtime and inventory costs. Regulatory compliance (CE, RoHS, REACH) further mitigates risk and accelerates procurement cycles.
