ABB EC2080FV6K Control and Automation Board - CE
Part Number: EC2080FV6K
Quick Summary
The ABB EC2080FV6K is a control and automation board for demanding industrial cabinets. Users often encounter limited space, constrained access with double doors, and ongoing regulatory requirements when deploying control panels on the factory floor. This enclosure family carries CE conformity, RoHS compliance, and REACH declarations, with IS2 catalog alignment and ETIM/eClass classifications that streamline procurement and engineering workflows. With its double-door kit configuration and selectable reference depths, it delivers installation flexibility and reduced lifecycle costs, supporting scalable automation projects across manufacturing lines.
Product Information
Extended Description

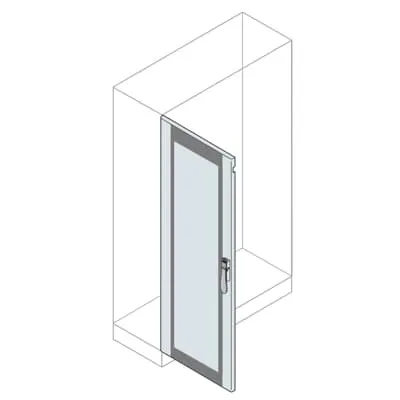

EC2080FV6K ABB: Glazed door for double door version 2000x600mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with special profile for making double doors
Mounting Type
Kit
Product Type
5B5B20B240
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
1996 mm
Product Net Depth / Length
46 mm
Product Net Weight
17.760 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
18.130 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Double-door kit with a glazed door option supports easier operator access and faster maintenance, delivering measurable reductions in downtime while improving visibility of mounted control components in live lines. The durable pickled steel sheet with Orange Peel, RAL 7035 finish provides corrosion resistance and a professional, uniform appearance across plant environments, reducing refurbishment costs and maintenance cycles. Modular reference depths and widths—2000 mm height with 800 mm or wider entries and 46 mm depth—enable adaptable installations in constrained spaces and simplify cabinet planning for evolving automation layouts. Regulatory compliance is embedded through RoHS and REACH declarations and CE conformity, minimizing compliance risk and enabling global deployments for multi-site projects. ETIM 8/9 and eClass classifications streamline procurement and integration within IS2 Enclosures Technical Catalogue 2024. The enclosure weighs 17.760 kg (net) and ships as a single piece, supporting straightforward on-site handling and installation in new builds or retrofits.
Get a Quick Quote for a ABB EC2080FV6K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2080FV6K?
Enquire Now
FAQs
Plan for the kit mounting system and the double-door profile to ensure proper clearance and hinge operation in your cabinet footprint. Use the reference height of 2000 mm and width options of 800 mm, with depth options from 400 to 1000 mm to match internal layouts. Consider the glazed door variant for visibility and ergonomic access during routine maintenance.
Key specs include a 2000 mm reference height, 800 mm reference width (with 800/1000/1200 options), and a net width of 594 mm, plus a 46 mm depth and a net weight of 17.760 kg. The orange-peel surface in RAL 7035 and a transparent door finish support industrial aesthetics and readability of internal components during audits and maintenance.
Yes. The double-door, kit-based enclosure is designed for machine control panels in automated lines, offering robust protection, modular depth options, and easy integration with existing control architectures. Its IS2 Enclosures alignment, RoHS/REACH compliance, and CE conformity make it a dependable choice for high-volume production environments.
The enclosure adheres to CE conformity and RoHS/REACH declarations, with WEEE classification indicating proper end-of-life handling. These certifications mean your automation projects meet essential regulatory requirements in multiple regions, reducing risk during audits and simplifying supplier qualification for global manufacturing sites.
The pickled steel construction with Orange Peel–RAL 7035 finish offers durable corrosion resistance and a clean appearance, extending service life in harsh environments. The modular depth and door-kit approach reduce refurbishment needs, while standardizing on IS2 catalogue components lowers maintenance costs and accelerates future upgrades or expansions.
