ABB EC2080VC2K Control and Automation Board - CE
Part Number: EC2080VC2K
Quick Summary
ABB EC2080VC2K is a control and automation enclosure designed for high-density machine cabinets. Engineers often struggle with integrating double-door access while maintaining compact footprints and serviceability. This solution offers CE conformity, RoHS and REACH declarations to simplify regulatory compliance across European plants. Its modular kit approach and standard dimensions enable faster installation and scalable panel layouts, reducing downtime and lifecycle costs while supporting reliable control panels and cabinet systems.
Product Information
Extended Description

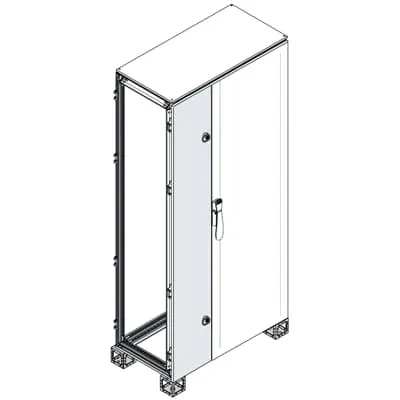

EC2080VC2K ABB: Blind door cable container 2000x200mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with special profile for making double doors
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
194 mm
Product Net Height
1996 mm
Product Net Depth / Length
46 mm
Product Net Weight
7.880 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
600 mm | 800 mm | 1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
8.040 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Double-door kit with blind door and special profile for making double doors → Business Impact: Improves front access and serviceability, enabling rapid panel inspection and maintenance without compromising enclosure integrity → Application: Control panels in automated lines where frequent access to wiring and components is required. Feature: Kit mounting type → Business Impact: Reduces on-site assembly time and allows flexible retrofits or reconfigurations as line layouts change → Application: Retrofit projects or modular line expansions in manufacturing plants. Feature: Orange Peel, RAL 7035 surface finish on pickled steel sheet → Business Impact: Delivers durable corrosion resistance and easy cleaning in harsh environments, extending cabinet life and reducing repaint cycles → Application: Enclosures in paint shops, metal fabrication or outdoor installations. Feature: Dimensions and reference options (2000 mm height; widths 600/800/1000 mm; depth 46/400–1000 mm) → Business Impact: Fits standard industrial layouts with scalable access and internal spacing for wiring harnesses, improving layout planning and HVAC compatibility → Application: Large control cabinets for process automation and machine centers. Feature: Environmental and regulatory compliance (RoHS, REACH, WEEE) → Business Impact: Minimizes risk during audits and reduces hazardous material handling costs, supporting global deployments → Application: Regulated markets and multinational facilities. Feature: Documentation and standards support (IS2 Enclosures Catalogue 2024, ETIM EC000747) → Business Impact: Streamlines procurement and specification workflows with clear, industry-aligned references → Application: Specification writing and standards-compliant cabinet design.
Get a Quick Quote for a ABB EC2080VC2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2080VC2K?
Enquire Now
FAQs
This kit uses a mounting kit design, simplifying on-site assembly. Start with aligning Frame and Doors, attach the blind door profiles for a double-door configuration, then install wiring channels and internal panels. Follow the IS2 Enclosures Catalogue 2024 guidelines and the 1STM604121R0006 manual for step-by-step instructions and torque specs.
Yes. The enclosure aligns with IS2 Enclosures standards and uses a kit mounting approach. Reference heights are 2000 mm with selectable widths of 600, 800, or 1000 mm, and depths ranging from 400 to 1000 mm, enabling seamless integration into common industrial cabinet configurations.
The EC2080VC2K carries CE conformity with Declaration of Conformity IS2, RoHS information dated 20250108, and REACH information dated 20250108, plus REACH declarations. WEEE classification places it outside certain scopes, while ETIM EC000747 aligns it within standard industry classifications.
The orange peel texture in RAL 7035 offers durable corrosion resistance, easier cleaning, and a high-quality, low-gloss appearance that hides minor scratches. This finish helps maintain visual integrity and enclosure longevity in factory floors, wash-down areas, and outdoor installations.
Benefits include faster installation via a kit approach, modularity for future reconfiguration, and regulatory compliance that reduces audit risk. The double-door access improves maintenance efficiency, while robust materials and standard dimensions lower total cost of ownership over the equipment lifecycle.
