ABB EC2211K Control Board - Door Panel, ETIM EC000747
Part Number: EC2211K
Quick Summary
ABB EC2211K is a pre-assembled control board designed for rugged industrial automation cabinets and panel builds. This solution streamlines panel assembly by delivering a ready-to-install door panel kit for machine rooms and process lines. Engineers often battle with onsite wiring complexity, inconsistent finishes, and lengthy commissioning; EC2211K reduces those pain points through a kit-based approach, a robust pickled steel enclosure, and a professional RAL 7035 orange peel finish. The product carries CE conformity with a declared IS2 enclosure reference, RoHS and REACH declarations, ensuring regulatory compliance across manufacturing markets. By combining documented installation instructions with ETIM classification and standardized components, this enclosure enables faster commissioning, consistent quality, and lower total cost of ownership for scalable cabinet configurations.
Product Information
Extended Description

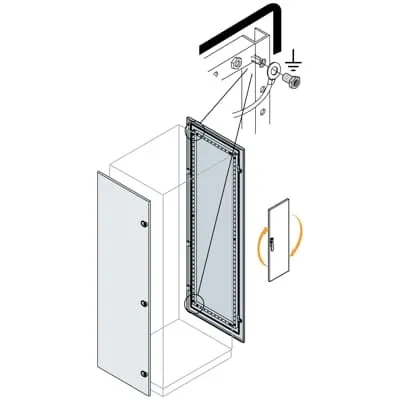

EC2211K ABB: Blind side door 2200x1000mm (HxD)
Accessory Type
3. Other doors
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
1. Blind side door
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
994 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
27.530 kg
Reference Depth/Length
1000 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
28.090 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit and kit | Pre assembled mounting simplifies installation and reduces on-site wiring time. Business Impact: Faster commissioning and lower labor costs. Application: Automation panels in manufacturing lines. Feature: Durable pickled steel sheet with Orange Peel RAL 7035 finish enhances corrosion resistance and aesthetics. Business Impact: Longer service life and reduced maintenance costs. Application: Harsh industrial environments. Feature: Single door with blind side option provides flexible access and compact footprint. Business Impact: Improved workflow and space utilization in control rooms. Application: Machine cabinets with limited clearances. Feature: Dimensions with reference depth 1000 mm and multiple width options from 400 to 1200 mm enable modular cabinet design. Business Impact: Scalable configurations without redesign. Application: Custom control enclosures for PLCs and drives. Feature: RoHS and REACH compliance with documented declarations and a CE Declaration of Conformity IS2 catalogue alignment. Business Impact: Regulatory assurance across global supply chains. Application: Compliance-heavy industries such as automotive and packaging. This combination of materials, finish, and standardization supports compatibility with IS2 Enclosures Technical Catalogue 2024 and ETIM EC000747 class, improving procurement predictability and interoperability with other ABB enclosure components.
Get a Quick Quote for a ABB EC2211K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2211K?
Enquire Now
FAQs
The EC2211K ships as a pre-assembled mounting kit (Kit | Pre assembled), designed for rapid panel integration. Plan for a 994 mm wide net enclosure with a 2196 mm height and a 46 mm depth, plus compatibility with widths from 400 to 1200 mm. Ensure CE conformity, RoHS/REACH documentation, and IS2 catalogue alignment. Include the listed installation manual 1STM604121R0006 during commissioning and verify ETIM EC000747 classification for correct enclosure-type matching in your BOM.
The EC2211K provides explicit RoHS information with a RoHS date of 20250108 and a REACH declaration, including a statement that it False - does not contain substances > 0.1 mass percentage. This ensures compliant materials in the pickled steel sheet construction and the orange peel RAL 7035 finish. For procurement, reference the CE declaration and the IS2 catalogue alignment to confirm ongoing regulatory compliance in cross-border manufacturing environments.
Yes. The enclosure is specified with IS2 Enclosures Technical Catalogue 2024 references and ETIM 8/9 classifications, notably EC000747 for Door/operating panel (enclosure/cabinet). This compatibility supports standardized parts integration, consistent data like dimensions and materials, and easier supplier qualification. Use the ETIM code in your product data management to ensure accurate cross-referencing across procurement systems.
Product net width is 994 mm, net height 2196 mm, and net depth 46 mm, with a reference depth/length of 1000 mm. Reference width options span 400, 600, 800, 1000, and 1200 mm. Net weight is 27.530 kg, with a package gross weight of 28.090 kg. When planning, allocate space for the door operation and clearance for the blind side door, and factor in the modular width options to fit your specific control cabinet layout.
The EC2211K carries CE conformity with the IS2 declaration, RoHS and REACH compliance, and a dedicated REACH information and date. It also references WEEE categorization and the ETIM EC000747 classification. For installed panels, rely on the CE Declaration of Conformity, RoHS/REACH documentation, and the ETIM classification to satisfy regulatory requirements and ensure safe, interoperable performance in industrial environments.
