ABB EC2232K Enclosure - CE Declaration IS2, RAL 7035
Part Number: EC2232K
Quick Summary
ABB EC2232K enclosure is a rugged control and automation cabinet designed for durable electrical installations in industrial environments. End users often struggle with cramped wiring space, limited front or rear access, and mounting or regulatory compliance challenges. This enclosure ships as a kit with a blind-front door, simplifying on-site assembly and future serviceability while matching standard panel dimensions. It carries CE conformity via the IS2 Declaration of Conformity and adheres to RoHS and REACH requirements, with clear documentation to support audits. The orange-peel finish in RAL 7035 and steel construction deliver long-term durability and a predictable maintenance plan, while ETIM/eClass alignment streamlines sourcing and procurement for automation projects.
Product Information
Extended Description

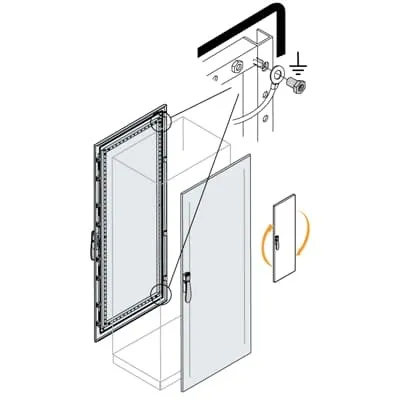

EC2232K ABB: Blind front/rear door exterbal cable container 2200x300mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind front door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
294 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
11.610 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm
Reference Height
2200 mm
Reference Width
300 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
11.850 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Kit design with blind-front door → reduces on-site assembly time and field fabrication, delivering faster commissioning of control cabinets. This enables more predictable project schedules and lowers labor costs in automation installations. The durable orange-peel finish in RAL 7035 → protects against wear and corrosion, reducing repaint and maintenance needs over the cabinet’s life. Application: suitable for factory floors and harsh environments where long-term surface protection is critical. Dimensions and modular depth → 294 mm W x 2196 mm H x 46 mm D with reference depths of 400/500/600/800 mm, enabling flexible integration into existing layouts and easy retrofits. The kit approach and single-door operation → simplifies installation and service access, improving uptime in production lines. Material and compliance → pickled steel sheet with RoHS and REACH declarations plus CE IS2 conformity support safer procurement and regulatory audits. Documentation and sourcing support → IS2 data sheets, manuals, and ETIM/eClass alignments streamline part selection and replacement planning for engineers and buyers. Packaging and weight → 11.610 kg net, 11.850 kg gross per piece, enabling predictable logistics and BOM planning for large projects.
Get a Quick Quote for a ABB EC2232K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2232K?
Enquire Now
FAQs
The EC2232K is a kit-based enclosure with a blind-front door, designed for flexible installation. It supports mounting in standard control-panel footprints and offers reference depths of 400, 500, 600 and 800 mm, enabling straightforward retrofits and scalable configurations for evolving automation projects.
The enclosure features CE conformity with the IS2 Declaration of Conformity, along with RoHS and REACH declarations. Documentation such as the IS2 catalogue and installation manuals supports audits and regulatory reviews, while the WEEE classification confirms appropriate end-of-life handling.
Yes. The enclosure is designed as a kit with a single door and standard dimensions (294 mm width, 2196 mm height, 46 mm depth) and mounting options that align with typical automation hardware. ETIM 8/9 and eClass classifications further simplify part compatibility and procurement.
The kit-based design reduces on-site fabrication time and test wiring effort, lowering commissioning costs. Durable orange-peel finish and steel construction extend service intervals, while clear CE/RoHS/REACH documentation reduces audit overhead and risk, contributing to lower total cost of ownership over the cabinet’s life.
Key documents include the IS2 Enclosures Technical Catalogue 2024, Data Sheet/Technical Information, and installation manual 1STM604121R0006. ETIM 8/9 and eClass classifications (EC000747; V11.1 27182204) support accurate part identification, sourcing, and compliance verification.
