ABB EC2260K Enclosure - CE Declaration of Conformity
Part Number: EC2260K
Quick Summary
ABB EC2260K Enclosure provides robust control cabinet housing for industrial automation panels used on manufacturing lines. Engineers often grapple with mismatched sizes and lengthy compliance checks that slow deployment and force costly field modifications. The CE Declaration of Conformity, RoHS compliance, and REACH information help ensure regulatory alignment across Europe and global supply chains. Built as a kit with a blind front door, this enclosure design reduces installation time and simplifies on-site modifications while delivering durable protection for critical electrical systems. With ETIM and eClass classifications, it integrates smoothly into modern procurement workflows and BIM/ERP BOM planning, supporting faster project approvals and lower total cost of ownership.
Product Information
Extended Description

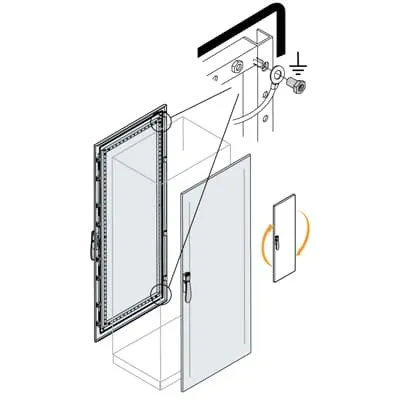

EC2260K ABB: Blind door 2200x600mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind front door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
22.970 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
23.430 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Configuration Type: 3. Door; Enclosure Type: Kit - blind front door; Mounting Type: Kit. This standardized configuration shortens engineering cycles and minimizes custom fabrication, accelerating panel assembly and field commissioning for machine builders. Application: ideal for OEM automation lines and modular control systems where quick door access is needed. Feature: Material and surface finish: Pickled steel sheet; Orange Peel, RAL 7035; Door Surface: Opaque. Business impact: durable protection with easy-to-identify integration into plant color schemes, improving maintenance efficiency. Application: harsh factory environments and panels requiring consistent aesthetics. Feature: Dimensions and weight: Product Net Width 594 mm; Height 2196 mm; Depth 46 mm; Net Weight 22.970 kg; Reference Depths 400/500/600/800/1000 mm; Reference Height 2200 mm; Reference Width 600 mm. Business impact: precise space planning and compatibility with standard mounting rails and adaptors, reducing misfits and rework. Application: new builds and retrofit projects across conveyors, packaging, and process lines. Feature: Compliance and documentation: RoHS Date 20250108; REACH Date 20250108; WEEE Category: Product Not in WEEE Scope; CE Declaration; Data Sheet IS2 Enclosures Technical Catalogue 2024; Installation: 1STM604121R0006. Business impact: regulatory readiness and streamlined sourcing with accessible manuals. Application: EU and global supply chains, maintenance planning, and audits. Feature: Standards and classifications: ETIM EC000747; ETIM 9; eClass V11.1 27182204; Object Classification Code U. Business impact: improved procurement tagging, ERP integration, and cross-system compatibility. Application: cataloging, BOM management, and supplier qualification.
Get a Quick Quote for a ABB EC2260K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2260K?
Enquire Now
FAQs
When integrating the EC2260K, consider the kit-based mounting and blind front door design which supports customizable depths from 400 to 1000 mm. Use the installation manual 1STM604121R0006 and IS2 Enclosures Technical Catalogue 2024 for step-by-step guidance. Ensure compatibility with existing mounting rails and take precise measurements to minimize field changes and downtime.
Important specs include a net width of 594 mm, net height of 2196 mm, and net depth of 46 mm, with a weight of 22.970 kg. The material is pickled steel with an orange peel finish in RAL 7035, featuring a single blind door. Depth options and weight stability support reliable installation and long-term durability in demanding environments.
Yes. The EC2260K carries a CE Declaration of Conformity, RoHS information dated 20250108, and a REACH declaration dated 20250108. WEEE classification notes it is not in scope, and the enclosure aligns with ETIM and eClass standards for procurement and lifecycle management, helping with audits, supplier qualification, and compliant sourcing.
Applications in modular machine control, packaging lines, and process automation benefit most. The blind door design protects wiring and components while maintaining easy access for maintenance. The kit approach supports rapid customization to match reference depths and mounting configurations, reducing installation time and enabling scalable line expansions.
The enclosure reduces field customization time thanks to its kit configuration and standardized dimensions. Regulatory compliance (CE, RoHS, REACH) lowers risk of non-compliance penalties, while accessible manuals and ETIM/eClass classifications streamline procurement and maintenance planning. Overall, expect shorter project lead times, fewer reworks, and smoother upgrades across evolving automation environments.
