ABB EC2261K Other doors - RoHS CE compliant 2025
Part Number: EC2261K
Quick Summary
The ABB EC2261K enclosure door enables robust control-panel access in manufacturing automation and electrical cabinets. Engineers often face delays from misaligned, poorly finished doors or packages that aren’t ready for installation. Key certifications such as CE conformity, RoHS compliance (20250108), and REACH information ensure regulatory readiness across global projects. This enclosure is designed for IS2 Enclosures Catalogue compatibility and seamless integration with standard ABB enclosures, delivering faster deployment and reduced field adjustments. By pre-assembling and using a single kit, installation costs drop, change orders shrink, and maintenance planning becomes straightforward for panel builders and integrators. The combination of pre-assembled components and standardized finishes also minimizes on-site workmanship risk.
Product Information
Extended Description
EC2261K ABB: Blind side door 2200x600mm (HxD)
Accessory Type
3. Other doors
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
1. Blind side door
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
16.520 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
16.860 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Pre-assembled mounting kit and a single-door design streamline installation. The kit reduces field labor hours and eliminates misalignment risk, delivering faster project turnarounds. This configuration aligns with standard ABB enclosures, enabling plug-and-play compatibility for panel builders. The result is predictable lead times and lower commissioning costs, making it ideal for control panels and automation cabinets in manufacturing environments. Pickled steel sheet construction with Orange Peel finish in RAL 7035 provides durable protection and a consistent appearance, reducing maintenance cycles and rework while supporting professional, audit-ready aesthetics across sites. The 594 mm net width, 2196 mm net height, and 46 mm net depth along with a 16.520 kg weight enable flexible sizing, while reference widths from 400 mm to 1200 mm allow multi-bay configurations with minimal stock variety. A Blind side door option adds versatility for service access and space-constrained installations. CE, RoHS, and REACH declarations, plus WEEE classification, underpin regulatory certainty and responsible sourcing for global deployments. Documentation aligned to ETIM EC000747 and IS2 Enclosures Catalogue 2024 enhances data-driven procurement and interoperability. The combination of standardized finishes, robust materials, and clear installation guides supports fast onboarding for panel builders and maintenance teams.
Get a Quick Quote for a ABB EC2261K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2261K?
Enquire Now
FAQs

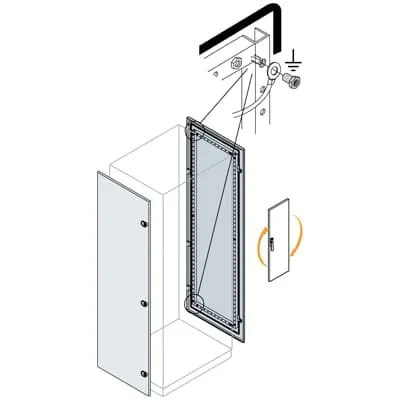

Installing the EC2261K is straightforward thanks to the pre-assembled kit and a single-door design. Start by aligning the door with the enclosure frame, secure the pre-installed mounting points, and confirm clearance for the Blind side door option. The system is aligned with IS2 enclosure practices, reducing guesswork and ensuring consistent fit across locations.
Key dimensions include a 594 mm net width, 2196 mm net height, and 46 mm net depth, with a net weight of 16.520 kg. The door surface is Orange Peel finished in RAL 7035 and the material is pickled steel sheet. The design accommodates 400 mm to 1200 mm reference widths and a Blind side door option for added versatility.
Yes. EC2261K carries CE conformity with the IS2 declaration, and RoHS information dated 20250108. REACH declaration dated 20250108 confirms that no substances above 0.1 mass percent are present beyond regulatory limits. The WEEE classification indicates no active obligation under that scope, and the product references ETIM EC000747 to assure compatibility with industry data standards.
EC2261K is well suited for control panels and automation cabinets in manufacturing and process industries, where reliable access and standardized finishes are essential. Its pre-assembled kit and consistent RAL 7035 orange-peel appearance help maintain audits and customer branding. It supports IS2 enclosure ecosystems and ETIM data for procurement systems, making it a practical choice for multi-site deployments.
Comprehensive documentation accompanies EC2261K, including the IS2 Enclosures Technical Catalogue 2024, installation manual 1STM604121R0006, and CE declaration of conformity. The ETIM EC000747 classification and eClass data enrich BOMs and maintenance planning. For questions or technical support, users can reference these sources to confirm compatibility, material declarations, and installation steps.
